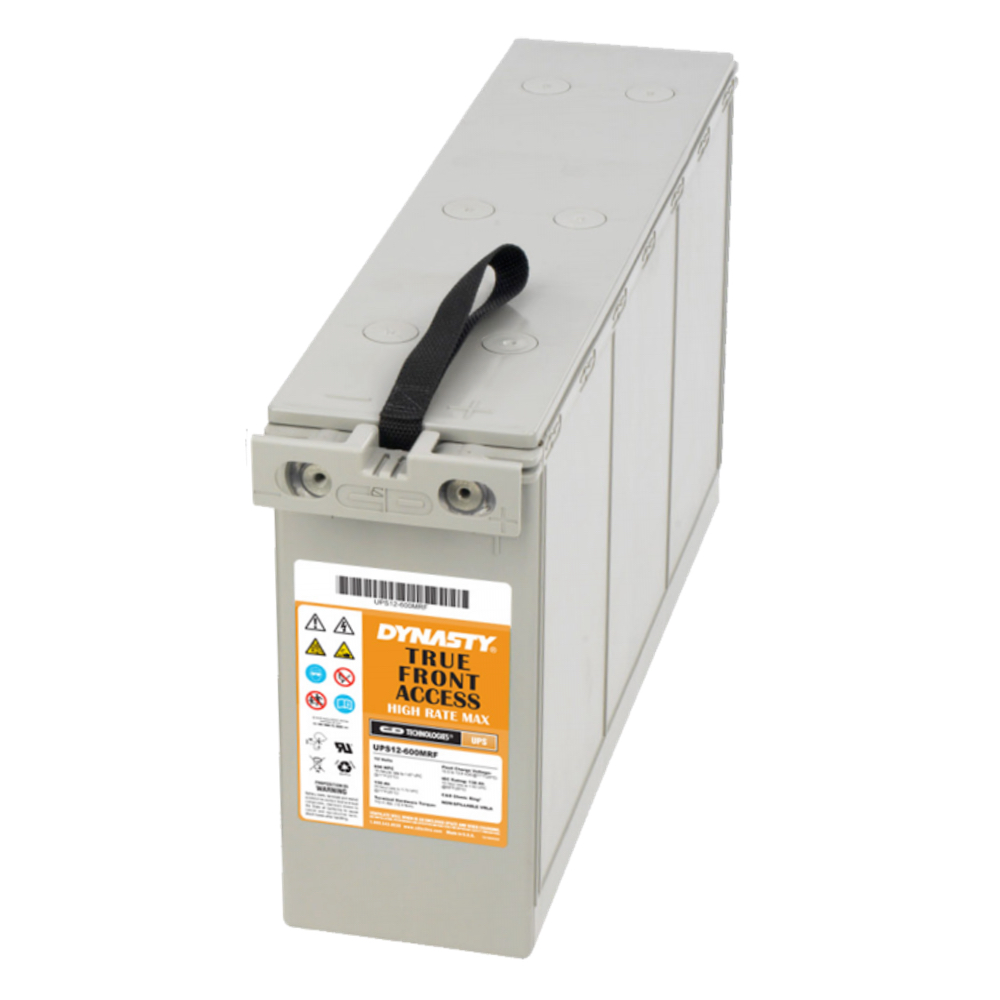

C&D UPS12-615MRF Battery
C&D UPS12-615MRF Battery
C&D Dynasty UPS12-615MRF Battery - 12V 172.2 Ah High Rate Max Front Access AGM
Warranty
Front Access on a 4.92 Inch Case
- Front terminal, M8 insert at 160 in-lbs - 18 N-m, against 3,700 amps short-circuit current at 0.1 second and 0.0034 ohms reference impedance at 60 Hz.
- Absorbent glass mat with 99% recombination - sealed construction with no electrolyte to top up, which is what makes a closed front-access cabinet workable.
- UL94-V2 case and cover - flame retardant polypropylene, thermally welded case to cover, on a UL-recognized component.
- Standards C&D lists for the MRF - UL1778, UL 924, UL 1989 and UL 94 V-2, alongside BS6290-4 and IEC-896-2.
- Cleared for every transport mode - IATA and ICAO Special Provisions A67 by air, DOT-CFR Title 49 parts 171-189 by road, IMDG Amendment 27 by sea.
Technical Specifications
| C&D UPS12-615MRF Specifications | |
|---|---|
| Part Number | UPS12-615MRF (also searched as UPS12 615MRF, UPS12615MRF; the F denotes the front-access case; sold under the C&D Dynasty brand) |
| Series | UPS High Rate Max Front Access (MRF), retired by C&D |
| Battery Type | AGM, valve regulated lead acid (VRLA), high rate, front terminal |
| Nominal Voltage | 12V (6 cells per unit) |
| Nominal Capacity | 172.2 Ah at the 20-hour rate to 1.75 VPC at 25°C (77°F) |
| Watts Per Cell | 615 W per cell at the 15-minute rate to 1.67 VPC at 77°F |
| Constant Power to 1.75 VPC | 973.6 W/cell at 5 min, 731.7 at 10 min, 583 at 15 min, 494.2 at 20 min, 386 at 30 min, 234 at 60 min, 169 at 90 min |
| Constant Power to 1.67 VPC | 1,027.1 W/cell at 5 min, 771.8 at 10 min, 615 at 15 min, 513.8 at 20 min, 392.5 at 30 min, 237.8 at 60 min, 171.5 at 90 min |
| Terminal Type | Front terminal, threaded insert, M8 |
| Terminal Torque | 160 in-lbs (18 N-m) |
| Length | 22.01 inches (559 mm) |
| Width | 4.92 inches (125 mm) |
| Height | 10.97 inches (278.7 mm), case top and over terminals |
| Weight | 121.7 lbs (55.2 kg) |
| Short Circuit Current | 3,700 A at 0.1 second |
| Impedance | 0.0034 ohms at 60 Hz (reference figure; C&D recommends individual baselines) |
| Design Life | 10 year design life at 25°C (C&D) |
| Warranty | 3 years at 25°C (77°F) (C&D Form 41-9027, UPS High Rate Max series) |
| Minimum Order | 4 units |
Where This Battery Is Used
- Front-access UPS cabinets - shelves where the door is the only approach and nothing can be reached from behind.
- Banks and financial institutions - trading floor and settlement plant on a string that gets inspected in place.
- Internet housing sites - suites where floor area is billed and a 4.92 inch case buys back rack depth.
Ordering and Freight
Frequently Asked Questions
What capacity does C&D publish for the UPS12-615MRF?
172.2 Ah at the 20-hour rate to 1.75 volts per cell at 25°C. Listings across the trade, our own included until this rebuild, have carried 176 Ah for this part, and C&D's technical data table does not support it. The gap is small in absolute terms and it matters on a string sizing worksheet, because a series string carries one block's amp-hour rating: size a 480 VDC string on 176 Ah and every block in it is 3.8 Ah short of the assumption.
What torque do the M8 front inserts take?
160 in-lbs, which is 18 N-m, on every front-terminal High Rate Max block. That is well above the 110 in-lbs the top-terminal models take on their 1/4-20 UNC inserts, so a crew moving from a top-post string to an MRF string needs the torque wrench reset before the first connection. Prepare the lead faces with a brass brush and an antioxidant grease first.
How does the 615MRF compare with the top-terminal UPS12-600MR?
On the fifteen-minute rate they are close, 615 watts per cell against 601 to the same 1.67 VPC end point. Everything else differs. The 615MRF holds 172.2 Ah against 147, weighs 121.7 lbs against 109, and puts its terminals on the face of a 22.01 by 4.92 inch case instead of on top of a 13.57 by 6.80 one. Short-circuit current runs the other way: 3,700 amps against 6,448.
Will a UPS12-615MRF fit a standard front-access shelf?
The case is 4.92 inches wide and 22.01 inches deep, with 10.97 inches of height and no terminal projection above the cover. Allow half an inch between units for cable alignment and convection, per C&D's installation guide, which puts four units across at roughly 21.2 inches of tier width. Confirm the shelf depth rating against 121.7 lbs a block before ordering.
Send the quantity, your delivery ZIP and your requested-by date. A specialist confirms availability, the warranty term, volume pricing and freight in writing, with no obligation to buy.
