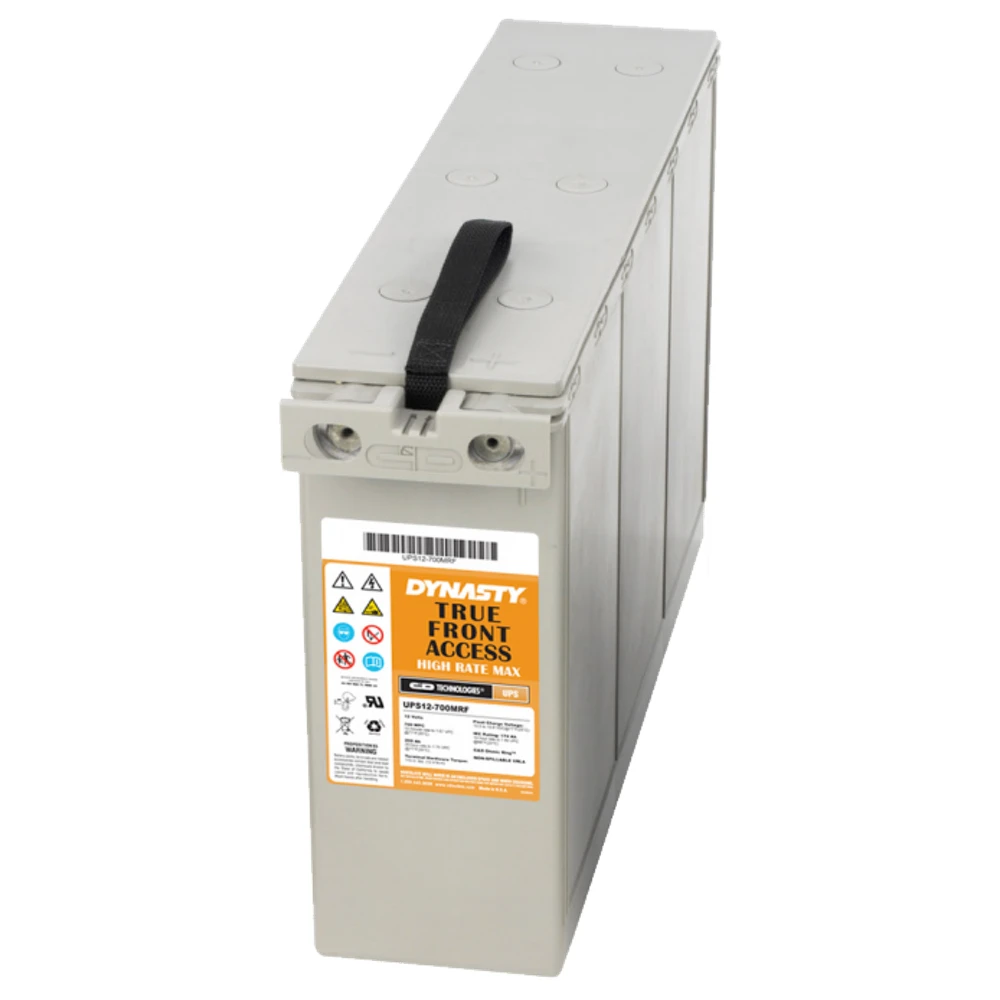

C&D UPS12-700MRF Battery
C&D UPS12-700MRF Battery
C&D Dynasty UPS12-700MRF Battery - 12V 201.4 Ah High Rate Max Front Access AGM
Warranty
The Middle Front-Access Block
- Front terminal, M8 insert at 160 in-lbs - 18 N-m, against 4,400 amps short-circuit current at 0.1 second and 0.0028 ohms reference impedance at 60 Hz.
- Patented Long Life Alloy grid - C&D's low-calcium alloy, which slows grid growth and reduces gassing across a ten-year float.
- UL-recognized component - meeting UL1778, UL 924, UL 1989 and UL 94 V-2, with BS6290-4 and IEC-896-2 also listed on the sheet.
- Patented flame-arresting vent per cell - six UL-recognized valves, in a UL94-V2 polypropylene case thermally welded to its cover.
- Float charge voltage 13.65 ± 0.15 VDC - average per 12V unit, with the individual-block window running 13.3 to 14.5 volts once the string has floated 24 hours.
Technical Specifications
| C&D UPS12-700MRF Specifications | |
|---|---|
| Part Number | UPS12-700MRF (also searched as UPS12 700MRF, UPS12700MRF; the F denotes the front-access case; sold under the C&D Dynasty brand) |
| Series | UPS High Rate Max Front Access (MRF), retired by C&D, replaced by UPS12-705PLPF |
| Battery Type | AGM, valve regulated lead acid (VRLA), high rate, front terminal |
| Nominal Voltage | 12V (6 cells per unit) |
| Nominal Capacity | 201.4 Ah at the 20-hour rate to 1.75 VPC at 25°C (77°F) |
| Watts Per Cell | 700 W per cell at the 15-minute rate to 1.67 VPC at 77°F |
| Constant Power to 1.75 VPC | 1,020.6 W/cell at 5 min, 780 at 10 min, 630 at 15 min, 544.1 at 20 min, 437 at 30 min, 271.5 at 60 min, 196.5 at 90 min |
| Constant Power to 1.67 VPC | 1,117.8 W/cell at 5 min, 866 at 10 min, 700 at 15 min, 583 at 20 min, 453 at 30 min, 274.7 at 60 min, 199.3 at 90 min |
| Terminal Type | Front terminal, threaded insert, M8 |
| Terminal Torque | 160 in-lbs (18 N-m) |
| Length | 22.01 inches (559 mm) |
| Width | 4.92 inches (125 mm) |
| Height | 12.68 inches (322.1 mm), case top and over terminals |
| Weight | 143.1 lbs (64.9 kg) |
| Short Circuit Current | 4,400 A at 0.1 second |
| Impedance | 0.0028 ohms at 60 Hz (reference figure; C&D recommends individual baselines) |
| Design Life | 10 year design life at 25°C (C&D) |
| Warranty | 3 years at 25°C (77°F) (C&D Form 41-9027, UPS High Rate Max series) |
| Minimum Order | 4 units |
Where This Battery Is Used
- Network operations centers on front-access racks - strings maintained entirely from the aisle, with no rear clearance to reserve.
- Semiconductor manufacturing - fab support power where the cabinet row is boxed in by process equipment.
- Hospitals and testing laboratories - inspected standby plant in rooms where a rear-access aisle was never built.
Ordering and Freight
Frequently Asked Questions
What capacity should a UPS12-700MRF string be sized on?
201.4 Ah at the 20-hour rate to 1.75 volts per cell at 25°C, which is C&D's published figure. Distributor listings for this part, ours among them, have long shown 206 Ah. A series string carries one block's amp-hour rating, so the 4.6 Ah difference does not multiply across forty blocks; it comes off every discharge the plant was sized for. Use 201.4 and check the watt column as well.
What does the 700MRF deliver on a five-minute discharge?
1,020.6 watts per cell to 1.75 volts per cell, or 1,117.8 to 1.67, at 77°F. That is 6,124 watts from one block at the 1.75 end point. The short columns are where a front-access high-rate block earns its place, and C&D publishes ten of them for this model from 5 minutes out to 90.
Can two UPS12-700MRF strings run in parallel?
Yes, and C&D is specific about how. Cable each string separately to a common junction point rather than daisy chaining them, give each string its own fuse, breaker or disconnect ahead of that junction, and confirm the open circuit voltages of the two strings are within 1 VDC of each other before you make the parallel connection. That last check is what keeps one string from dumping into the other at closure.
Is the 700MRF covered by C&D's rack installation manual?
Yes, with a caveat about the manual itself. 41-7525 gives its scope twice and the two do not agree: the cover says 26 to 206 ampere-hours, the general information page says 25 through 200. The 700MRF's 201.4 Ah sits inside one and just outside the other. The guide covers numbering, interunit and intertier cabling, the pre-operational checks, the freshening charge and the initial float, and it is the right document for an open-rack install. The 254 Ah UPS12-1000MRF is above both figures, so treat that one as a cabinet-system install and ask for the drawing.
Send the quantity, your delivery ZIP and your requested-by date. A specialist confirms availability, the warranty term, volume pricing and freight in writing, with no obligation to buy.
