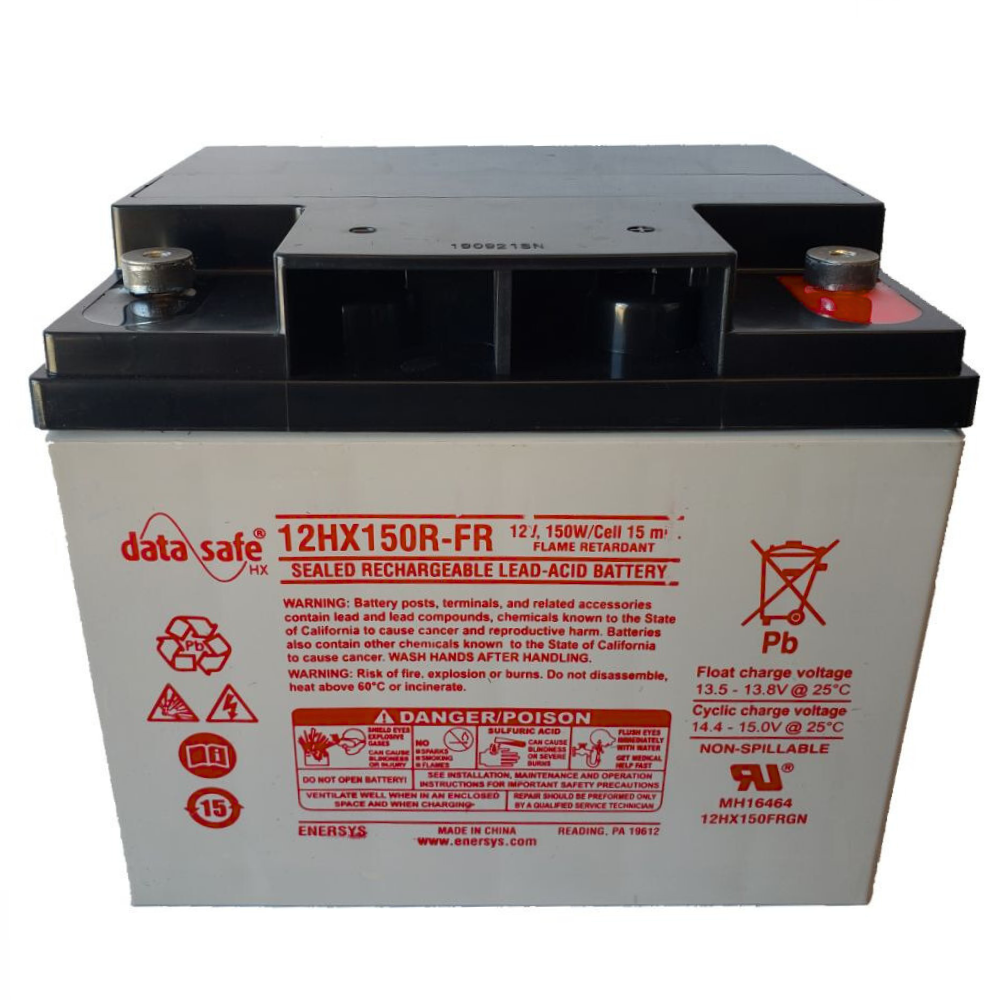

EnerSys DataSafe 12HX150-FR 12V 160W UPS Battery - Maximum Power VRLA

$165.00
SKU: 12HX150
Availability: Shipping Lead Time is 24 to 48 Hours
Minimum Purchase: 6 units
Shipping: Free shipping on orders $75 and up
Voltage: 12
Capacity: 38 AH
Chemistry: AGM
Terminal: Threaded Insert
Features: High-Rate Discharge
EnerSys DataSafe 12HX150-FR 12V 160W UPS Battery - Maximum Power VRLA

EnerSys DataSafe 12HX150-FR 12V 160W UPS Battery - Maximum Power VRLA

$165.00
Adding to cart… The item has been added



EnerSys DataSafe 12HX150-FR 12V 160W UPS Battery - Maximum Power VRLA

Maximum power UPS protection at exceptional value. As battery specialists since 2010, we deliver competitive pricing on the EnerSys DataSafe 12HX150-FR - the highest power battery in the HX series. This 12V 160W battery provides unmatched 15-minute backup power for the most demanding UPS systems. Featuring UL94 flame retardant construction, dual terminal options, and 10-year design life, get guaranteed compatibility with enterprise-critical infrastructure at unbeatable value.

Why Customers Choose DataSafe 12HX150-FR: Computer-optimized electrochemistry delivers 160W at 15-minute rate - highest in HX series. UL1778 compliant flame retardant case ensures safety. AGM technology provides 100% initial capacity with zero maintenance. Massive 2400A short circuit current for extreme demands. 10-year design life with bolt/faston terminals - trusted by battery specialists since 2010.

UL Listed

MH16464

160W Power

HX Maximum

Battery Specialist

Since 2010

2400A Current

Extreme power

Quick Specifications

Replaces: HX150, HX150-E, 12HX150, 12HX150-E

Specifications: 12V, 38Ah @ 8hr rate, 160W @ 15min rate, Sealed Lead Acid VRLA

Dimensions: 7.8" × 6.5" × 6.7" (197mm × 165mm × 170mm)

Average Lifespan: 10-year design life in float service at 77°F

Compatibility: Maximum-demand UPS systems, enterprise data centers, mission-critical infrastructure

Exceptional Value & Performance

160W
Maximum Rate

HX series leader

2400A
Short Circuit

Extreme current

38Ah
Capacity

Maximum runtime

5.0mΩ
Ultra-Low

Internal resistance

Professional UPS Battery Features

  • Maximum High-Rate Power: 160W @ 15-minute rate - highest in HX series
  • UL1778 Compliant: Flame retardant case and cover meet strict UL standards
  • Extreme Current Capability: 2400A short circuit current for most demanding loads
  • AGM Technology: Absorbed Glass Mat separator for spill-proof operation
  • Dual Terminal Options: Bolt terminals and faston tabs for maximum flexibility

What's Included:

  • • EnerSys DataSafe 12HX150-FR VRLA Battery
  • • Dual Terminal Configuration (Bolt + Faston, Layout D)
  • • Professional Installation Guide
  • • Safety Data Sheet

Clearly Specified Technical Details

DataSafe 12HX150-FR Complete Specifications
Model Number 12HX150-FR (Also known as HX150, HX150-E, 12HX150, 12HX150-E)
Chemistry Valve Regulated Lead Acid (VRLA), AGM
Nominal Voltage 12 Volts
Capacity @ 8hr Rate 38 Ah to 1.75 VPC @ 77°F (25°C)
Power @ 15min Rate 160 Watts to 1.67 VPC @ 77°F (25°C)
Terminal Type Dual - Bolt Terminal + Faston Tabs (Layout D)
Length 7.8 inches (197 mm)
Width 6.5 inches (165 mm)
Height 6.7 inches (170 mm)
Weight 32.0 lbs (14.5 kg)
Internal Resistance 5.0 mΩ
Short Circuit Current 2400 Amps
Operating Temperature -4°F to 122°F (-20°C to 50°C)
Float Voltage 2.25-2.28 VPC @ 77°F (25°C)
Design Life 10 Years @ 77°F (25°C)
UL Listing File No. MH16464

No Assembly

Ready to install
Dual terminals

Spill-Proof

AGM sealed
Non-spillable certified

⚙️

Maintenance-Free

VRLA technology
No water needed

Advanced VRLA Construction Features

Professional-Grade AGM Technology

  • Absorbed Glass Mat Separator: Complete electrolyte absorption for spill-proof operation
  • High-Performance Positive Plates: Maximum corrosion resistance for extended life
  • Dual Welded/Epoxy Seal: Long-life reliability in extreme conditions
  • Ultra-Low Internal Resistance: 5.0 mΩ for maximum power delivery

Safety & Compliance Features

  • UL94 Flame Retardant: Case and cover meet UL1778 requirements
  • Self-Resealing Vents: Flame-arresting design prevents oxygen ingress
  • ISO Certified Manufacturing: ISO 9001:2008 and ISO 14001:2004
  • Non-Hazardous Shipping: IATA Special Provision A67 and 49 CFR approved

Value Comparison: DataSafe vs. Standard UPS Batteries

FeatureDataSafe 12HX150-FRStandard UPS Batteries
High-Rate Performance 160W @ 15-minute rate Limited high-rate capacity
Current Delivery 2400A short circuit Lower current capability
Internal Resistance 5.0 mΩ ultra-low Higher resistance
Terminal Options Dual bolt + faston Single terminal type
Safety Certification UL1778 flame retardant Basic safety features
Design Life 10 years @ 77°F 3-5 years typical

Installation & Charging Requirements

The DataSafe 12HX150-FR is engineered for mission-critical UPS installations demanding maximum power. For optimal performance:

  • Float Voltage: Maintain 2.25-2.28 VPC at 77°F (25°C)
  • Temperature Range: -4°F to 122°F (-20°C to 50°C) operating
  • Storage: Can be stored up to 6 months at 77°F before freshening charge
  • High Current Recharge: Safely accepts high current rates for fast recovery

For professional UPS chargers, explore our 12V charger selection.

Guaranteed Compatibility & Applications

Direct Replacement For:

  • EnerSys HX150, HX150-E, 12HX150, 12HX150-E
  • Maximum-demand UPS systems requiring 12V 160W @ 15-minute rate
  • Mission-critical data center infrastructure
  • Enterprise server farms and colocation facilities
  • Telecom central office systems

Ideal Applications:

  • Mission-Critical UPS: Maximum power for zero-downtime operations
  • Data Centers: Tier 3 and Tier 4 facility backup power
  • Financial Services: Trading floors and banking infrastructure
  • Healthcare: Life support and critical care systems
  • Government: Emergency operations and defense systems
?

Secure Checkout

SSL Encrypted • PCI Compliant

Frequently Asked Questions

Q: What battery replaces the EnerSys DataSafe 12HX150-FR?
A: The 12HX150-FR is also known as HX150, HX150-E, 12HX150, and 12HX150-E. It's the highest power battery in the HX series, delivering 160W @ 15-minute rate for maximum-demand UPS applications.

Q: Which UPS systems use the DataSafe 12HX150-FR battery?
A: This maximum-power battery is designed for mission-critical enterprise UPS systems, Tier 3/4 data centers, and infrastructure requiring the highest available 160W performance with 2400A current capability.

Q: How long does the DataSafe 12HX150-FR last in service?
A: The 12HX150-FR has a 10-year design life in float service at 77°F (25°C). Actual life varies based on temperature, discharge depth, and maintenance practices.

Q: What are the exact dimensions of the DataSafe 12HX150-FR?
A: The battery measures 7.8" L × 6.5" W × 6.7" H (197mm × 165mm × 170mm) and weighs 32.0 lbs (14.5 kg), with dual terminal configuration for maximum installation flexibility.

Q: Why is the 12HX150-FR the top choice for critical applications?
A: With 160W power (highest in HX series), 2400A short circuit current, and ultra-low 5.0 mΩ internal resistance, the 12HX150-FR delivers unmatched performance for zero-downtime mission-critical systems.

Why Choose Tech Battery Solutions

Battery Specialists Since 2010

With extensive experience in mission-critical UPS solutions, we understand the zero-tolerance requirements of enterprise infrastructure. Our partnership with EnerSys ensures you receive genuine DataSafe products with full manufacturer specifications.

Expert Support & Fast Shipping

The DataSafe 12HX150-FR ships from our warehouse with tracking provided. Need help with mission-critical deployments? Our specialists can assist with bulk orders and help design your failover power architecture.

Maximum Power for Mission-Critical Operations

The EnerSys DataSafe 12HX150-FR delivers the ultimate in UPS power - 160W high-rate performance with massive 2400A current capability. As the most powerful battery in the HX series, it features UL1778 flame retardant construction, ultra-low 5.0 mΩ internal resistance, and 10-year design life for zero-downtime operations. As battery specialists since 2010, we guarantee compatibility and provide expert support for your mission-critical power needs.

Free Shipping Available
30-Day Returns
Expert Support
Order Your DataSafe 12HX150-FR Today
