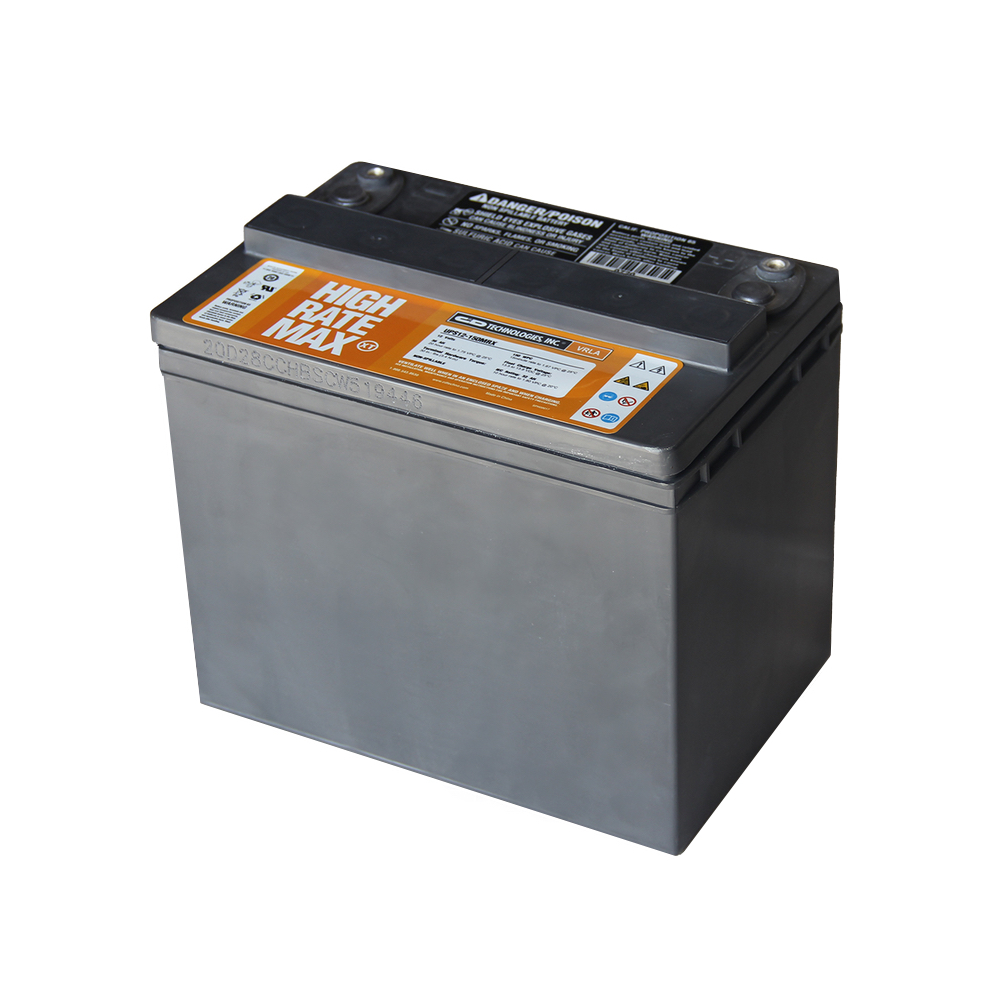

C&D Technologies UPS12-150MR Battery
C&D Technologies UPS12-150MR Battery
C&D Dynasty UPS12-150MR Battery - 12V 34.6 Ah High Rate Max AGM
Warranty
Where the 150MR Sits
- Case and cover to UL94-V2 - flame retardant polypropylene, bonded case to cover by thermal weld so there is no seam to seep.
- Top terminal, 10-32 UNF at 30 in-lbs - C&D's figure for this block, with 2,500 amps short-circuit current at 0.1 second.
- Mounts in any orientation - C&D recommends upright, side or end mounting, which opens up shallow cabinets that cannot take a block standing up.
- Non-hazardous for surface transport - classified outside DOT-CFR Title 49 parts 171-189 restrictions, and outside IMDG Amendment 27 for water transport.
- Standards C&D lists for the series - UL1778, UL 924, UL 1989, UL 94 V-2, BS6290-4 and IEC-896-2, on a UL-recognized component.
Technical Specifications
| C&D UPS12-150MR Specifications | |
|---|---|
| Part Number | UPS12-150MR (also searched as UPS12 150MR, UPS12150MR; sold under the C&D Dynasty brand) |
| Series | UPS High Rate Max (MR), retired by C&D |
| Battery Type | AGM, valve regulated lead acid (VRLA), high rate |
| Nominal Voltage | 12V (6 cells per unit) |
| Nominal Capacity | 34.6 Ah at the 20-hour rate to 1.75 VPC at 25°C (77°F) |
| Watts Per Cell | 148 W per cell at the 15-minute rate to 1.67 VPC at 77°F |
| Constant Power to 1.75 VPC | 273 W/cell at 5 min, 182 at 10 min, 140 at 15 min, 115 at 20 min, 85.7 at 30 min, 49.7 at 60 min, 35 at 90 min |
| Constant Power to 1.67 VPC | 290 W/cell at 5 min, 193 at 10 min, 148 at 15 min, 120 at 20 min, 88.9 at 30 min, 51.1 at 60 min, 36.1 at 90 min |
| Terminal Type | Top terminal, threaded insert, 10-32 UNF |
| Terminal Torque | 30 in-lbs (4.5 N-m) |
| Length | 7.76 inches (197.1 mm) |
| Width | 5.19 inches (131.9 mm) |
| Height | 6.52 inches to case top (165.7 mm) |
| Total Height | 6.80 inches over terminals (172.7 mm) |
| Weight | 27.3 lbs (12.4 kg) |
| Short Circuit Current | 2,500 A at 0.1 second |
| Impedance | 0.006 ohms at 60 Hz (C&D publishes this for reference; take your own baseline) |
| Design Life | 10 year design life at 25°C (C&D) |
| Warranty | 3 years at 25°C (77°F) (C&D Form 41-9027, UPS High Rate Max series) |
| Minimum Order | 4 units |
Where This Battery Is Used
- Network operations centers - edge racks and monitoring gear that has to stay up while the main plant transfers.
- Wall-mount and shallow UPS enclosures - the 5.19 inch width and the any-orientation mounting cover cabinets a taller block will not enter.
- Industrial process control - orderly-shutdown power on lines that cost more to restart than to hold up.
Ordering and Freight
Frequently Asked Questions
What capacity does C&D publish for the UPS12-150MR?
34.6 Ah at the 20-hour rate to 1.75 VPC at 25°C (77°F). Older listings for this part carried a voltage, a chemistry and a terminal type with the capacity column left blank, and some rounded it to 34. C&D's technical data table prints 34.6, and the constant-power table prints 148 watts per cell at 15 minutes alongside it. Size against whichever of the two your UPS vendor's worksheet asks for.
What does the UPS12-150MR hold over a 30-minute discharge?
85.7 watts per cell to 1.75 volts per cell, or 88.9 to 1.67 VPC, at 77°F. Across a 48V string of four that is roughly 2,056 watts for half an hour to the 1.75 end point. The table also publishes 40, 45, 50 and 90 minute columns, so a runtime between the headline points can be read off the sheet rather than interpolated by eye.
Is the UPS12-150MR cleared for air freight?
Yes. C&D classifies the High Rate Max blocks as not restricted for air transport under IATA and ICAO Special Provisions A67, not restricted for surface transport under DOT-CFR Title 49 parts 171-189, and not restricted for water transport under IMDG Amendment 27. In practice a four-unit order still ships LTL, because freight cost, not classification, is what decides the mode at 27.3 lbs a block.
How does the 150MR differ from the 100MR on the shelf?
It is 1.22 inches longer, 0.02 inches wider and 0.06 inches shorter over the terminals: 7.76 by 5.19 by 6.80 against 6.54 by 5.17 by 6.86. So a tray cut for the 100MR takes the 150MR in height and width but needs the extra length. The step buys 8.6 Ah and 57 more watts per cell at 15 minutes.
Send the quantity, your delivery ZIP and your requested-by date. A specialist confirms availability, the warranty term, volume pricing and freight in writing, with no obligation to buy.
