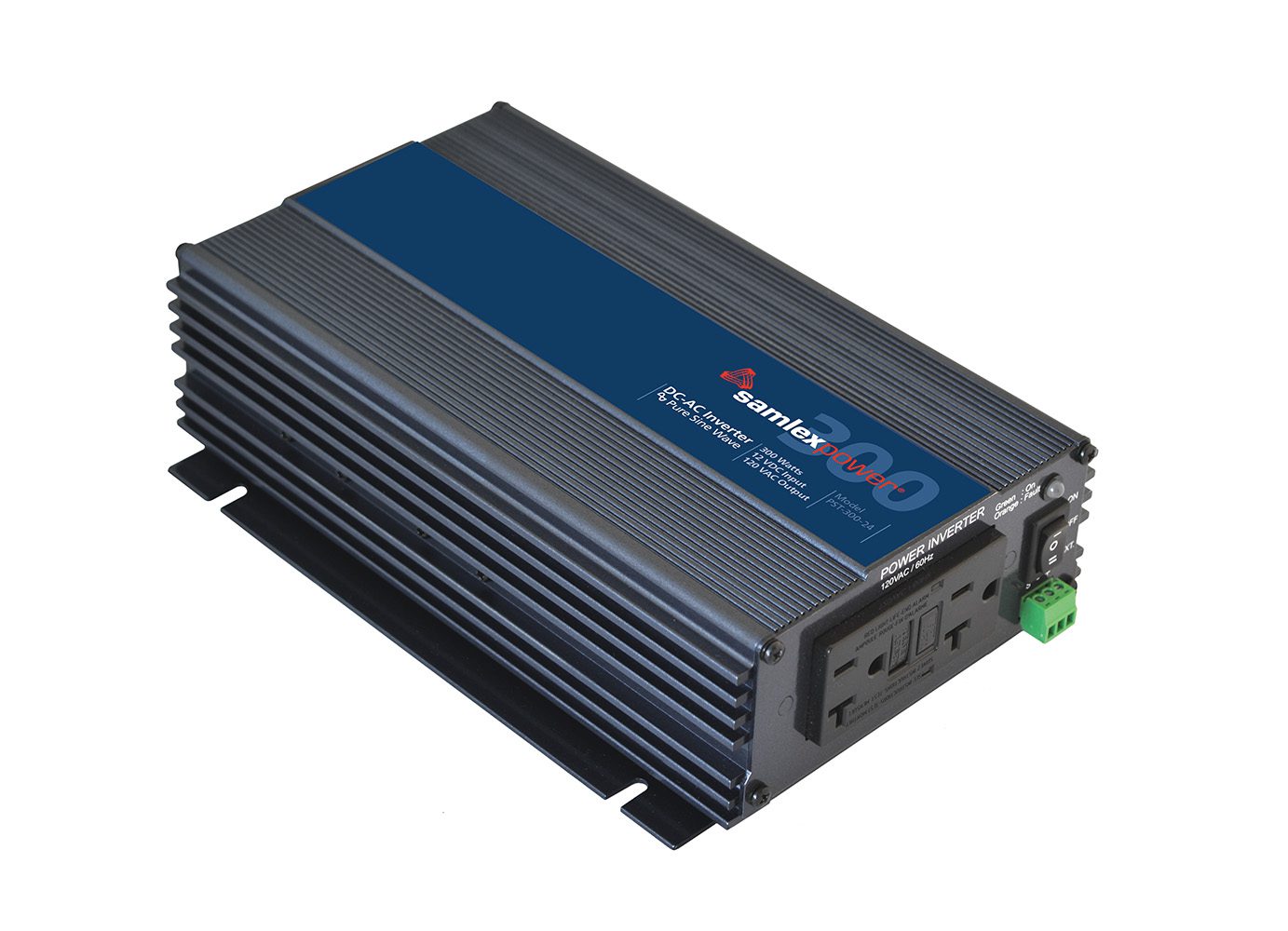

Samlex PST-300-24 300 watt 24V pure sine wave inverter
PST-300-24 front panel with GFCI duplex outlets
PST-300-24 rear panel with DC terminals and fan
Top view of the compact Samlex PST-300-24 inverter
Samlex PST-300-24 300 watt 24V pure sine wave inverter
PST-300-24 front panel with GFCI duplex outlets
PST-300-24 rear panel with DC terminals and fan
Top view of the compact Samlex PST-300-24 inverter

  • Free Shipping

    Orders $75 & Up

  • 30-day Money Back

    Guarantee*

  • 100% Secure Online Shopping

    SSL - Verified Merchant

Samlex PST-300-24 300 Watt Pure Sine Wave Inverter, 24V, Battery Clamps + Socket Plug Included

$342.10
$274.00
(You save $68.10 )
SKU: PST-300-24
Availability: Usually ships in 24 hours
Shipping: Free shipping on orders $75 and up
Input Voltage: 24 VDC
Output: 120 VAC Pure Sine Wave
Continuous Power: 300 W
Surge Power: 500 W
AC Outlets: NEMA 5-20R GFCI Duplex
Included Cables: Battery Clamps + Accessory Socket Plug
Samlex PST-300-24 300 Watt Pure Sine Wave Inverter, 24V, Battery Clamps + Socket Plug Included

Samlex PST-300-24 300 Watt Pure Sine Wave Inverter, 24V, Battery Clamps + Socket Plug Included

$342.10
$274.00
(You save $68.10 )
Adding to cart… The item has been added
Description

Samlex PST-300-24 - 300W 24V Pure Sine Wave Inverter, Cables Included

Operators of 24 volt machines carry the same laptops and chargers as everyone else; they just have fewer inverters to choose from. The Samlex PST-300-24 is a 24V 300 watt inverter built for that gap: true sine wave 120VAC from a ground-fault protected duplex outlet, a 20 amp maximum draw the machine will never notice, and both connection cables, battery clamps and accessory-socket plug, in the box. It weighs 3.46 pounds and lives wherever the operator does.

Warranty

Warranty. Samlex America warrants the PST-300-24 for 3 years. Full terms are confirmed in writing with your quote.

Pocket-Scale Power for 24V Systems

Rare at this voltage
Small pure sine inverters for 24 volt systems are thin on the ground; this one brings the full PST protection set to the operator's cab.
Connected two ways
Clamp straight to the batteries for full output, or use the included socket-plug lead for grab-and-go duty.
89% peak efficiency
The most efficient conversion in the small PST class, with under 400 milliamps of idle draw on the 24V side.
  • True sine wave output, under 3% distortion, regulated to 120 VAC within 3 percent.
  • Universal Protection Circuit with LED indicators: voltage extremes, overload, short circuit, over-temperature.
  • Remote on/off input for ignition or switch control in fixed installs.
  • ETL listed to UL 458 and CSA C22.2 No. 107.1; FCC Part 15(B) Class B.

Technical Specifications

Samlex PST-300-24 Specifications
Part NumberPST-300-24 (also searched as PST 300 24, PST300-24, PST 300)
Output WaveformPure sine wave, under 3% THD
Continuous Power300 W
Surge Power500 W (under 8 ms)
Maximum Output Current2.54 A
AC Output120 VAC ±3%, 60 Hz ±1%; NEMA 5-20R GFCI duplex receptacle
DC Input Voltage24 VDC nominal, 21 - 33 VDC operating range
DC Input Current20 A maximum; under 400 mA at no load
DC CablesDetachable battery-clamp cable and accessory-socket plug cable, both included
Peak Efficiency89%
ProtectionsLow voltage alarm 21 V, shutdown 20 V (auto reset 23 V); high voltage shutdown 33 V; overload, short circuit, over-temperature (auto reset); ground fault on GFCI outlets; reverse polarity (internal fuse)
Remote ControlRemote on/off input (ignition or external switch)
CoolingTemperature-controlled fan
Operating Temperature-4°F to 104°F (-20°C to 40°C)
Dimensions6.1 x 9.69 x 2.58 inches (155 x 246 x 65.5 mm)
Weight3.46 lbs (1.57 kg)
StandardsETL listed to UL 458 and CSA C22.2 No. 107.1; FCC Part 15(B) Class B
Warranty3 years (Samlex America)
Technical Documentation
PST-300-24 Product Manual (PDF) · PST-300-24 Specification Sheet (PDF)

Where This Inverter Is Used

  • Heavy equipment cabs - the operator's laptop and chargers on a 24V machine.
  • 24V trucks and buses - small electronics without a voltage dropper.
  • Field service on 24V plants - meters and instrument chargers at the site.
  • 24V emergency kits - phones and radios from the system battery.

Ordering

One box, done. Cables included, no kit required. If the loads run past small electronics, the PST-600-24 doubles the budget on the same 24V bank. Crew and kit quantities get a written quote in 24 to 48 hours with your count and ZIP.

Frequently Asked Questions

Is this the 24 volt version of the PST-300-12?

Yes: same compact chassis, same protected duplex outlet, same pair of included cables. The input window shifts to 21 to 33 VDC, the maximum draw drops to 20 amps, and peak efficiency edges up to 89 percent.

What cables come with it?

Two detachable DC leads: one with battery clamps for a direct connection, and one with a plug adapter for a vehicle accessory socket. On a 24 volt truck or machine, that socket carries the 24V this inverter expects.

What will it power from a 24V machine or truck?

The operator's electronics: a laptop, a tablet or phone charger, a small monitor or radio charger, up to 2.54 amps of AC output with a 500 watt surge allowance for switch-on. Heaters and motorized loads are out of scope at this size.

Does it need an install kit?

No. With a 20 amp maximum draw and both cables in the box, there is nothing else to buy; keep the clamp connections clean and the lead short, and it is done.

The small sine inverter 24V operators actually get.

Order online, or send your quantity and delivery ZIP and a battery specialist will confirm pricing and lead time in writing, with no obligation to buy.

Call 1-877-775-4381  ·  battery specialists, not a call center
