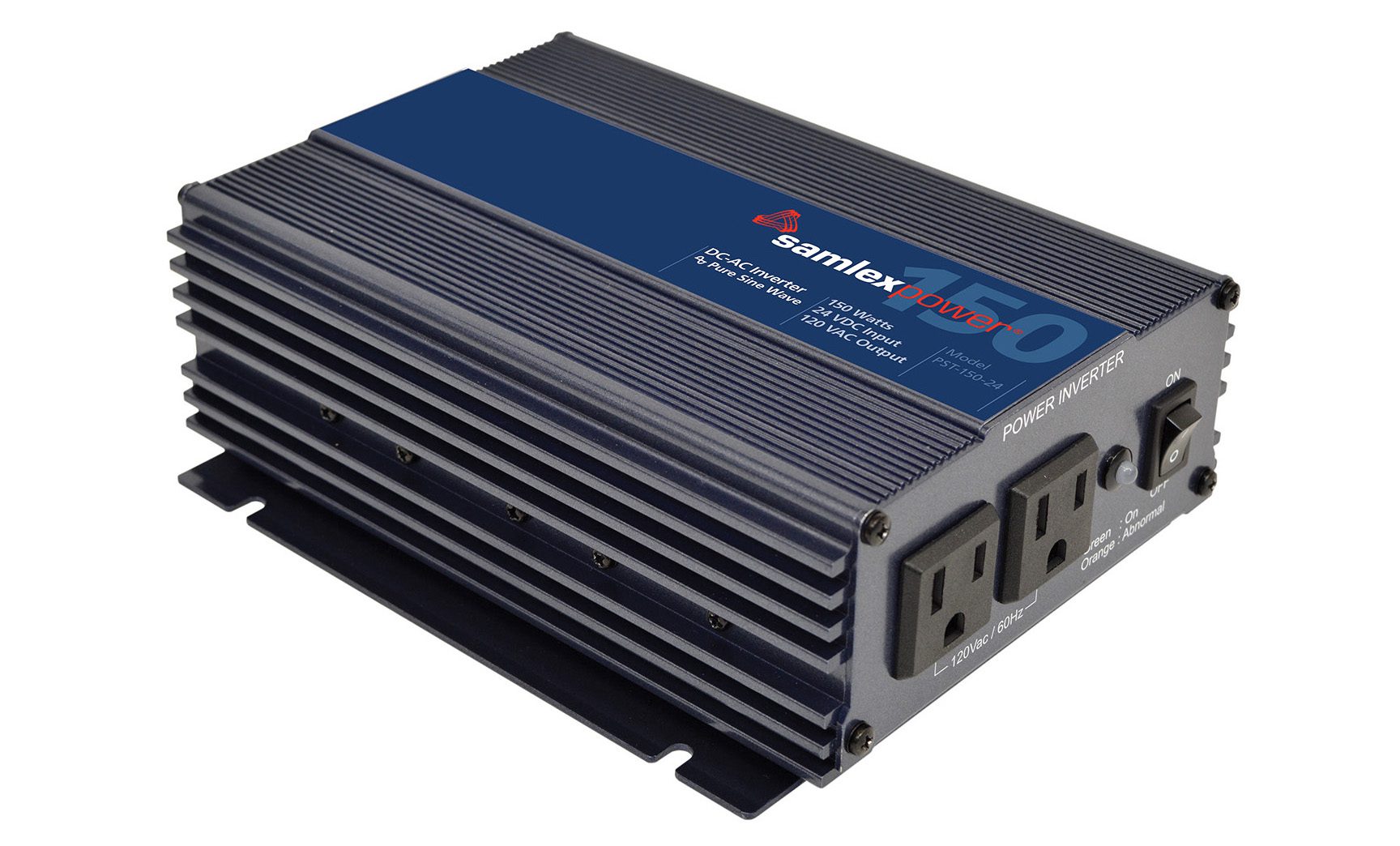

Samlex PST-150-24 150 Watt Pure Sine Wave Inverter, 24V, Battery Clamps Included

$271.00
$217.00
(You save $54.00 )
SKU: PST-150-24
Availability: Usually ships in 24 hours
Shipping: Free shipping on orders $75 and up
Input Voltage: 24 VDC
Output: 120 VAC Pure Sine Wave
Continuous Power: 150 W
Surge Power: 300 W
AC Outlets: 2 x NEMA 5-15R, Ground-Fault Protected
Included Cables: Battery Clamps
Samlex PST-150-24 150 Watt Pure Sine Wave Inverter, 24V, Battery Clamps Included

Samlex PST-150-24 150 Watt Pure Sine Wave Inverter, 24V, Battery Clamps Included

$271.00
$217.00
(You save $54.00 )
Adding to cart… The item has been added
Description

Samlex PST-150-24 - 150W 24V Pure Sine Wave Inverter, Clamp Cable Included

The smallest job on a 24 volt system still deserves a clean waveform. The Samlex PST-150-24 is a 150 watt 24V pure sine wave inverter for the charger-class loads that follow every operator around: laptop bricks, camera batteries, instrument chargers. Two ground-fault protected outlets share the output, a battery-clamp cable ships in the box, and at 2.8 pounds it stores wherever the gear bag does.

Warranty

Warranty. Samlex America warrants the PST-150-24 for 3 years. Full terms are confirmed in writing with your quote.

Charger-Class Power for 24V Rigs

10 amp footprint
Maximum draw is just 10 amps from the 24V side, protected by a single internal fuse, so the hookup is as small as the inverter.
Two protected outlets
A pair of NEMA 5-15R receptacles with ground-fault shutdown lets two chargers work at once.
89% peak efficiency
The 24 volt feed converts with less loss than its 12V twin, and idle draw stays under 400 milliamps.
  • Pure sine wave, under 3% THD; 300 watt surge (under 8 ms) for switch-on spikes.
  • Protection suite with LED indicators: low and high voltage, overload, short circuit, over-temperature.
  • Battery-clamp cable included; screw-down terminals accept fixed wiring.
  • ETL listed to UL 62368-1 and CSA C22.2 No. 62368-1; FCC Part 15(B) Class B.

Technical Specifications

Samlex PST-150-24 Specifications
Part NumberPST-150-24 (also searched as PST 150 24, PST150-24, PST 150)
Output WaveformPure sine wave, under 3% THD
Continuous Power150 W
Surge Power300 W (under 8 ms)
Maximum Output Current1.25 A
AC Output120 VAC ±3%, 60 Hz ±1%; 2 x NEMA 5-15R outlets, ground-fault protected
DC Input Voltage24 VDC nominal, 21 - 33 VDC operating range
DC Input Current10 A maximum; under 400 mA at no load
DC ConnectionsTubular screw-down terminals; battery-clamp cable included; internal 10 A blade fuse
Peak Efficiency89%
ProtectionsLow voltage alarm 21 V, shutdown 20 V (auto reset 23 V); high voltage shutdown 33 V; overload, short circuit, over-temperature (auto reset); ground fault; reverse polarity (internal fuse)
CoolingTemperature-controlled fan
Operating Temperature-4°F to 104°F (-20°C to 40°C)
Dimensions6.1 x 8.31 x 2.58 inches (155 x 211 x 65.5 mm)
Weight2.8 lbs (1.27 kg)
StandardsETL listed to UL 62368-1 and CSA C22.2 No. 62368-1; FCC Part 15(B) Class B
Warranty3 years (Samlex America)
Technical Documentation
PST-150-24 Product Manual (PDF) · PST-150-24 Specification Sheet (PDF)

Where This Inverter Is Used

  • 24V trucks, buses and machines - device charging in the cab.
  • Field service on 24V plants - meters and tool-battery chargers at the site.
  • 24V marine systems - small electronics without a converter.
  • Emergency use - phones and radios from any 24 volt battery.

Ordering

Small order, small footprint. The clamp cable is in the box and no kit is needed at a 10 amp draw. Loads beyond chargers point to the PST-300-24 or PST-600-24. Fleet counts get a written quote in 24 to 48 hours with quantity and ZIP.

Frequently Asked Questions

Which cable comes with the 24 volt version?

The battery-clamp cable. Samlex includes the accessory-socket plug lead only with its 12 volt models, so the PST-150-24 connects by clamps or by fixed wiring to its screw-down terminals.

How is it different from the PST-150-12?

The battery side and the box contents. Input runs 21 to 33 VDC, maximum draw drops to 10 amps, peak efficiency rises to 89 percent, and the socket-plug cable is not included. Chassis, outlets and warranty carry over.

What earns its keep at 150 watts on a 24 volt system?

Charger duty: a laptop brick and phone charger together, camera batteries, instrument chargers, up to 1.25 amps of AC. Heating elements and motors are the wrong loads at this size.

Is it safe to leave wired in?

Yes, within reason. Idle draw is under 400 milliamps, a low-voltage alarm sounds at 21 volts and the inverter shuts down at 20 to protect the bank. For weeks of storage, switch it off anyway.

Clean charging power for the 24V cab.

Order online, or send your quantity and delivery ZIP and a battery specialist will confirm pricing and lead time in writing, with no obligation to buy.
