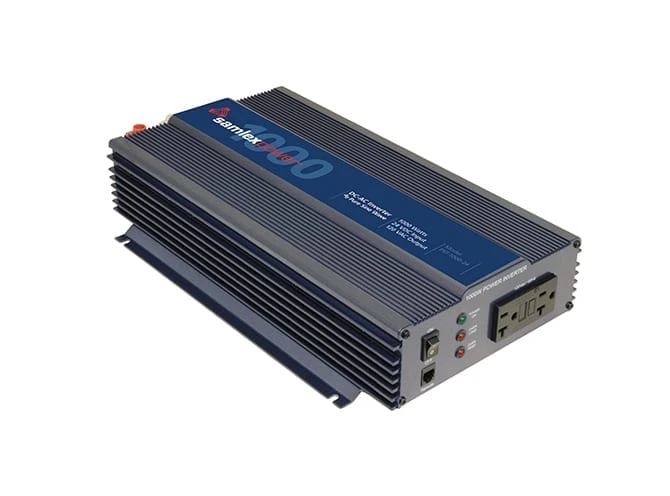

Samlex PST-1000-24 1000 watt 24VDC to 120VAC pure sine wave inverter

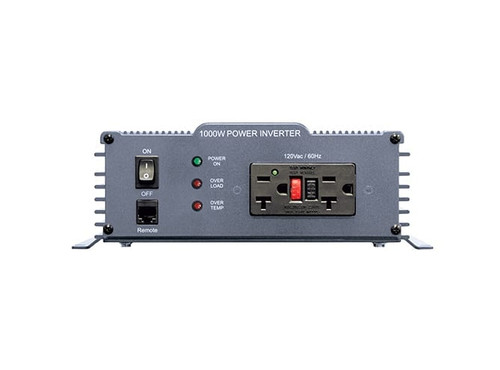

PST-1000-24 front panel with GFCI duplex outlet

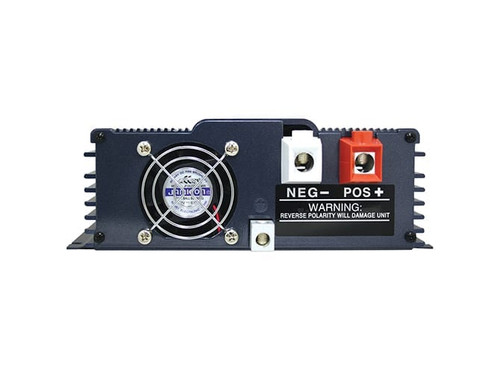

PST-1000-24 rear panel with tubular DC terminals and fan
Top view of the Samlex PST-1000-24 inverter
Side view of the Samlex PST-1000-24 inverter
Samlex PST-1000-24 1000 watt 24VDC to 120VAC pure sine wave inverter
PST-1000-24 front panel with GFCI duplex outlet
PST-1000-24 rear panel with tubular DC terminals and fan
Top view of the Samlex PST-1000-24 inverter
Side view of the Samlex PST-1000-24 inverter

  • Free Shipping

    Orders $75 & Up

  • 30-day Money Back

    Guarantee*

  • 100% Secure Online Shopping

    SSL - Verified Merchant

Samlex PST-1000-24 1000 Watt Pure Sine Wave Inverter, 24V, GFCI Outlets, Cable Lugs Included

$765.90
$613.00
(You save $152.90 )
SKU: PST-1000-24
Availability: Usually ships in 24 hours
Shipping: Free shipping on orders $75 and up
Input Voltage: 24 VDC
Output: 120 VAC Pure Sine Wave
Continuous Power: 1000 W
Surge Power: 2000 W
AC Outlets: NEMA 5-20R GFCI Duplex
Remote Control: RC-15A Optional (Sold Separately)
Samlex PST-1000-24 1000 Watt Pure Sine Wave Inverter, 24V, GFCI Outlets, Cable Lugs Included

Samlex PST-1000-24 1000 Watt Pure Sine Wave Inverter, 24V, GFCI Outlets, Cable Lugs Included

$765.90
$613.00
(You save $152.90 )
Adding to cart… The item has been added
Description

Samlex PST-1000-24 - 1000W 24VDC to 120VAC Pure Sine Wave Inverter

Converting 24VDC to 120VAC does not have to mean buying more inverter than the loads justify. The Samlex PST-1000-24 turns a 24 volt bank into 1000 watts of pure sine household power through a GFCI-protected duplex outlet, pulls a maximum of just 80 amps doing it, and comes with the pin-type battery cable lugs already in the box. It is the one-box answer for electronics and light appliances on a 24V system.

Warranty

Warranty. Samlex America warrants the PST-1000-24 for 3 years. Full terms are confirmed in writing with your quote.

A Kilowatt Without the Overhead

Light on the bank
80 amps maximum and under 600 milliamps idle; the wiring job stays small and the batteries stay comfortable.
Lugs in the box
Pin-type battery cable lugs ship with the inverter, and the 11 mm tubular terminals take them with an M8 set screw. One less stop before the install.
Double for the surge
2000 watts stands by for under 8 milliseconds of startup, the moment power bricks and small motors ask for the most.
  • True sine output under 3% THD, delivered through a ground-fault protected duplex receptacle.
  • UPC protection against low and high voltage, overload, short circuit and over-temperature, with GFCI trips at the outlets.
  • Low RF emissions with a fan that runs only when heat calls for it.
  • ETL listed to UL 458 and CSA C22.2 No. 107.1; FCC Part 15(B) Class B.

Technical Specifications

Samlex PST-1000-24 Specifications
Part NumberPST-1000-24 (also searched as PST 1000 24, PST1000-24, PST 1000)
Output WaveformPure sine wave, under 3% THD
Continuous Power1000 W
Surge Power2000 W (under 8 ms)
Maximum Output Current8.5 A
AC Output120 VAC ±3%, 60 Hz ±1%; NEMA 5-20R GFCI duplex receptacle
DC Input Voltage24 VDC nominal, 21.4 - 33 VDC operating range
DC Input Current80 A maximum; under 600 mA at no load
DC ConnectionsTubular terminals (11 mm holes, M8 set screws); pin-type battery cable lugs included
Peak EfficiencyOver 85%
ProtectionsLow voltage alarm 21.4 V, shutdown 20 V (auto reset 23 V); high voltage shutdown 33 V; overload, short circuit, over-temperature (auto reset); ground fault on GFCI outlets; reverse polarity (fuses)
Remote ControlRC-15A LED remote, sold separately (15 ft cable)
CoolingTemperature-controlled fan
Operating Temperature-4°F to 104°F (-20°C to 40°C)
Dimensions9.37 x 15.63 x 3.23 inches (238 x 397 x 82 mm)
Weight8.8 lbs (4.0 kg)
StandardsETL listed to UL 458 and CSA C22.2 No. 107.1; FCC Part 15(B) Class B
Warranty3 years (Samlex America)
Technical Documentation
PST-1000-24 Product Manual (PDF) · PST-1000-24 Specification Sheet (PDF)

Where This Inverter Is Used

  • 24V trucks and equipment - laptops, test gear and chargers on clean AC.
  • Marine house systems - entertainment and galley electronics from the 24V bank.
  • Telecom and remote sites - a kilowatt of AC where the plant runs 24 volts.
  • 24V solar setups - right-sized AC for a modest array and bank.

Ordering

Everything but the cable run. Lugs are included; the DC-1000-KIT 100A kit supplies the cable and fuse if you are not making your own. One serious appliance on the menu? Look at the PST-1500-24 instead. Quantity pricing comes back in writing within 24 to 48 hours.

Frequently Asked Questions

PST-1000-24 vs PST-1000F-12: what changed besides voltage?

The 24 volt model drops the F version's 1-wire ignition input and its extra-wide temperature rating, and its optional RC-15A remote connects on a 15 foot cable. Both ship with pin-type battery cable lugs and share the 1000 watt rating, GFCI duplex output and 3 year warranty.

What does it draw from a 24 volt bank?

No more than 80 amps flat out and under 600 milliamps at idle. Samlex's DC-1000-KIT 100A installation kit matches that draw with cable, lugs and a battery-end fuse.

How much can 1000 watts run at once?

Any mix of electronics and light appliances whose steady total stays under 1000 watts and 8.5 amps: a TV and laptop with chargers behind them, or one small kitchen appliance at a time. The 2000 watt surge window covers power-supply inrush at switch-on.

What is the RC-15A option?

A wired LED remote, sold separately, that connects on a 15 foot cable so the on/off switch and status lights live at the helm or dash while the inverter stays by the batteries.

A clean kilowatt from your 24V bank.

Order online, or send your load list and delivery ZIP and a battery specialist will confirm sizing in writing, with no obligation to buy.

Call 1-877-775-4381  ·  battery specialists, not a call center
