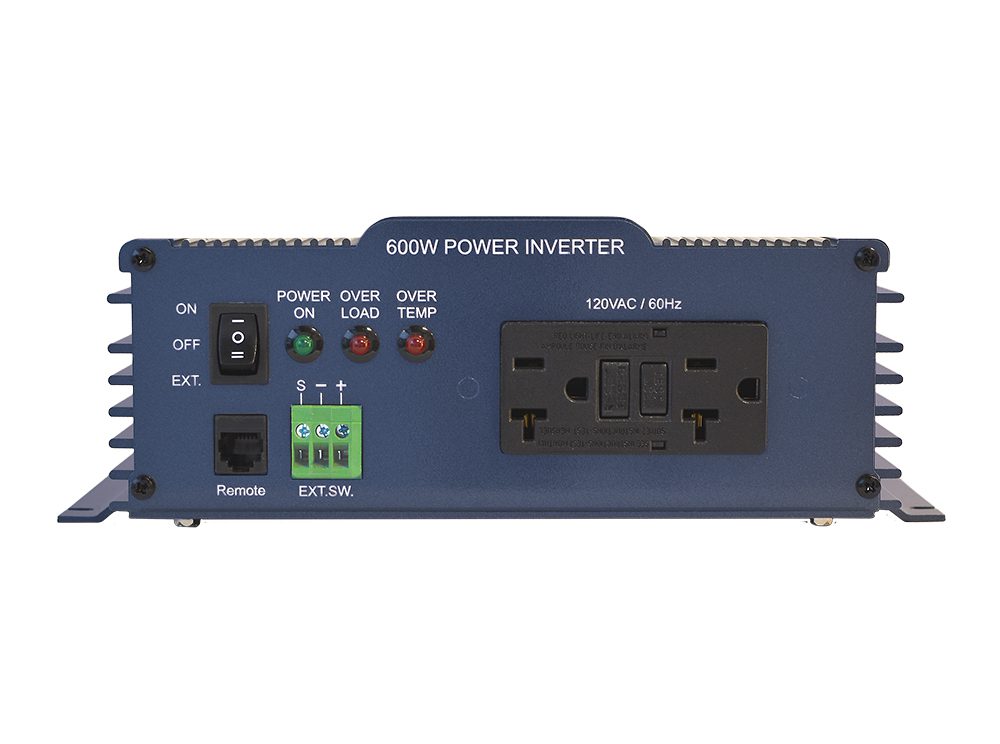

Samlex PST-600-24 600 watt 24 volt pure sine wave inverter, front panel with dual GFCI outlets

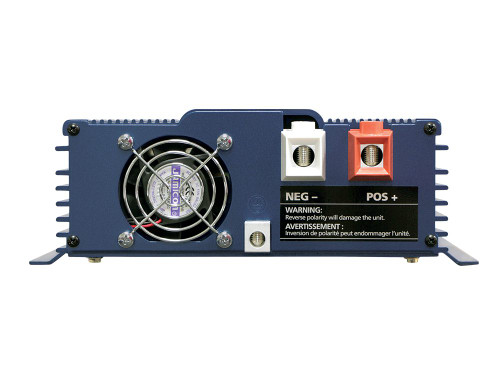

PST-600-24 rear panel with DC terminals and cooling fan
Mounting base of the Samlex PST-600-24 inverter
Samlex PST-600-24 600 watt 24 volt pure sine wave inverter, front panel with dual GFCI outlets
PST-600-24 rear panel with DC terminals and cooling fan
Mounting base of the Samlex PST-600-24 inverter

  • Free Shipping

    Orders $75 & Up

  • 30-day Money Back

    Guarantee*

  • 100% Secure Online Shopping

    SSL - Verified Merchant

Samlex PST-600-24 600 Watt Pure Sine Wave Inverter, 24V, Dual GFCI Outlets

$425.00
$340.00
(You save $85.00 )
SKU: PST-600-24
Availability: Usually ships in 24 hours
Shipping: Free shipping on orders $75 and up
Input Voltage: 24 VDC
Output: 120 VAC Pure Sine Wave
Continuous Power: 600 W
Surge Power: 1000 W
AC Outlets: NEMA 5-20R GFCI Duplex
Remote Control: RC-15A Optional (Sold Separately)
Samlex PST-600-24 600 Watt Pure Sine Wave Inverter, 24V, Dual GFCI Outlets

Samlex PST-600-24 600 Watt Pure Sine Wave Inverter, 24V, Dual GFCI Outlets

$425.00
$340.00
(You save $85.00 )
Adding to cart… The item has been added
Description

Samlex PST-600-24 - 600W 24 Volt Pure Sine Wave Inverter, Dual GFCI Outlets

A 24 volt inverter does not have to be an industrial slab; sometimes the job is a CPAP, a laptop and a router. The Samlex PST-600-24 covers exactly that class of load from a 24V system: 600 watts of pure sine 120VAC through two GFCI-protected outlets, a 1000 watt surge margin, and a draw that never passes 40 amps. At 5.9 pounds it mounts on a shelf edge and disappears into the background of the boat, coach or equipment room.

Warranty

Warranty. Samlex America warrants the PST-600-24 for 3 years. Full terms are confirmed in writing with your quote.

Small AC for 24V Systems

40 amp maximum draw
The 24 volt feed halves the current of the 12V version, so cabling and fusing stay light and cheap.
Both outlets protected
Ground-fault protection covers the entire duplex, both sockets, wherever the inverter ends up living.
Efficient where it counts
Peak efficiency above 88% and a temperature-controlled fan keep the losses, and the noise, near zero at typical loads.
  • Pure sine wave output, under 3% THD, 120 VAC within 3 percent, up to 5.1 amps.
  • 1000 watt surge rating absorbs power-brick and small-motor startup.
  • Universal Protection Circuit: voltage extremes, overload, short circuit, over-temperature; single internal 40 A fuse against reverse polarity.
  • ETL listed to UL 458 and CSA C22.2 No. 107.1; FCC Part 15(B) Class B.

Technical Specifications

Samlex PST-600-24 Specifications
Part NumberPST-600-24 (also searched as PST 600 24, PST600-24, PST 600)
Output WaveformPure sine wave, under 3% THD
Continuous Power600 W
Surge Power1000 W
Maximum Output Current5.1 A
AC Output120 VAC ±3%, 60 Hz ±1%; NEMA 5-20R GFCI duplex receptacle
DC Input Voltage24 VDC nominal, 21.4 - 33 VDC operating range
DC Input Current40 A maximum; under 450 mA at no load
DC ConnectionsTubular screw-down terminals (7/16 in holes); internal 40 A fuse
Peak EfficiencyOver 88%
ProtectionsLow voltage alarm 21.4 V, shutdown 20 V (auto reset 23 V); high voltage shutdown 34 V; overload, short circuit, over-temperature (auto reset); ground fault on GFCI outlets; reverse polarity (fuse)
Remote Control2-wire and 1-wire on/off inputs; RC-15A LED remote sold separately (16.5 ft cable)
CoolingTemperature-controlled fan
Operating Temperature-4°F to 104°F (-20°C to 40°C)
Dimensions9.37 x 10.87 x 3.23 inches (238 x 276.2 x 82 mm)
Weight5.9 lbs (2.7 kg)
StandardsETL listed to UL 458 and CSA C22.2 No. 107.1; FCC Part 15(B) Class B
Warranty3 years (Samlex America)
Technical Documentation
PST-600-24 Product Manual (PDF) · PST-600-24 Specification Sheet (PDF)

Where This Inverter Is Used

  • Workboats and 24V marine cabins - protected outlets where everything is a little damp.
  • Heavy equipment and trucks - the operator's electronics on clean sine power.
  • Overnight medical and network loads - steady small draws that must not flicker.
  • 24V telecom and solar sites - utility AC for the odd corded device.

Ordering

Simple install, one add-on. The DC-1000-KIT 100A kit is more than enough cable and fuse for the 40 amp draw; the RC-15A remote is the only other option to consider. Need more than 600 watts on 24 volts? The PST-1000-24 is next in line. Bulk counts get a written quote in 24 to 48 hours.

Frequently Asked Questions

Why a 24 volt inverter for just 600 watts?

Because plenty of 24V vehicles and plants need small AC, not big AC. Fed from 24 volts this inverter tops out at a 40 amp draw, half what the 12 volt version pulls, so it runs on modest wiring and a single 40 amp fuse while peak efficiency rises above 88%.

What can it keep running through the night?

CPAP machines, routers, monitoring gear and anything else that sips steadily under 600 watts. With under 450 milliamps of idle draw, the overnight cost of leaving it on is a rounding error against the bank.

How does the GFCI protection behave?

The duplex outlets shut the inverter down when they detect 5 to 6 milliamps of ground-fault leakage, the same threshold household GFCI protection uses. That is what you want anywhere damp: boats, galleys, wash bays.

How do I control it remotely?

Either wire the on/off input to an ignition or panel switch, or add the RC-15A LED remote (sold separately) with its 16.5 foot cable.

Quiet, protected AC for the 24V rig.

Order online, or send your load list and delivery ZIP and a battery specialist will confirm fit and pricing in writing, with no obligation to buy.
