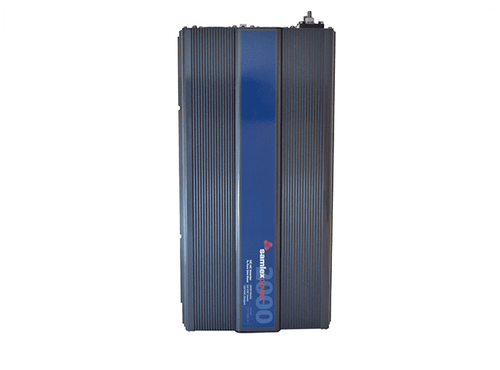

Top view of the Samlex PST-2000-24 inverter
Mounting base of the Samlex PST-2000-24 inverter
Samlex PST-2000-24 2000 watt 24V pure sine wave inverter
PST-2000-24 front panel with GFCI duplex outlet and power switch
PST-2000-24 rear panel with DC studs, hardwire terminal block and fans
Top view of the Samlex PST-2000-24 inverter
Mounting base of the Samlex PST-2000-24 inverter

  • Free Shipping

    Orders $75 & Up

  • 30-day Money Back

    Guarantee*

  • 100% Secure Online Shopping

    SSL - Verified Merchant

Samlex PST-2000-24 2000 Watt Pure Sine Wave Inverter, 24V, GFCI Outlets + Hardwire

$1,231.80
$986.00
(You save $245.80 )
SKU: PST-2000-24
Availability: Usually ships in 24 hours
Shipping: Free shipping on orders $75 and up
Input Voltage: 24 VDC
Output: 120 VAC Pure Sine Wave
Continuous Power: 2000 W
Surge Power: 3500 W
AC Outlets: NEMA 5-20R GFCI Duplex + Hardwire Terminal Block
Remote Control: RC-300 Optional (Sold Separately)
Samlex PST-2000-24 2000 Watt Pure Sine Wave Inverter, 24V, GFCI Outlets + Hardwire

Samlex PST-2000-24 2000 Watt Pure Sine Wave Inverter, 24V, GFCI Outlets + Hardwire

$1,231.80
$986.00
(You save $245.80 )
Adding to cart… The item has been added
Description

Samlex PST-2000-24 - 2000W 24V Pure Sine Wave Inverter, GFCI + Hardwire

A 24 volt pure sine wave inverter is the natural fit for coaches, buses and equipment that already run a 24V electrical system. The Samlex PST-2000-24 delivers 2000 watts of 120VAC from that system while drawing half the current a 12 volt build would demand, through a GFCI-protected duplex outlet, a hardwire terminal block, or both. The commercial-grade chassis is rated for continuous duty, and 3500 watts of surge covers the moment a motor load wakes up.

Warranty

Warranty. Samlex America warrants the PST-2000-24 for 3 years. Full terms are confirmed in writing with your quote.

Built Around the 24V System

120 amps, not 240
Half the DC current of the 12 volt equivalent means lighter cable, smaller fusing and less heat between the bank and the inverter.
Panel and outlet together
Fixed wiring lands on the terminal block while corded gear keeps the GFCI duplex, sharing the 16.7 amp output.
Efficiency past 88%
The 24 volt design wastes less of the bank as heat, which reads directly as longer runtime on the same amp-hours.
  • Sine wave output under 3% distortion, regulated within 3 percent of 120 VAC.
  • Universal Protection Circuit guards against voltage extremes, overload, short circuit, over-temperature, outlet ground faults and reversed polarity.
  • 2-wire and 1-wire remote on/off inputs; RC-300 LCD remote sold separately.
  • ETL listed to UL 458 and CSA C22.2 No. 107.1; FCC Part 15(B) Class B; RoHS compliant.

Technical Specifications

Samlex PST-2000-24 Specifications
Part NumberPST-2000-24 (also searched as PST 2000 24, PST2000-24, PST 2000)
Output WaveformPure sine wave, under 3% THD
Continuous Power2000 W
Surge Power3500 W
Maximum Output Current16.7 A
AC Output120 VAC ±3%, 60 Hz ±1%
AC ConnectionsNEMA 5-20R GFCI duplex receptacle and hardwire terminal block
DC Input Voltage24 VDC nominal, 21.4 - 33 VDC operating range
DC Input Current120 A maximum; under 0.8 A at no load
DC Input Fuses6 x 20 A internal blade fuses (120 A total)
Peak EfficiencyOver 88%
ProtectionsLow voltage alarm 21.4 V, shutdown 20 V (auto reset 23 V); high voltage shutdown 33 V; overload, short circuit, over-temperature (auto reset); ground fault on GFCI outlets; reverse polarity (fuses)
Remote ControlRC-300 LCD remote, sold separately (25 ft cable); 2-wire and 1-wire wired on/off inputs
Cooling2 temperature-controlled fans
Operating Temperature-4°F to 104°F (-20°C to 40°C)
Dimensions10.35 x 18.43 x 4.16 inches (263 x 468.2 x 105.6 mm)
Weight15.6 lbs (7.1 kg)
StandardsETL listed to UL 458 and CSA C22.2 No. 107.1; FCC Part 15(B) Class B; RoHS
Warranty3 years (Samlex America)
Technical Documentation
PST-2000-24 Product Manual (PDF) · PST-2000-24 Specification Sheet (PDF)

Where This Inverter Is Used

  • Buses and coaches - galley and cabin AC from the 24V chassis system.
  • Heavy service vehicles - tools and chargers wired in for the workday.
  • Workboats and 24V marine banks - hardwired AC alongside shore power.
  • 24V solar and telecom sites - a 2000 watt AC stage without a voltage converter.

Ordering

Complete the pair. The DC-2000-KIT 200A installation kit and RC-300 remote ride the same order. Bigger loads point to the PST-3000-24; a 12 volt bank points to the PST-2000-12. Fleet counts and ZIPs get a written quote back in 24 to 48 hours.

Frequently Asked Questions

What is the difference between the PST-2000-24 and the PST-2000-12?

The battery side. Fed from 24 volts, the same 2000 watts draws no more than 120 amps where the 12 volt model needs 240, peak efficiency climbs above 88%, and the internal fusing drops to six 20 amp blades. Chassis, outlets, hardwire block and warranty are identical.

What loads will 2000 watts carry on a bus or coach?

A 1200 watt microwave with the lights and chargers still running, a full workstation, or one corded tool at a time. Motor starts lean on the 3500 watt surge rating, and the total steady draw stays under 16.7 amps at 120 VAC.

How big should the 24 volt cabling be?

Sized for a 120 amp maximum draw over your run length, per the tables in the Samlex manual, with a fuse at the battery end. Samlex's DC-2000-KIT 200A installation kit packages the cable, lugs and fuse for exactly this class of inverter.

Does it follow the ignition?

It can. The remote input on the hardwiring terminal block accepts ignition or dash-switch control, and the optional RC-300 LCD remote adds full monitoring from 25 feet away.

2000 watts, wired for the 24V world.

Order online, or send your system voltage, load list and delivery ZIP and a battery specialist will confirm the fit in writing, with no obligation to buy.
