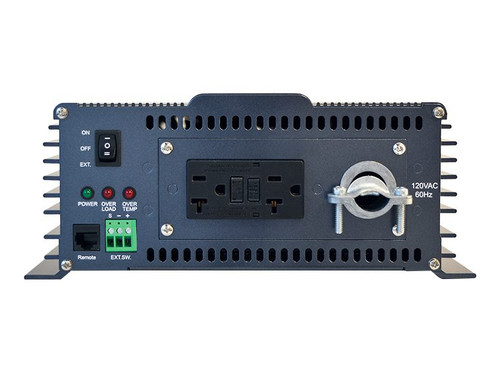

PST-2000-12 front panel with GFCI duplex outlet and power switch
PST-2000-12 rear panel with DC input studs, hardwire terminal block and fans

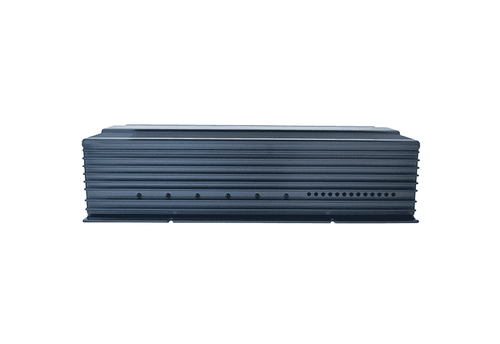

Side view of the Samlex PST-2000-12 hardwire capable inverter
Samlex PST-2000-12 mounting flange side view
Samlex PST-2000-12 2000 watt power inverter 12V pure sine wave
PST-2000-12 front panel with GFCI duplex outlet and power switch
PST-2000-12 rear panel with DC input studs, hardwire terminal block and fans
Side view of the Samlex PST-2000-12 hardwire capable inverter
Samlex PST-2000-12 mounting flange side view

  • Free Shipping

    Orders $75 & Up

  • 30-day Money Back

    Guarantee*

  • 100% Secure Online Shopping

    SSL - Verified Merchant

Samlex PST-2000-12 2000 Watt Pure Sine Wave Power Inverter, 12V, GFCI Outlets + Hardwire

$1,231.80
$986.00
(You save $245.80 )
SKU: PST-2000-12
Availability: Usually ships in 24 hours
Shipping: Free shipping on orders $75 and up
Input Voltage: 12 VDC
Output: 120 VAC Pure Sine Wave
Continuous Power: 2000 W
Surge Power: 3500 W
AC Outlets: NEMA 5-20R GFCI Duplex + Hardwire Terminal Block
Remote Control: RC-300 Optional (Sold Separately)
Samlex PST-2000-12 2000 Watt Pure Sine Wave Power Inverter, 12V, GFCI Outlets + Hardwire

Samlex PST-2000-12 2000 Watt Pure Sine Wave Power Inverter, 12V, GFCI Outlets + Hardwire

$1,231.80
$986.00
(You save $245.80 )
Adding to cart… The item has been added
Description

Samlex PST-2000-12 - 2000W Pure Sine Wave Power Inverter, 12V, Hardwire + GFCI

A work vehicle does not need an inverter that visits; it needs one that lives there. The Samlex PST-2000-12 is a 2000 watt power inverter designed for permanent duty: a hardwire terminal block for the fixed AC circuit, a GFCI-protected duplex outlet for whatever gets plugged in at the job, and a commercial-grade build rated for long stretches of continuous operation. It converts a 12 volt bank to 120VAC pure sine power with 3500 watts of surge in reserve for motor starts.

Warranty

Warranty. Samlex America warrants the PST-2000-12 for 3 years. Full terms are confirmed in writing with your quote.

Made for Permanent Installs

Two ways to deliver power
Fixed wiring lands on the terminal block; corded gear uses the GFCI duplex. One inverter covers the built-in circuit and the extension cord.
Built for the long shift
Commercial-grade design rated for heavy loads and long periods of continuous operation, with two temperature-controlled fans that only spin when needed.
3500 watt surge
Startup headroom for compressors, pumps and saws, delivered without dropping the loads already running.
  • Pure sine wave output, under 3% THD, held at 120 VAC within 3 percent.
  • Universal Protection Circuit: low and high DC voltage, overload, short circuit and over-temperature shutdowns, plus ground fault on the outlets.
  • Ignition-ready: 2-wire and 1-wire remote on/off inputs on the terminal block; RC-300 LCD remote sold separately.
  • ETL listed to UL 458 and CSA C22.2 No. 107.1; FCC Part 15(B) Class B; RoHS compliant.

Technical Specifications

Samlex PST-2000-12 Specifications
Part NumberPST-2000-12 (also searched as PST 2000 12, PST2000-12, PST 2000)
Output WaveformPure sine wave, under 3% THD
Continuous Power2000 W
Surge Power3500 W
Maximum Output Current16.7 A
AC Output120 VAC ±3%, 60 Hz ±1%
AC ConnectionsNEMA 5-20R GFCI duplex receptacle and hardwire terminal block
DC Input Voltage12 VDC nominal, 10.7 - 16.5 VDC operating range
DC Input Current240 A maximum; under 1.0 A at no load
DC Input Fuses6 x 40 A internal blade fuses (240 A total)
Peak EfficiencyOver 85%
ProtectionsLow voltage alarm 10.7 V, shutdown 10.0 V; high voltage shutdown 16.5 V; overload, short circuit, over-temperature (auto reset); ground fault on GFCI outlets; reverse polarity (fuses)
Remote ControlRC-300 LCD remote, sold separately (25 ft cable); 2-wire and 1-wire wired on/off inputs
Cooling2 temperature-controlled fans
Operating Temperature-4°F to 104°F (-20°C to 40°C)
Dimensions10.35 x 18.43 x 4.16 inches (263 x 468.2 x 105.6 mm)
Weight15.6 lbs (7.1 kg)
StandardsETL listed to UL 458 and CSA C22.2 No. 107.1; FCC Part 15(B) Class B; RoHS
Warranty3 years (Samlex America)
Technical Documentation
PST-2000-12 Product Manual (PDF) · PST-2000-12 Specification Sheet (PDF)

Where This Inverter Is Used

  • Work trucks and service bodies - a wired AC circuit that is part of the vehicle, not an afterthought.
  • Mobile offices and field crews - computers, printers and chargers on clean power all day.
  • Boats and RVs - hardwired through a transfer switch alongside shore power.
  • Solar and backup systems - a 2000 watt AC stage for a 12 volt bank.

Ordering

One quote, whole install. Add the RC-300 remote and the DC-2500-KIT 300A cable-and-fuse kit to the same order. Sizing down? The PST-1500-12 shares this exact chassis at a lower price; sizing up, the PST-3000-12 adds a thousand watts. Send quantity and delivery ZIP and a battery specialist will return a written quote in 24 to 48 hours.

Frequently Asked Questions

PST-2000-12 or NTX-2000-12: which 2000 watt Samlex?

Take the PST-2000-12 when the inverter will be wired into the vehicle or building: it adds a hardwire terminal block beside its GFCI outlets and carries a 3 year warranty. Take the NTX-2000-12 when you want the lighter chassis and the LCD remote already in the box. Both put out 2000 watts of pure sine power from a 12 volt bank.

Can I use the outlets and the hardwire connection at the same time?

Yes. Output is available at the GFCI duplex receptacle and the terminal block together, as long as the combined load stays inside the 2000 watt, 16.7 amp rating.

What will the DC side demand?

Up to 240 amps at full output, which is why the internal protection is six 40 amp blade fuses. Samlex's DC-2500-KIT 300A installation kit bundles the cable, lugs and battery-end fuse for this class of draw; keep the run between battery and inverter short.

How do I switch it without reaching the front panel?

Two ways: the RC-300 LCD remote (sold separately, 25 foot cable into a modular jack), or the 2-wire and 1-wire on/off inputs on the hardwiring terminal block, which let the ignition or a dash switch control it.

Ready to make 2000 watts part of the vehicle?

Order online, or send your load list and delivery ZIP and a battery specialist will confirm sizing, pricing and lead time in writing, with no obligation to buy.
