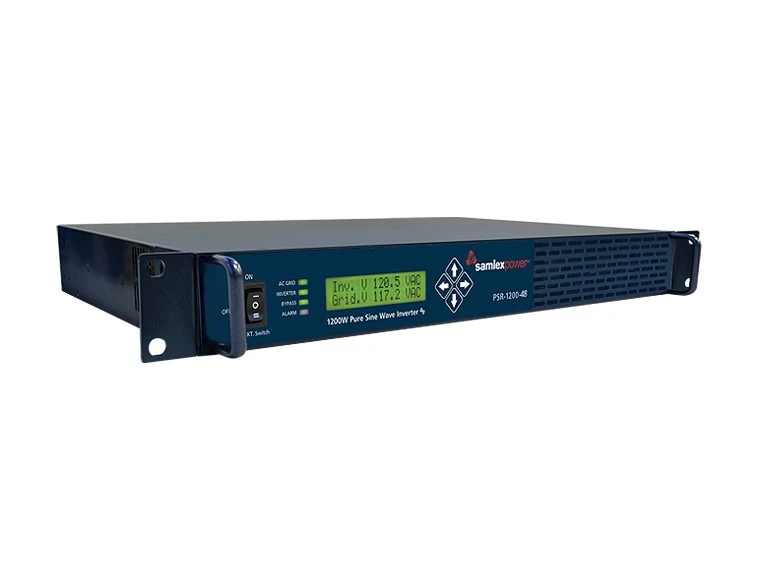

Samlex PSR-1200-48 48V to 120V 1U rack mount inverter with transfer relay, front left view
PSR-1200-48 front and rear panels with LCD, DC terminals and AC connections

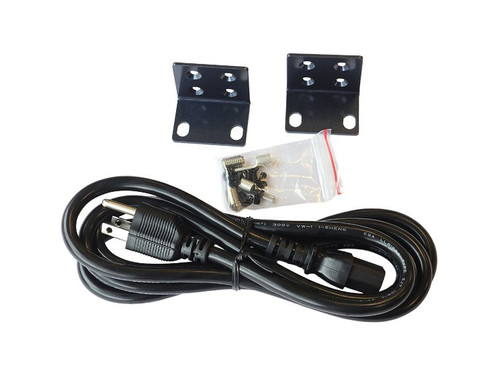

Rack mounting hardware included with the Samlex PSR-1200 series
Samlex PSR-1200-48 48V to 120V 1U rack mount inverter with transfer relay, front left view
PSR-1200-48 front and rear panels with LCD, DC terminals and AC connections
Rack mounting hardware included with the Samlex PSR-1200 series

  • Free Shipping

    Orders $75 & Up

  • 30-day Money Back

    Guarantee*

  • 100% Secure Online Shopping

    SSL - Verified Merchant

Samlex PSR-1200-48 1200 Watt Pure Sine Wave Rack Mount Inverter, 48V, 1U, Built-In Transfer Relay

$1,623.00
$1,299.00
(You save $324.00 )
SKU: PSR-1200-48
Availability: Usually ships in 24 hours
Shipping: Free shipping on orders $75 and up
Input Voltage: 48 VDC
Output: 120 VAC Pure Sine Wave
Continuous Power: 1200 W
Surge Power: 2000 W
AC Outlets: NEMA 5-20R Duplex
Transfer Relay: 16A Built-In
Rack Size: 19 in, 1U
Samlex PSR-1200-48 1200 Watt Pure Sine Wave Rack Mount Inverter, 48V, 1U, Built-In Transfer Relay

Samlex PSR-1200-48 1200 Watt Pure Sine Wave Rack Mount Inverter, 48V, 1U, Built-In Transfer Relay

$1,623.00
$1,299.00
(You save $324.00 )
Adding to cart… The item has been added
Description

Samlex PSR-1200-48 - 1200W Pure Sine Wave Rack Mount Inverter with Transfer Relay, 48V

A rack UPS makes you buy, monitor, and replace a second set of batteries. Your 48 volt plant already does that job. The Samlex PSR-1200-48 converts 48VDC to 120VAC at 1200 watts continuous, using the site's existing battery string as its energy reserve. Grid power flows through the built-in transfer relay until it drops; then the load rides the plant for as many amp-hours as you have floating.

Warranty

Warranty. Samlex America warrants the PSR-1200-48 for 2 years. Full terms are confirmed in writing with your quote.

Backup Without a Second Battery Bank

The plant is the UPS
Runtime is set by your battery string, not by a sealed tray of cells on a replacement schedule. Add amp-hours and the backup window grows with them.
Shallow 1U chassis
15.24 inches deep and 1.73 inches tall, it fits two-post relay racks and crowded wall cabinets where a full-depth unit will not.
Sips on standby
No-load draw is under 0.5 amps at 48 volts, so leaving it in-circuit around the clock costs the plant almost nothing.
  • Pure sine wave output, under 2% THD; the 16 A transfer relay switches in under 8 ms.
  • Load Safe transfer on brownout - the load moves to the inverter before a sag becomes an equipment reset.
  • Ethernet web monitoring, SNMP traps and e-mail notification; configuration from the front panel, USB, or RS-232C.
  • SPDT alarm contacts and wired ENB on/off terminals (contact closure or 20 to 60 VDC signal).
  • Detachable C13 AC input cord supplied; NEMA 5-20R duplex output.
  • ETL listed to UL 62368-1 and CSA C22.2 No. 62368-1; FCC Part 15(B) Class B.

Technical Specifications

Samlex PSR-1200-48 Specifications
Part NumberPSR-1200-48 (also searched as PSR 1200 48, PSR1200-48, PSR 1200)
Output WaveformPure sine wave, under 2% THD (inverter mode)
Continuous Power1200 W
Surge Power2000 W
AC Output100 - 120 VAC user selectable (default 120 VAC); 45 - 65 Hz (default 60 Hz); NEMA 5-20R duplex
DC Input48 VDC nominal, 40 - 60 VDC range; under 0.5 A no-load draw
AC InputProgrammed output voltage ±10%, 50/60 Hz; IEC C14 inlet, cord supplied
Transfer Relay16 A rating; under 8 ms switching; synchronized or unsynchronized
Peak EfficiencyOver 90%
Display2 x 16 character LCD; AC GRID, INVERTER, BYPASS and ALARM LEDs
MonitoringEthernet web page, e-mail notifications, SNMP traps; USB or RS-232C configuration
ProtectionsDC under and over voltage alarm and shutdown, overload, short circuit, over-temperature (auto reset), fan fault alarm
Alarm OutputSPDT relay contacts, 240 VAC 16 A
Operating Temperature-4°F to 122°F (-20°C to 50°C)
Dimensions19 x 15.24 x 1.73 inches, 1U (482 x 386.8 x 44 mm)
Weight12.8 lbs (5.8 kg)
StandardsETL listed to UL 62368-1 and CSA C22.2 No. 62368-1; FCC Part 15(B) Class B
Warranty2 years (Samlex America)
Technical Documentation
PSR-1200-48 Product Manual (PDF) · PSR-1200-48 Specification Sheet (PDF)

Where This Inverter Is Used

  • 48V telecom and radio sites - one AC circuit for the equipment the DC plant cannot feed directly.
  • 48V solar and off-grid systems - household-quality AC from the bank, with generator input through the relay.
  • Emergency backup for comms equipment - the shelf stays up as long as the plant holds.

Ordering

Voltage check. Single-carton parcel shipment. Running a 24 volt plant instead? The PSR-1200-24 is the same 1U inverter for that bus. For rollouts across sites, send quantities and ZIPs and a battery specialist will return a written quote in 24 to 48 hours.

Frequently Asked Questions

How is this different from a rack mount UPS?

A UPS carries its own small battery tray, which means minutes of runtime and a recurring replacement cost. The PSR-1200-48 has no internal batteries: it inverts from the 48V plant you already maintain, so runtime is whatever your string holds and there is nothing inside to age out.

How much load can it carry?

1200 watts continuous on the inverter, with a 2000 watt surge allowance for startup, and the bypass path carries the same 1200 watts of grid power. Keep the steady total under 1200 watts in either mode.

Do I need the PSR-2200-48 instead?

Only if the load list outgrows 1200 watts. The 2200 brings a 30 amp relay and a 4000 watt surge budget, but it takes 2U of rack and costs more; a radio shelf plus a network stack rarely needs it.

What does the DC hookup look like?

Battery conductors land in set-screw terminals with 7/16 inch cable holes, next to a dedicated chassis ground lug. Inside, four 10 amp blade fuses (40 amps total) protect the input; follow the manual's conductor sizing and put a fuse at the battery end of the run.

Backup power without a second battery bill.

Order online, or send your plant voltage, load list and delivery ZIP and a battery specialist will confirm fit, pricing and lead time in writing, with no obligation to buy.

Call 1-877-775-4381  ·  battery specialists, not a call center
