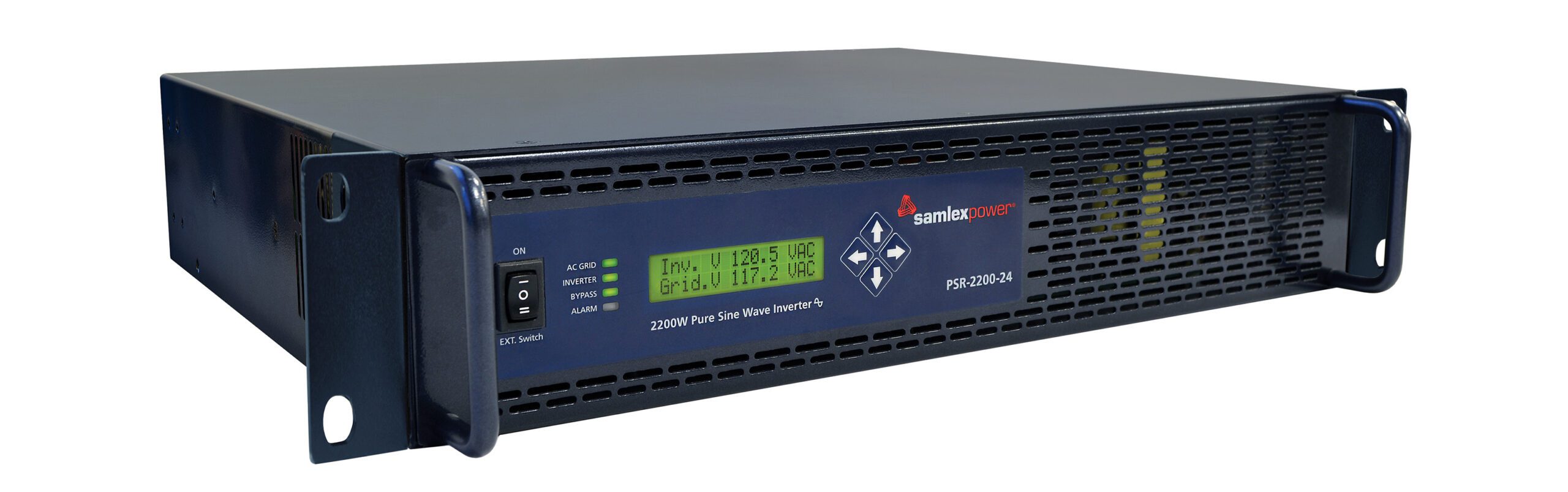

Samlex PSR-2200-24 2200 watt rack mount inverter with transfer relay, front left view
PSR-2200-24 front panel with LCD display, status LEDs and NEMA 5-20R duplex outlet
PSR-2200 rear panel with DC input studs, AC inlet and Ethernet monitoring port
Samlex PSR-2200-24 2200 watt rack mount inverter with transfer relay, front left view
PSR-2200-24 front panel with LCD display, status LEDs and NEMA 5-20R duplex outlet
PSR-2200 rear panel with DC input studs, AC inlet and Ethernet monitoring port

  • Free Shipping

    Orders $75 & Up

  • 30-day Money Back

    Guarantee*

  • 100% Secure Online Shopping

    SSL - Verified Merchant

Samlex PSR-2200-24 2200 Watt Pure Sine Wave Rack Mount Inverter, 24V, Built-In Transfer Relay

$2,567.80
$2,055.00
(You save $512.80 )
SKU: PSR-2200-24
Availability: Usually ships in 24 hours
Shipping: Free shipping on orders $75 and up
Input Voltage: 24 VDC
Output: 120 VAC Pure Sine Wave
Continuous Power: 2200 W
Surge Power: 4000 W
AC Outlets: NEMA 5-20R Duplex
Transfer Relay: 30A Built-In
Rack Size: 19 in, 2U
Samlex PSR-2200-24 2200 Watt Pure Sine Wave Rack Mount Inverter, 24V, Built-In Transfer Relay

Samlex PSR-2200-24 2200 Watt Pure Sine Wave Rack Mount Inverter, 24V, Built-In Transfer Relay

$2,567.80
$2,055.00
(You save $512.80 )
Adding to cart… The item has been added
Description

Samlex PSR-2200-24 - 2200W Pure Sine Wave Rack Mount Inverter with Transfer Relay, 24V

When commercial power drops at a radio site, the equipment in the rack should not notice. The Samlex PSR-2200-24 is a 2200 watt rack mount inverter with the transfer switch already built in: grid power passes through to your load until it fails or sags out of tolerance, then the inverter takes over from the 24V battery plant in under 10 milliseconds. It fills 2U of a standard 19 inch rack and is sized for the communications shelf that has to stay up through an outage.

Warranty

Warranty. Samlex America warrants the PSR-2200-24 for 2 years. Full terms are confirmed in writing with your quote.

Built for Sites That Cannot Go Dark

Pure sine, under 2% THD
On inverter power, sensitive receivers and switching supplies see a true sine wave with less than 2% total harmonic distortion.
30 amp transfer relay
In the default offline mode the grid feeds the load while the inverter waits. On failure, the relay hands the load over in under 10 milliseconds, inside the ride-through of most equipment power supplies.
Answers to your NOC
A built-in web page serves status over Ethernet, faults go out as SNMP traps and e-mail notifications, and a USB command line handles scripted setup.
  • Load Safe algorithm - transfers to inverter when grid voltage sags below the programmed window, so a brownout never reaches the load.
  • Online mode option - reverse the priority and run the load from the inverter full-time, with the grid as standby.
  • SPDT dry-contact alarm output (rated 240 VAC, 16 A) for wired signaling into legacy site alarm systems.
  • Detachable AC input cord supplied (IEC C19 to NEMA 5-20P); output from a NEMA 5-20R duplex receptacle.
  • ETL listed to UL 62368-1 and CSA C22.2 No. 62368-1; FCC Part 15(B) Class B.

Technical Specifications

Samlex PSR-2200-24 Specifications
Part NumberPSR-2200-24 (also searched as PSR 2200 24, PSR2200-24, PSR 2200)
Output WaveformPure sine wave, under 2% THD (inverter mode)
Continuous Power2200 W at 120 VAC (2000 W at 100 VAC)
Surge Power4000 W
AC Output100 - 120 VAC user selectable (default 120 VAC); 45 - 65 Hz (default 60 Hz); NEMA 5-20R duplex
DC Input24 VDC nominal, 20 - 34 VDC range; under 0.9 A no-load draw
AC InputProgrammed output voltage ±10%, 50/60 Hz; IEC C20 inlet, 12 A input breaker, cord supplied
Transfer Relay30 A rating; under 10 ms switching; synchronized or unsynchronized
Peak EfficiencyOver 90%
Display2 x 16 character LCD; AC GRID, INVERTER, BYPASS and ALARM LEDs
MonitoringEthernet web page, e-mail notifications, SNMP traps; USB command-line configuration
ProtectionsDC under and over voltage alarm and shutdown, overload, short circuit, over-temperature (auto reset), fan fault alarm
Alarm OutputSPDT relay contacts, 240 VAC 16 A
Operating Temperature-4°F to 122°F (-20°C to 50°C)
Dimensions19 x 16.14 x 3.5 inches, 2U (482 x 410 x 87.7 mm)
Weight23.1 lbs (10.47 kg)
StandardsETL listed to UL 62368-1 and CSA C22.2 No. 62368-1; FCC Part 15(B) Class B
Warranty2 years (Samlex America)
Technical Documentation
PSR-2200-24 Product Manual (PDF) · PSR-2200-24 Specification Sheet (PDF)

Where This Inverter Is Used

  • Radio base stations and telecom shelters - clean AC for transmitters and controllers, backed by the 24V plant.
  • Traffic management and public safety cabinets - signals and roadside systems that must ride through outages.
  • Mobile command centers and emergency response units - rack power that follows the vehicle's battery bank.
  • Data and server rooms with DC plants - a protected 120VAC circuit without adding a separate UPS.

Ordering

Availability and volume. This inverter ships as a single parcel. If your site load tops out under 1200 watts, the 1U PSR-1200-24 saves rack space and cost. For multi-site rollouts, send the quantity and your delivery ZIPs and a battery specialist will return a written quote in 24 to 48 hours.

Frequently Asked Questions

How much equipment will 2200 watts support?

Add up the nameplate draw of everything on the shelf. A loaded rack pulling 15 amps at 120 VAC is 1800 watts and fits with headroom, and the 4000 watt surge rating absorbs power-on spikes. If the total passes 2200 watts, send us the load list and we will spec the site before you order.

What does it draw from the 24 volt plant?

A 2200 watt AC load at 24 volts works out to roughly 100 amps DC before conversion losses. Internal DC protection is six 25 amp fuses totaling 150 amps; size and fuse the battery conductors to the tables in the Samlex manual and keep the run short.

Can it match the grid before switching?

Yes. In synchronized mode the inverter phase-locks to the incoming AC, so a transfer lands without a phase jump. Unsynchronized transfer is selectable for sources that cannot be matched.

What is the difference between the PSR-2200-24 and the PSR-1200-24?

Power and hardware. The PSR-2200-24 carries 2200 watts continuous with 4000 watt surge through a 30 amp transfer relay in a 2U chassis; the PSR-1200-24 carries 1200 watts with a 16 amp relay in 1U. The monitoring and configuration suite is the same on both.

Ready to back the rack with your battery plant?

Order online, or send your site list and load figures and a battery specialist will confirm sizing, pricing and lead time in writing, with no obligation to buy.

Call 1-877-775-4381  ·  battery specialists, not a call center
