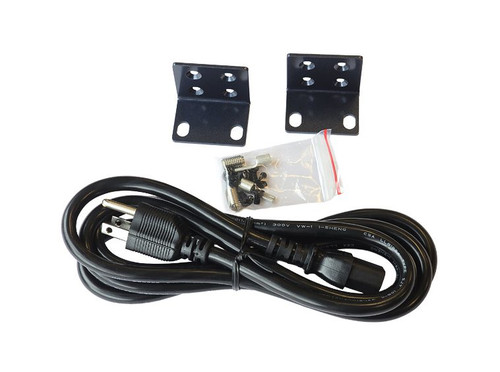

Rack mounting hardware included with the Samlex PSR-1200 series
Samlex PSR-1200-24 1200 watt 1U rack mount inverter with transfer relay, front left view
PSR-1200-24 front and rear panels with LCD, DC terminals and AC connections
Rack mounting hardware included with the Samlex PSR-1200 series

  • Free Shipping

    Orders $75 & Up

  • 30-day Money Back

    Guarantee*

  • 100% Secure Online Shopping

    SSL - Verified Merchant

Samlex PSR-1200-24 1200 Watt Pure Sine Wave Rack Mount Inverter, 24V, 1U, Built-In Transfer Relay

$1,623.00
$1,299.00
(You save $324.00 )
SKU: PSR-1200-24
Availability: Usually ships in 24 hours
Shipping: Free shipping on orders $75 and up
Input Voltage: 24 VDC
Output: 120 VAC Pure Sine Wave
Continuous Power: 1200 W
Surge Power: 2000 W
AC Outlets: NEMA 5-20R Duplex
Transfer Relay: 16A Built-In
Rack Size: 19 in, 1U
Samlex PSR-1200-24 1200 Watt Pure Sine Wave Rack Mount Inverter, 24V, 1U, Built-In Transfer Relay

Samlex PSR-1200-24 1200 Watt Pure Sine Wave Rack Mount Inverter, 24V, 1U, Built-In Transfer Relay

$1,623.00
$1,299.00
(You save $324.00 )
Adding to cart… The item has been added
Description

Samlex PSR-1200-24 - 1200W Pure Sine Wave Rack Mount Inverter with Transfer Relay, 24V

Rack space at a comms site is always spoken for; one rack unit is often all the backup power gets. The Samlex PSR-1200-24 packs a 1200 watt pure sine wave rack mount inverter and a 16 amp automatic transfer switch into a single 1U, 19 inch chassis. Wired to the 24V battery plant, it passes grid power straight through to your equipment in normal operation and picks up the load itself, in under 8 milliseconds, the moment the input fails.

Warranty

Warranty. Samlex America warrants the PSR-1200-24 for 2 years. Full terms are confirmed in writing with your quote.

A Full Backup Path in One Rack Unit

1U, short depth
At 1.73 inches tall and 15.24 inches deep, it takes the slot above the patch panel that nothing else wanted and leaves the rest of the rack alone.
Sub-8 ms handoff
The transfer relay moves the load between grid and inverter in less than 8 milliseconds, inside the hold-up time of typical equipment power supplies.
Three ways to configure
Set voltage, frequency, transfer behavior and alarm thresholds from the front panel, over USB, or through RS-232C for older site controllers.
  • Pure sine wave output, under 2% THD - clean power for receivers and switching supplies.
  • Load Safe brownout handling - a sagging grid triggers transfer before low voltage reaches the load.
  • Ethernet monitoring with e-mail alerts and SNMP trap generation for the NOC.
  • Detachable AC input cord supplied (IEC C13 to NEMA 5-15P); output from a NEMA 5-20R duplex receptacle.
  • ETL listed to UL 62368-1 and CSA C22.2 No. 62368-1; FCC Part 15(B) Class B.

Technical Specifications

Samlex PSR-1200-24 Specifications
Part NumberPSR-1200-24 (also searched as PSR 1200 24, PSR1200-24, PSR 1200)
Output WaveformPure sine wave, under 2% THD (inverter mode)
Continuous Power1200 W
Surge Power2000 W
AC Output100 - 120 VAC user selectable (default 120 VAC); 45 - 65 Hz (default 60 Hz); NEMA 5-20R duplex
DC Input24 VDC nominal, 20 - 34 VDC range; under 0.6 A no-load draw
AC InputProgrammed output voltage ±10%, 50/60 Hz; IEC C14 inlet, cord supplied
Transfer Relay16 A rating; under 8 ms switching; synchronized or unsynchronized
Peak EfficiencyOver 88%
Display2 x 16 character LCD; AC GRID, INVERTER, BYPASS and ALARM LEDs
MonitoringEthernet web page, e-mail notifications, SNMP traps; USB or RS-232C configuration
ProtectionsDC under and over voltage alarm and shutdown, overload, short circuit, over-temperature (auto reset), fan fault alarm
Alarm OutputSPDT relay contacts, 240 VAC 16 A
Operating Temperature-4°F to 122°F (-20°C to 50°C)
Dimensions19 x 15.24 x 1.73 inches, 1U (482 x 386.8 x 44 mm)
Weight12.8 lbs (5.8 kg)
StandardsETL listed to UL 62368-1 and CSA C22.2 No. 62368-1; FCC Part 15(B) Class B
Warranty2 years (Samlex America)
Technical Documentation
PSR-1200-24 Product Manual (PDF) · PSR-1200-24 Specification Sheet (PDF)

Where This Inverter Is Used

  • Remote telecom and radio sites - keeps the AC-fed gear on a shelf alive from the 24V string.
  • 24 volt solar installations - a grid-quality AC circuit from the battery bank, with utility or generator input through the relay.
  • Emergency backup for network equipment - modems, routers and monitoring gear stay up when the building loses power.

Ordering

Picking the right PSR. Stocked as a single-carton parcel shipment. Not sure between 1200 and 2200 watts, or between 24V and 48V input? Send your plant voltage and load list and we will size it with you. Multi-site quantities get a written quote in 24 to 48 hours.

Frequently Asked Questions

What fits inside 1200 watts?

More than most racks need. A base station, a router stack and a small switch might total 4 to 6 amps at 120 VAC, which is 500 to 720 watts. Check nameplate ratings, keep the steady total under 1200 watts, and let the 2000 watt surge rating cover the power-on spike.

When should I step up to the PSR-2200-24?

When the steady load approaches 1200 watts or you want growth headroom. The 2200 model nearly doubles the capacity and carries a 30 amp relay, at the cost of a second rack unit.

How do I wire the DC side?

Set-screw terminals with 7/16 inch cable holes take the battery conductors, with a separate chassis ground lug. Internal protection is four 20 amp fuses (80 amps total); size the cable to the manual's tables and fuse at the battery end.

Can the site controller switch it on and off?

Yes. The ENB terminals accept a contact closure to ground or an external 10 to 40 VDC signal, and faults report back through the SPDT alarm contacts, so existing supervisory systems can both control and watch it.

One rack unit between your gear and the next outage.

Order online, or send your plant voltage, load list and delivery ZIP and a battery specialist will confirm fit, pricing and lead time in writing, with no obligation to buy.

Call 1-877-775-4381  ·  battery specialists, not a call center
