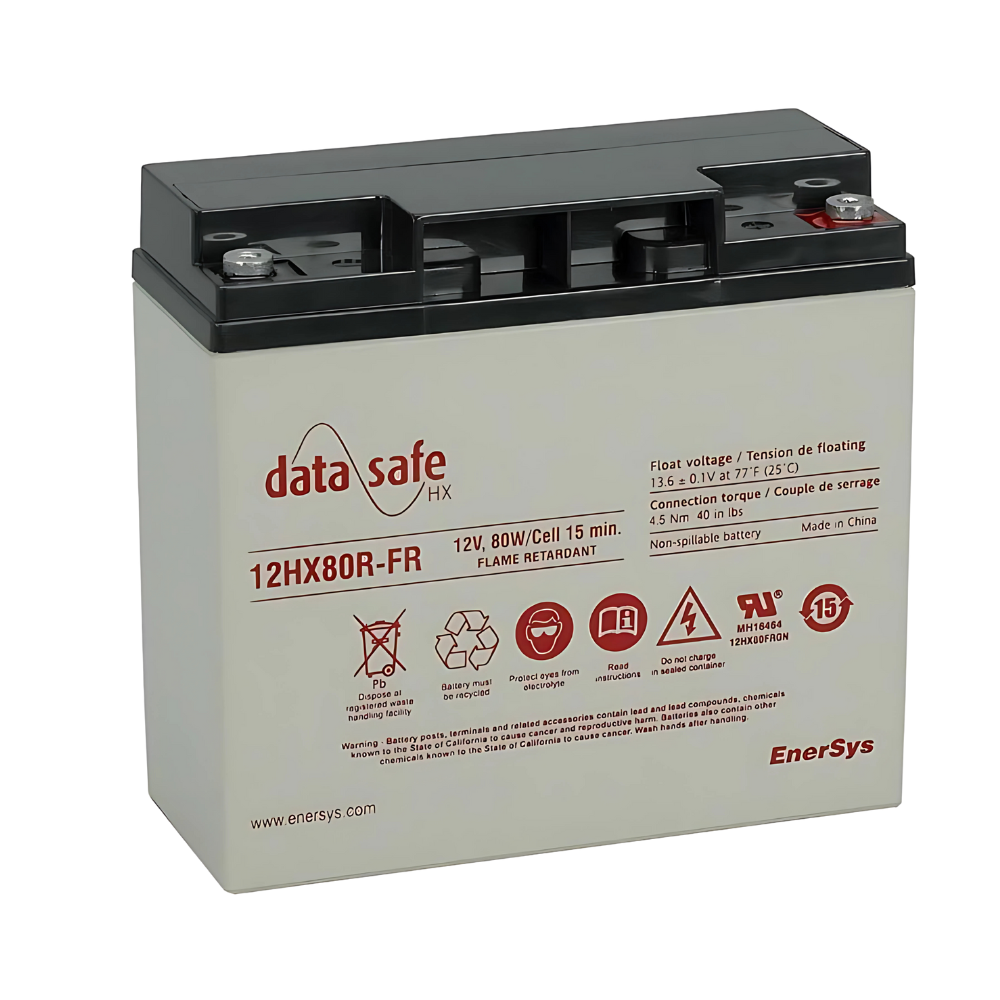

EnerSys DataSafe 12HX80R-FR 12V 80W UPS Battery - High Rate VRLA
EnerSys DataSafe 12HX80R-FR 12V 80W UPS Battery - High Rate VRLA
EnerSys DataSafe 12HX80R-FR 12V 80W UPS Battery - High Rate VRLA
Professional UPS Power at Exceptional Value. As battery specialists since 2010, we deliver competitive pricing on the EnerSys DataSafe 12HX80R-FR high-rate VRLA battery. This 12V 80W battery provides superior 15-minute rate performance optimized for critical UPS applications. Featuring UL94 flame retardant construction, brass insert terminals, and 10-year design life, get guaranteed compatibility with IT and data center systems at unbeatable value.
UL Listed
MH16464
Ships Fast
In Stock
Battery Specialist
Since 2010
10-Year Design
Professional Grade
Quick Specifications
Replaces: HX80, HX80R, 12HX80, 12HX80-RFR
Specifications: 12V, 18Ah @ 8hr rate, 80W @ 15min rate, Sealed Lead Acid VRLA
Dimensions: 7.10" × 3.00" × 6.60" (181mm × 76mm × 167mm)
Average Lifespan: 10-year design life in float service at 77°F
Compatibility: UPS systems, IT infrastructure, data centers, telecom equipment
Exceptional Value & Performance
High-rate performance
Safety certified
Professional reliability
100% initial capacity
Professional UPS Battery Features
- ✓ High-Rate Optimized: Computer-optimized electrochemistry for 80W @ 15-minute rate
- ✓ UL1778 Compliant: Flame retardant case and cover meet strict UL standards
- ✓ Self-Resealing Vents: Flame-arresting design prevents oxygen ingress
- ✓ AGM Technology: Absorbed Glass Mat separator for spill-proof operation
- ✓ Brass Insert Terminals: M5 bolt terminals ensure maximum conductivity
What's Included:
- • EnerSys DataSafe 12HX80R-FR VRLA Battery
- • M5 Insert Terminal Configuration
- • Professional Installation Guide
- • Safety Data Sheet
Clearly Specified Technical Details
| DataSafe 12HX80R-FR Complete Specifications | |
|---|---|
| Model Number | 12HX80R-FR (Also known as HX80, HX80R, 12HX80) |
| Chemistry | Valve Regulated Lead Acid (VRLA), AGM |
| Nominal Voltage | 12 Volts |
| Capacity @ 8hr Rate | 18 Ah to 1.75 VPC @ 77°F (25°C) |
| Power @ 15min Rate | 80 Watts to 1.67 VPC @ 77°F (25°C) |
| Terminal Type | M5 Insert (Brass) |
| Length | 7.10 inches (181 mm) |
| Width | 3.00 inches (76 mm) |
| Height | 6.60 inches (167 mm) |
| Weight | 14.0 lbs (6.4 kg) |
| Internal Resistance | 8.5 mΩ |
| Short Circuit Current | 1000 Amps |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Float Voltage | 2.25-2.28 VPC @ 77°F (25°C) |
| Design Life | 10 Years @ 77°F (25°C) |
| UL Listing | File No. MH16464 |
No Assembly
Ready to install
M5 terminals
Spill-Proof
AGM sealed
Non-spillable certified
Maintenance-Free
VRLA technology
No water needed
Advanced VRLA Construction Features
Professional-Grade AGM Technology
- • Absorbed Glass Mat Separator: Complete electrolyte absorption for spill-proof operation
- • High-Performance Positive Plates: Corrosion-resistant design for extended service life
- • Balanced Negative Plates: Optimum recombination efficiency
- • Gas Recombination: Minimal gas evolution allows cabinet installation
Safety & Compliance Features
- • UL94 Flame Retardant: Case and cover meet UL1778 requirements
- • Hermetically Sealed: Leak-resistant construction over product life
- • ISO Certified Manufacturing: ISO 9001:2008 and ISO 14001:2004
- • Non-Hazardous Shipping: IATA Special Provision A67 and 49 CFR approved
Value Comparison: DataSafe vs. Standard UPS Batteries
| Feature | DataSafe 12HX80R-FR | Standard UPS Batteries |
|---|---|---|
| High-Rate Performance | 80W @ 15-minute rate | Limited high-rate capacity |
| Safety Certification | UL1778 flame retardant | Basic safety features |
| Design Life | 10 years @ 77°F | 3-5 years typical |
| Initial Capacity | 100% from day one | May require conditioning |
| Terminal Type | Brass M5 insert | Basic terminals |
| Manufacturing Standards | ISO 9001 & 14001 | Varies by manufacturer |
Installation & Charging Requirements
The DataSafe 12HX80R-FR is designed for professional UPS installations. For optimal performance:
- • Float Voltage: Maintain 2.25-2.28 VPC at 77°F (25°C)
- • Temperature Range: -4°F to 122°F (-20°C to 50°C) operating
- • Storage: Can be stored up to 6 months at 77°F before freshening charge
- • High Current Recharge: Safely accepts high current rates for fast recovery
For professional UPS chargers, explore our 12V charger selection.
Guaranteed Compatibility & Applications
Direct Replacement For:
- EnerSys HX80, HX80R, 12HX80, 12HX80-RFR
- UPS systems requiring 12V 80W @ 15-minute rate
- IT infrastructure backup power systems
- Data center critical power applications
- Telecom and network equipment
Ideal Applications:
- UPS Systems: APC, Eaton, Liebert, Tripp Lite compatible
- IT Infrastructure: Server rooms and network closets
- Medical Equipment: Critical care backup power
- Emergency Systems: Fire alarms and security systems
- Industrial Controls: PLC and automation backup
Secure Checkout
SSL Encrypted • PCI Compliant
Frequently Asked Questions
Q: What battery replaces the EnerSys DataSafe 12HX80R-FR?
A: The 12HX80R-FR is also known as HX80, HX80R, 12HX80, and 12HX80-RFR. It's a direct replacement for any of these model numbers in UPS applications requiring 12V 80W @ 15-minute rate performance.
Q: Which UPS systems use the DataSafe 12HX80R-FR battery?
A: This battery is designed for professional UPS systems from APC, Eaton, Liebert, and Tripp Lite that require high-rate 12V batteries with 80W @ 15-minute rate capability.
Q: How long does the DataSafe 12HX80R-FR last in service?
A: The 12HX80R-FR has a 10-year design life in float service at 77°F (25°C). Actual life varies based on temperature, discharge depth, and maintenance practices.
Q: What are the exact dimensions of the DataSafe 12HX80R-FR?
A: The battery measures 7.10" L × 3.00" W × 6.60" H (181mm × 76mm × 167mm) and weighs 14.0 lbs (6.4 kg), with M5 insert terminals for secure connections.
Q: Why is flame retardant construction important for UPS batteries?
A: The UL94 flame retardant case meets UL1778 requirements for UPS installations, providing critical fire safety in IT environments, data centers, and enclosed cabinets where batteries are installed.
Why Choose Tech Battery Solutions
Battery Specialists Since 2010
With extensive experience in UPS battery solutions, we understand the critical nature of reliable backup power. Our partnership with EnerSys ensures you receive genuine DataSafe products with full manufacturer specifications.
Expert Support & Fast Shipping
The DataSafe 12HX80R-FR ships from our warehouse with tracking provided. Need help selecting the right UPS battery? Our specialists can guide you through compatibility and help optimize your emergency power infrastructure.
Professional UPS Power You Can Trust
The EnerSys DataSafe 12HX80R-FR delivers exceptional 80W high-rate performance with 10-year design life reliability. Featuring UL1778 flame retardant construction, 100% initial capacity, and professional-grade AGM technology, it's the ideal choice for critical UPS applications. As battery specialists since 2010, we guarantee compatibility and provide expert support for your power protection needs.
