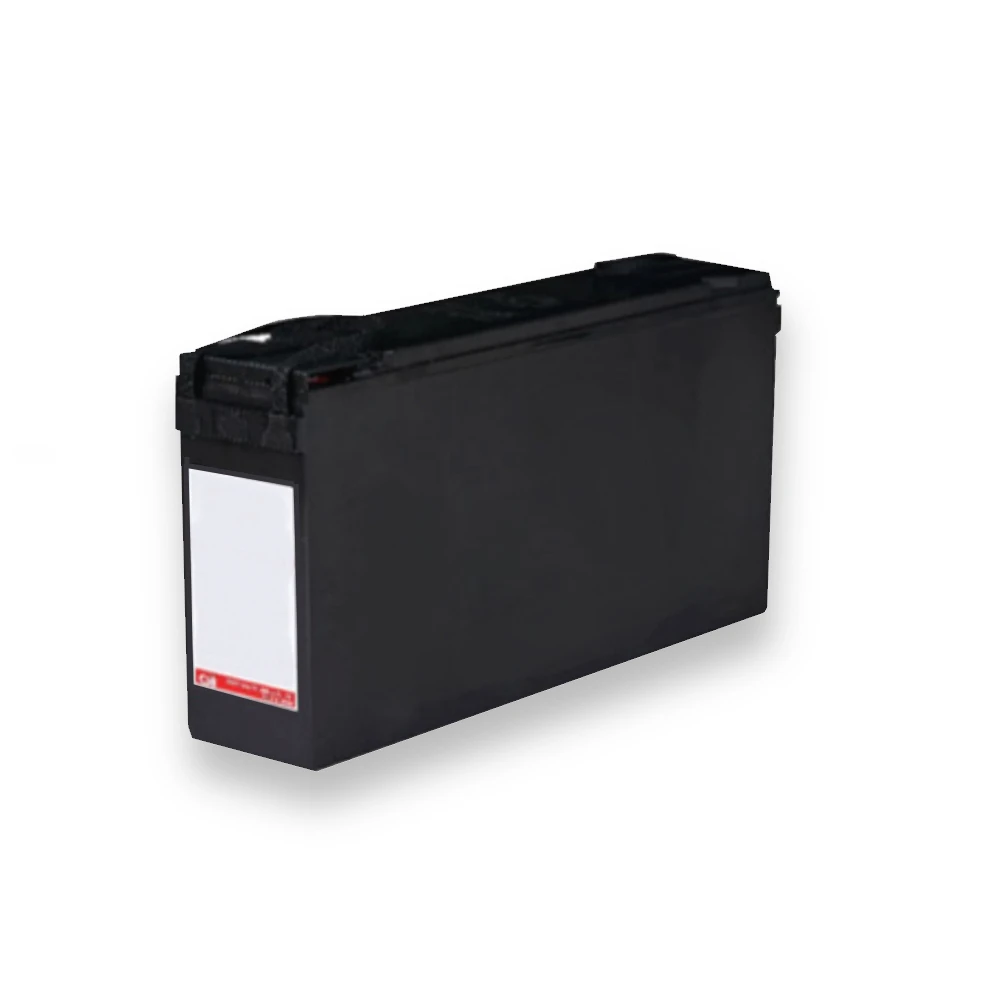

CSB XPL8000FT 12V Front Terminal Battery - Data Center Power
CSB XPL8000FT 12V Front Terminal Battery - Data Center Power
CSB XPL8000FT Battery - 12V 195 Ah Front Terminal Extreme Power AGM
Warranty
Built for the Front of the Rack
- 195 Ah at the 20 hour rate - to 1.75 volts per cell at 25°C, from the CSB price list, since the per-part datasheet rates this series in watts only.
- 2.17 milliohms internal - low for the capacity, which matters on the long strings these blocks are normally built into.
- 4,570 amps of short circuit current - carry this figure into protective device coordination before the bank is energized.
- 66.70 amps maximum charge current - the recovery ceiling, and the specification that usually sizes the rectifier on a bank this large.
- 21.97 inches deep - measure rack depth including the terminal hardware and cable bend radius, because depth is the binding dimension on this case.
Technical Specifications
| CSB XPL8000FT Specifications | |
|---|---|
| Part Number | XPL8000FT (also searched as XPL 8000FT, XPL8000FTFR and xpl8000ft; CSB prints the flame retardant build as XPL 8000FTFR) |
| Series | XPL, Extreme Power long life, front terminal |
| Battery Type | AGM, valve regulated lead acid (VRLA), pure lead construction |
| Nominal Voltage | 12V |
| Nominal Capacity | 195 Ah at the 20-hour rate to 1.75 VPC at 25°C (77°F), per the CSB price list; the per-part datasheet rates this series in watts only |
| Watts Per Cell, 15 Minutes | 821 W to 1.67 VPC at 25°C |
| Watts Per Cell, 5 Minutes | 1,287 W to 1.67 VPC at 25°C |
| Watts Per Cell, 30 Seconds | 1,831 W to 1.67 VPC at 25°C |
| Maximum Charge Current | 66.70 A |
| Maximum Discharge Current | 1660 A (5 second rate) |
| Short Circuit Current | 4,570 A |
| Internal Resistance | Approximately 2.17 milliohms |
| Terminal Type | Front terminal, I2 threaded lead alloy insert, accepts an M6 bolt |
| Terminal Torque | 44.9 ±9.0 lbf-in (51.7 ±10.3 kgf-cm, 5.10 ±1.0 N-m) |
| Length | 21.97 inches (558.0 mm) |
| Width | 4.96 inches (126.0 mm) |
| Height | 12.72 inches (323.0 mm) |
| Weight | 143.96 lbs (65.30 kg) |
| BCI Group Size | 23 inch rack |
| Float Charging Voltage | 13.5 to 13.8 VDC per battery at 25°C (77°F) |
| Equalization Charging Voltage | 14.4 to 15.0 VDC per battery at 25°C (77°F) |
| Operating Temperature | Nominal 25°C (77°F); discharge -15°C to 50°C (5°F to 122°F); charge and storage -15°C to 40°C (5°F to 104°F) |
| Self Discharge | Less than 10 percent after 90 days at 25°C; storable to six months before a full recharge |
| Container Material | Polypropylene (UL 94-HB); flame retardant 94-V0 available on request |
| Standards | IEC 60896-21/22:2004; UL1973 Listed (MH66728); UL1989 Recognized (MH14533); TUV NORD to ISO 9001:2015 |
| Design Life | Up to 10 years in standby service at 25°C; greater than 12 years on the Eurobat 20°C basis |
| Warranty | 5 years (CSB, XPL Extreme Power range) |
| Country of Origin | Taiwan |
Where This Battery Is Used
- 23 inch telecom racks - front access installs where a technician has to reach every terminal from the aisle.
- Data center battery cabinets - purpose-built enclosures where blocks are racked horizontally and serviced in place.
- Central office DC plant - 48 volt strings on long float intervals, with maintenance driven by impedance trending.
Ordering and Freight
Frequently Asked Questions
What does front terminal change day to day?
Maintenance. On a top terminal block in a rack you either work blind over the top of the case or pull the unit, and at 143.96 lbs pulling it is a two person job with a lift. Front terminals put both posts at the aisle face, so torque checks, impedance readings and cable work all happen with the block in place. On a bank of forty that is the difference between a routine inspection and a planned outage.
Will it fit a standard 19 inch rack?
Not as designed. The case is 21.97 inches long and CSB builds this line for 23 inch racks and purpose-built battery cabinets. In a 19 inch rack the depth becomes the problem rather than the width, because the terminals and cable bend radius add to that 21.97 inches. Send the rack model and we will confirm the fit in writing before anything ships.
How does the 8000FT compare with the 9000FT?
Identical case, identical footprint, identical weight class within about 9 pounds. The 9000FT delivers 907 watts per cell at 15 minutes against 821 and 200 Ah against 195, with lower internal resistance at 1.86 milliohms against 2.17. So the larger block is a straight upgrade in the same rack space, and the decision is budget and load rather than fit.
What float and charge settings does it need?
Float at 13.5 to 13.8 VDC per battery and equalize at 14.4 to 15.0 VDC per battery, both at 25°C, with charge current held at or under 66.70 amps. On a bank this size the rectifier is usually the limiting factor rather than the blocks, so send its rating with your enquiry and a specialist will confirm the recharge time you should expect.
Send the rack depth, the shelf rating and the load you need to carry. A specialist confirms the block fits and sizes the string in writing, with no obligation to buy.
