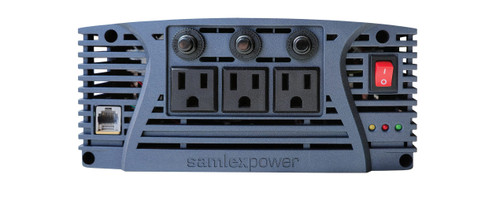

NTX-3000S-12 front panel with three 15A outlets and circuit breakers
NTX-3000S-12 rear panel with M9 DC input terminals and cooling fan
NTX-RC LCD remote control included with Samlex NTX-3000S-12
Samlex NTX-3000S-12 3000 watt pure sine wave inverter 12V
NTX-3000S-12 front panel with three 15A outlets and circuit breakers
NTX-3000S-12 rear panel with M9 DC input terminals and cooling fan
NTX-RC LCD remote control included with Samlex NTX-3000S-12

  • Free Shipping

    Orders $75 & Up

  • 30-day Money Back

    Guarantee*

  • 100% Secure Online Shopping

    SSL - Verified Merchant

Samlex NTX-3000S-12 3000 Watt Pure Sine Wave Inverter, 12V, LCD Remote Included

$1,089.60
$872.00
(You save $217.60 )
SKU: NTX-3000S-12
Availability: Usually ships in 24 hours
Shipping: Free shipping on orders $75 and up
Input Voltage: 12 VDC
Output: 115 VAC Pure Sine Wave
Continuous Power: 3000 W
Surge Power: 6000 W
AC Outlets: 3 x 15A Breaker Protected
Remote Control: NTX-RC LCD Remote Included
Samlex NTX-3000S-12 3000 Watt Pure Sine Wave Inverter, 12V, LCD Remote Included

Samlex NTX-3000S-12 3000 Watt Pure Sine Wave Inverter, 12V, LCD Remote Included

$1,089.60
$872.00
(You save $217.60 )
Adding to cart… The item has been added
Description

Samlex NTX-3000S-12 - 3000W Pure Sine Wave Power Inverter, 12V

At 3000 watts you stop planning your day around the inverter: the saw, the battery charger, and the microwave run at the same time instead of taking turns. The Samlex NTX-3000S-12 is a 3000 watt pure sine wave inverter that converts a 12 volt battery bank into 115V AC clean enough for anything with a circuit board. Its front panel carries three standard household outlets, each behind its own 15 amp breaker, so equipment plugs straight into the unit with no hardwired sub-panel between them. And at 12 pounds, it bolts flat into a truck compartment or equipment bay you already have.

Warranty

Warranty. Samlex America warrants the NTX-3000S-12 for 2 years. Full terms are confirmed in writing with your quote.

Built to Run a Full Load List

Clean power for circuit boards
The output is a true sine wave, the same shape the grid delivers. Laptops, CPAP machines, and variable-speed tools run at wall-outlet quality.
6000 W Hypersurge™ startup
Compressors and pumps demand a spike of current in their first second. Samlex Hypersurge technology holds double the continuous rating just long enough to get them spinning.
Three outlets, three breakers
Each receptacle has a dedicated 15 amp circuit breaker. An overload on one tool trips one breaker, not the whole panel.
  • NTX-RC wired LCD remote included - the same remote earlier NTX models use, so this unit drops into an existing NTX installation without rewiring the control run.
  • Full protection set: low and high input voltage shutdown, overload, short circuit and ground fault shutdown (manual reset), over-temperature shutdown (auto reset).
  • Variable speed fan tracks load and temperature, so at partial loads the inverter stays close to silent.
  • ETL listed to UL 458 and CSA C22.2 No. 107.1; FCC Part 15(B) certified against electrical interference.

Technical Specifications

Samlex NTX-3000S-12 Specifications
Part NumberNTX-3000S-12 (also searched as NTX 3000S 12, NTX3000S-12, NTX 3000S)
Output WaveformPure sine wave
Continuous Power3000 W
Surge Power6000 W (less than 1 second)
DC Input Voltage12 VDC nominal, 10.5 - 16.3 VDC operating range
DC Input Current300 A at rated load; under 1.1 A at no load
AC Output115 VAC, 60 Hz
Peak Efficiency90.5%
AC Outlets3 NEMA 5-15R receptacles, each with a 15 A circuit breaker
ProtectionsLow voltage alarm 11.0 VDC, shutdown 10.5 VDC; high voltage shutdown 16.3 VDC; overload, short circuit and ground fault (manual reset); over-temperature (auto reset)
Remote ControlNTX-RC wired LCD remote, included (RJ-45 port)
Operating Temperature-13°F to 122°F (-25°C to 50°C)
Dimensions8.50 x 17.75 x 3.62 inches (216 x 451 x 92 mm)
Weight12.0 lbs (5.5 kg)
StandardsETL listed to UL 458 and CSA C22.2 No. 107.1; FCC Part 15(B) Class A
Warranty2 years (Samlex America)
Technical Documentation
NTX-3000S-12 Product Manual (PDF) · NTX-3000S-12 Specification Sheet (PDF)

Where This Inverter Is Used

  • Construction sites and field work - corded saws, drills, and tool-battery chargers running off the truck instead of a generator.
  • Service vehicles and mobile offices - diagnostic gear, printers, and computers on clean AC wherever the job is.
  • RVs, campers, and boats - the house bank covers the galley and electronics between shore hookups.
  • Telecom sites and emergency backup - keeps critical equipment and home electronics up through an outage.

Ordering

Sizing check before you buy. If your combined running watts stay under 2000, the NTX-2000-12 saves money and cuts your amp draw. If a single big motor load needs more than 6000 starting watts, ask us about the 5000 watt SMH-5000X-12 instead. We will run your load list with you before you order. For fleet and volume orders, send the quantity and your delivery ZIP and a battery specialist will return a written quote in 24 to 48 hours.

Frequently Asked Questions

What is the difference between the NTX-3000S-12 and the NTX-3000-12?

The output connections. The NTX-3000S-12 has three standard NEMA 5-15R household receptacles, each with its own 15 amp breaker, so equipment plugs in directly. The NTX-3000-12 instead has a single NEMA L5-30R twist-lock receptacle for feeding a hardwired circuit or transfer switch. Power ratings, dimensions, and the included remote are the same on both.

Can I pull the full 3000 watts from one outlet?

No. Each receptacle is limited by its 15 amp breaker to roughly 1700 watts at 115V. To use the full 3000 watt rating, spread your loads across two or three of the outlets.

How long will my batteries run it?

Divide your usable amp-hours by the DC draw. At full output the NTX-3000S-12 pulls around 300 amps from the 12V side, so a pair of 100Ah AGM batteries discharged to 50% gives about 20 minutes at full tilt, but several hours at a few hundred watts. Send us your load list and we will size the battery bank before you commit.

What else do I need to install it?

Heavy DC cabling, a fuse rated for the 300 amp draw, and clean connections to the M9 nut-and-bolt input terminals. Samlex's DC-3500-KIT 400A installation kit covers cable, fuse, and lugs in one box. Keep the DC run short; the AC side needs nothing special.

Need 3000 watts you can plug straight into?

Order online, or send your load list, quantity and delivery ZIP and a battery specialist will confirm sizing, pricing and lead time in writing, with no obligation to buy.
