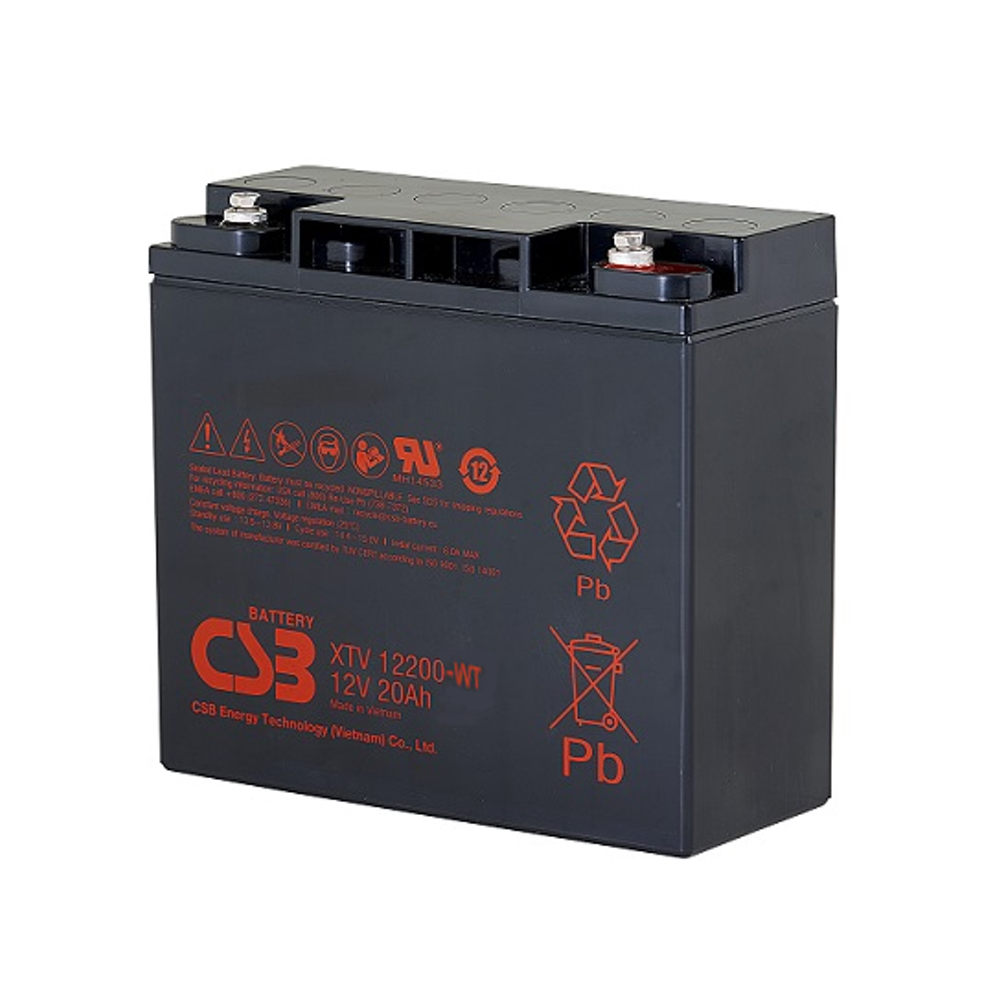

CSB XTV 12200-WT 12V 20AH AGM Wind Turbine Battery - Extreme Temperature

$73.95
SKU: XTV12200-WT
Availability: Request Quote For Availability
Minimum Purchase: 4 units
Shipping: Free shipping on orders $75 and up
Voltage: 12
Capacity: 20.0 Ah (20-hour rate to 1.75 VPC at 25C, WT datasheet); 424 W per battery (15-min to 1.67 VPC)
Chemistry: AGM VRLA, pure lead construction
Terminal: I1 threaded lead alloy insert, M5 bolt, 3.0 +/- 0.6 N m
Features: Wind turbine build, -20C to 50C charge and discharge, flame retardant case standard, build-to-order at CSB, 3-year CSB term
Dimensions: 7.12 x 2.99 x 6.50 in (L x W x H)
Design Life: Up to 12 years standby at 25C; Eurobat 20C greater than 12 years
Group Size: M17
CSB XTV 12200-WT 12V 20AH AGM Wind Turbine Battery - Extreme Temperature

CSB XTV 12200-WT 12V 20AH AGM Wind Turbine Battery - Extreme Temperature

$73.95
Adding to cart… The item has been added
Description

CSB XTV12200-WT Battery - 12V 20Ah Wind Turbine AGM, I1 Insert

The XTV12200-WT is the largest block in CSB's wind turbine range and the only one on a threaded insert rather than a Faston tab. It is a 12 volt, 20 amp hour AGM battery that shares its discharge tables with the standard XTV12200, 424 watts per battery over 15 minutes to 1.67 volts per cell and 13.1 amps for an hour, and adds the WT build CSB specifies for a turbine hub: pure lead construction for charging efficiency, operation under constant vibration and cycle performance, in a flame retardant case as standard. The terminal is CSB's I1 threaded lead alloy insert for an M5 bolt, torqued to 3.0 newton meters (26.4 inch pounds), and that insert is the detail that decides whether an existing pitch pack harness carries over. It weighs 14.00 lbs in a 7.12 by 2.99 by 6.50 inch case, group M17 on the CSB price list, and is a build-to-order part, so it is ordered against a lead time rather than pulled from stock.

Warranty

Warranty. CSB gives 3 years on the XTV-WT range, built in Vietnam, and this part carries that term. Design life is a separate figure on a separate basis: up to 12 years in standby service at 25°C (77°F). Terms are confirmed in writing with your quote.

The Block on an Insert

424 watts at 15 minutes
Per battery to 1.67 volts per cell, the highest 15 minute figure in the WT range, for the largest pitch drives.
I1 insert, M5 bolt
I1 threaded lead alloy insert for an M5 bolt, torqued to 3.0 ± 0.6 N m. Every other WT block is on an F2 tab, so this is the one that changes the harness.
Build-to-order
Non-stock at CSB, packed 4 to a master carton. Lead time is quoted per order; the stocked WT blocks are the 7.2 and 12 Ah.
  • 20 Ah nominal at the 20 hour rate - to 1.75 volts per cell at 25°C, with 20.0 Ah on the datasheet capacity table and 18.4 Ah at the 8 hour rate.
  • 424 watts per battery at 15 minutes - to 1.67 volts per cell, and 406 watts to 1.75, from the WT series tables. The standard XTV12200 tables read the same.
  • 230 amps maximum discharge - with 591 amps of short circuit current and an internal resistance of approximately 12.2 milliohms.
  • 6.0 amps maximum charge current - the recharge ceiling for the pitch system charger after a feathering cycle.
  • Less than 10 percent self-discharge over 90 days - storable for 6 months at 25°C before a full recharge is required.

Technical Specifications

CSB XTV12200-WT Specifications
Part NumberXTV12200-WT (also written XTV12200WT, XTV 12200-WT, XTV12200WTFR, XTV12200 WT and xtv12200-wt)
SeriesXTV-WT, Extreme Temperature, wind turbine, 12 volt top terminal
Battery TypeAGM, valve regulated lead acid (VRLA), pure lead construction
Nominal Voltage12V
Capacity, 20 Hour Rate20.0 Ah to 1.75 VPC at 25°C (CSB WT datasheet; price list lists 20 Ah)
Capacity, 8 Hour Rate18.4 Ah to 1.75 VPC; 18.0 Ah to 1.80 VPC
Watts Per Battery, 15 Minutes424 W to 1.67 VPC; 406 W to 1.75 VPC at 25°C (CSB XTV-WT tables, RA240531)
Discharge Current, 60 Minutes13.1 A to 1.67 VPC at 25°C
Discharge Current, 5 Hours3.47 A to 1.67 VPC at 25°C
Maximum Charge Current6.0 A
Maximum Discharge Current230 A
Short Circuit Current591 A
Internal ResistanceApproximately 12.2 milliohms
Terminal TypeI1 threaded lead alloy insert to accept an M5 bolt (CSB WT datasheet RA240618; the CSB price list column reads B1)
Terminal Torque3.0 ± 0.6 N m (26.4 ± 5.3 lbf in; 30.4 ± 6.1 kgf cm)
Length7.12 ± 0.08 inches (181.0 ± 2.0 mm)
Width2.99 ± 0.04 inches (76.0 ± 1.0 mm)
Height6.50 ± 0.08 inches (165.0 ± 2.0 mm)
Weight14.00 lbs (6.35 kg)
BCI Group SizeM17 (CSB price list)
Float Charging Voltage13.5 to 13.8 VDC per battery at 25°C (77°F)
Equalization Charging Voltage14.4 to 15.0 VDC per battery at 25°C (77°F)
Operating TemperatureDischarge and charge -20°C to 50°C (-4°F to 122°F); storage -15°C to 40°C (5°F to 104°F)
Self DischargeLess than 10 percent after 90 days; store up to 6 months at 25°C, then recharge fully before use
Container MaterialABS, flame retardant to UL 94-V0, standard on the WT build
StandardsIEC 61056-1/2:2012; UL1989 Recognized (MH14533)
Design LifeUp to 12 years in standby service at 25°C; greater than 12 years on the Eurobat 20°C basis
Warranty3 years (CSB, XTV-WT)
Country of OriginVietnam
Stock Status at CSBBuild-to-order (CSB price list), packed 4 to a master carton
Technical Documentation
CSB XTV-WT series extended discharge tables (PDF)

Where This Battery Is Used

  • Pitch system packs on larger turbines - series strings in the hub where the blade mass and the feathering time call for a 20 Ah block and the drive maker specifies a bolted connection.
  • Nacelle backup for converter and control cabinets - equipment that has to ride through the same event as the pitch pack, in the same vibration.
  • Pack rebuilds on a 20 Ah drawing - like-for-like replacement of an aged bolted 20 Ah set, where the terminal and the case dimensions above decide whether the harness and tray are kept.

Ordering and Freight

CSB packs this part 4 to a master carton at 60 lbs and builds it to order, so a pitch pack is quoted against a lead time and shipped as cartons by parcel carrier or, for a fleet, as a pallet by LTL, where a residential or limited-access delivery adds $100 for the liftgate and access charge the carrier passes through. A wind site counts as limited access. Send the quantity, the ZIP, the turbine model and the date the pack has to be back in service, and a specialist confirms the build slot with CSB and comes back with pricing, lead time and freight in writing in 24 to 48 hours.

Frequently Asked Questions

Is this a gel battery? Older listings say so.

No. CSB's earlier XTV literature described the range with the phrase "hybrid gel technology", and that wording has outlived the sheets it came from. The current CSB datasheet for the WT parts describes absorbent glass mat construction with pure lead, and the battery charges on the AGM float window of 13.5 to 13.8 volts per battery. A gel charge profile, which typically runs lower, would leave this block undercharged in a pitch pack. Set the charger for AGM.

Does the terminal match the standard XTV12200?

Yes. Both carry CSB's I1 threaded lead alloy insert for an M5 bolt, at the same 3.0 newton meter torque, in the same 7.12 by 2.99 by 6.50 inch case at the same 14.00 lbs. One note for anyone reading the CSB price list: its terminal column shows B1 for the 12200-WT where the datasheet for the part shows I1, and the datasheet is the document to build the harness from. Use a bolt long enough to seat in the insert without bottoming, and torque it to the figure rather than to feel, because an over-torqued lead alloy insert strips.

Can I use the standard XTV12200 instead and skip the lead time?

Electrically the two parts share their discharge tables, so a stationary cabinet on the ground gets the same runtime from either, and the standard part is on the same 3 year term. What the standard part does not carry is CSB's WT build, whose stated purpose is charging efficiency, high vibration operation and cycle life, and a rotating hub is the place those matter. For a hub, specify the WT part and plan the lead time. For a cabinet, the standard XTV12200 is the quicker path and there is a page for it below.

How does a 20 Ah block change the pack?

Fewer blocks for the same string capacity, or the same count for a longer feathering reserve, and more weight per block in the hub. At 14.00 lbs each, four of these in a carton weigh what nine or ten of the 12 Ah blocks do, so the pitch drive manufacturer's pack specification, not the battery, decides which block the string is built from. Send the drive model with the request and a specialist checks the count before anything is ordered.

The standard version: CSB XTV12200Same 20 Ah and 424 watts per battery at 15 minutes, standard XTV float build on an I1 insert, for cabinets on the ground. The stocked WT block: CSB XTV12120F2FR-WT12 Ah and 267 watts per battery at 15 minutes on an F2 tab, a CSB stock item.
Building a 20 Ah pitch pack?

Send the turbine model, the count per hub and the terminal type on the existing blocks. A specialist confirms the build lead time with CSB and quotes the set in writing.
