C&D Technologies SGC12-70 Battery
C&D Technologies SGC12-70 Battery

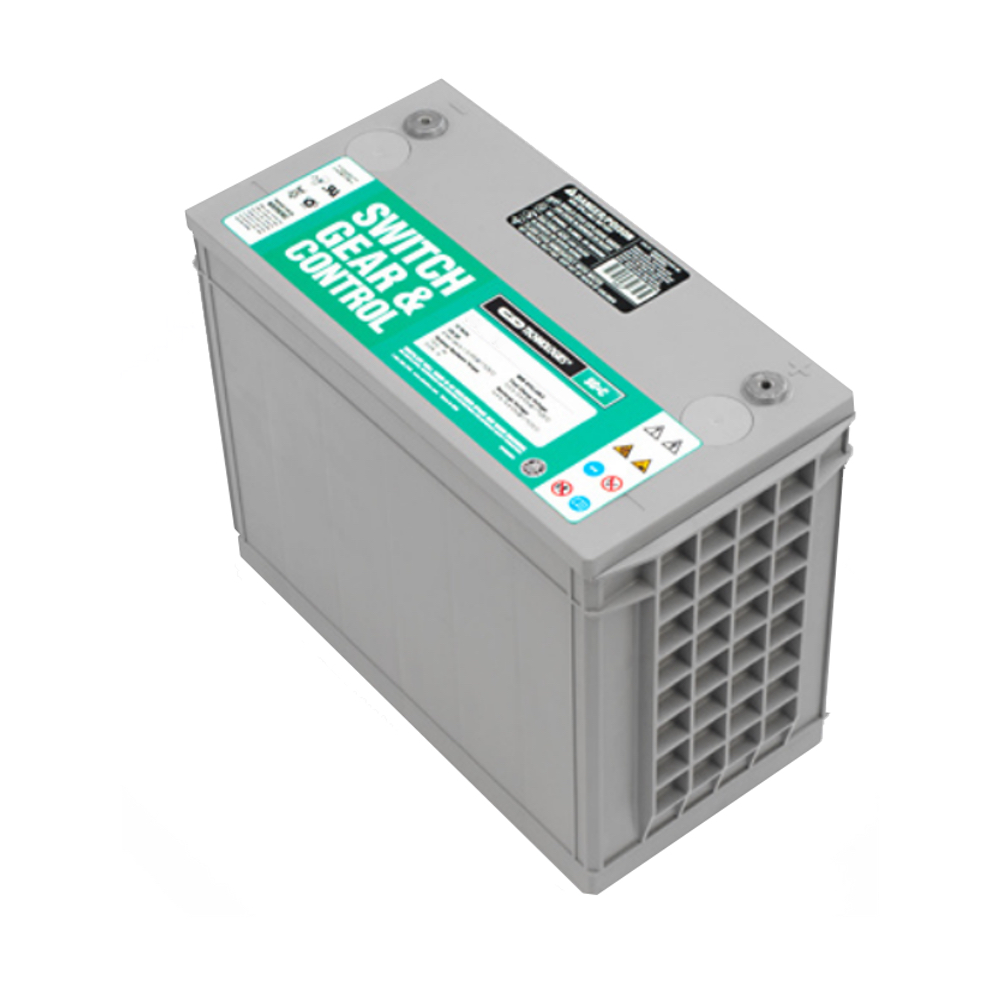

C&D Technologies SGC12-70 Battery - 12V 69.1 Ah Switchgear and Control AGM
Warranty
Sized for Trip and Close Duty
- Float band 13.5 to 13.8 VDC per unit - average at 77°F (25°C), with equalization and cycle service charging at 14.4 to 14.8 VDC per unit.
- UL recognized component - C&D lists compliance with UL1778, UL924, UL1989 and UL94 across the SGC series.
- Flame-retardant polypropylene case - UL94 V-0 with a limiting oxygen index greater than 28, and self-extinguishing features in the case and cover.
- Threaded copper alloy inserts - C&D states the inserts remove the connection re-torque requirement, on a case-to-cover bond that is thermally welded for a leak-free seal.
- Charger ripple limits - 0.5 percent RMS or 1.5 percent peak to peak of float voltage recommended, with 4 percent P-P and C/20 RMS current as the published maximums.
Technical Specifications
| C&D SGC12-70 Specifications | |
|---|---|
| Part Number | SGC12-70 (also searched as SGC 12-70 and SGC1270; C&D prints the part as SGC 12-70 on its own datasheet) |
| Series | SGC switchgear and control, top terminal |
| Battery Type | AGM, valve regulated lead acid (VRLA), gas recombination of 99 percent plus |
| Nominal Voltage | 12V (6 cells per unit) |
| Nominal Capacity | 69.1 Ah at the 8-hour rate to 1.75 VPC at 77°F (25°C) |
| Constant Current to 1.75 VPC | 198.8 A at 1 min, 117.3 at 15 min, 75.7 at 30 min, 46.8 at 1 hr, 27.5 at 2 hr, 19.8 at 3 hr, 15.6 at 4 hr, 12.9 at 5 hr, 8.6 at 8 hr, 6.0 at 12 hr |
| Constant Current to 1.80 VPC | 178.9 A at 1 min, 108.0 at 15 min, 71.0 at 30 min, 44.5 at 1 hr, 8.4 at 8 hr |
| Constant Current to 1.85 VPC | 163.4 A at 1 min, 100.1 at 15 min, 66.3 at 30 min, 41.8 at 1 hr, 8.1 at 8 hr |
| Constant Current to 1.90 VPC | 147.1 A at 1 min, 89.4 at 15 min, 61.2 at 30 min, 39.5 at 1 hr, 7.7 at 8 hr |
| Maximum Discharge Current | 800 A |
| Short Circuit Current | 3,100 A at 0.1 second |
| Impedance | 0.0050 ohms at 60 Hz |
| Terminal Type | Top terminal, threaded copper alloy insert, 1/4-20 UNC by 3/4 inch screws |
| Terminal Torque | 110 in-lbs (12.4 N-m) |
| Length | 10.26 inches overall, 10.17 inches across the case body |
| Width | 6.83 inches overall, 6.65 inches across the case body |
| Height | 7.89 inches to the cover, 8.01 inches overall |
| Weight | 55.8 lbs (25.3 kg) |
| Float Charging Voltage | 13.5 to 13.8 VDC per unit average at 77°F (25°C) |
| Equalization Charging Voltage | 14.4 to 14.8 VDC per unit average at 77°F (25°C) |
| Maximum Charging Current | C/5 amperes at the 20-hour rate |
| Operating Temperature | Discharge -40°F to +160°F (-40°C to 71°C); charge -10°F to +140°F (-23°C to 60°C); normal +74°F to +80°F (23°C to 27°C) |
| Standards | UL recognized component; UL1778, UL924, UL1989, UL94; case and cover UL94 V-0, limiting oxygen index >28 |
| Transport | IATA/ICAO Special Provision A67 by air; non-hazardous under DOT 49 CFR parts 171-189 by surface; IMDG exception 238 by water |
| Rack Systems | RBW1T (48V, 4 jars, 1 tier) and RBW2T (120V, 10 jars, 2 tiers); RBW1TEQ and RBW2TEQ in seismic zones 1 to 4 |
| Design Life | No published figure on C&D's 2022 SGC datasheet |
| Warranty | 2 years full replacement (C&D Form RS02051, SGC series) |
| Minimum Order | 4 units |
Where This Battery Is Used
- Electric utility substations - trip and close power for breakers held on a maintained float, the duty C&D built the SGC series around.
- Telephone backup and microwave sites - small DC plants where the bank is four or ten jars in a cabinet rather than a room.
- Signaling sites and offshore platforms - remote control power in enclosures visited on a maintenance schedule, not daily.
Ordering and Freight
Frequently Asked Questions
How long will an SGC12-70 hold a 20 amp load?
A little under three hours to 1.75 volts per cell at 77°F. C&D's table gives 27.5 amps for two hours and 19.8 amps for three, so a steady 20 amp draw lands just inside the three-hour column. Use the end point your relay or charger trips at: at 1.90 volts per cell the same jar gives 24.2 amps for two hours and 17.3 for three, and a 20 amp load then falls closer to two and a half.
Does an SGC12-70 need watering or electrolyte checks?
No. It is a valve regulated AGM jar with the electrolyte held in the glass mat and gas recombination running above 99 percent, so C&D lists no electrolyte maintenance for the series and there is nothing to top up. Maintenance is connection checks, voltage and impedance readings, and keeping the float inside 13.5 to 13.8 VDC per unit. The absence of free electrolyte is also why a damaged case does not put acid on the cabinet floor.
Is there an SGC model between the 70 and the 90?
Yes. C&D's 2022 sheet lists an SGC 12-80 at 79.0 Ah on the same 8-hour basis, 66.6 lbs, 3,300 amps short circuit and 0.0040 ohms, in a 12.04 by 6.83 inch case. We do not carry a page for it. If the 70 comes up short on a sizing calculation and the 90 overshoots the rack, ask a specialist to price the 80 alongside the two.
Does an SGC12-70 bank need a dedicated battery room?
C&D states the SGC series can be used in rooms with normal ventilation, mounted on racks or in cabinets, and that a separate battery room is not required. That is what puts four jars in a relay house cabinet instead of a purpose-built room. Local electrical code and the site's own standard still govern, so confirm the installation with whoever signs off the substation drawings.
