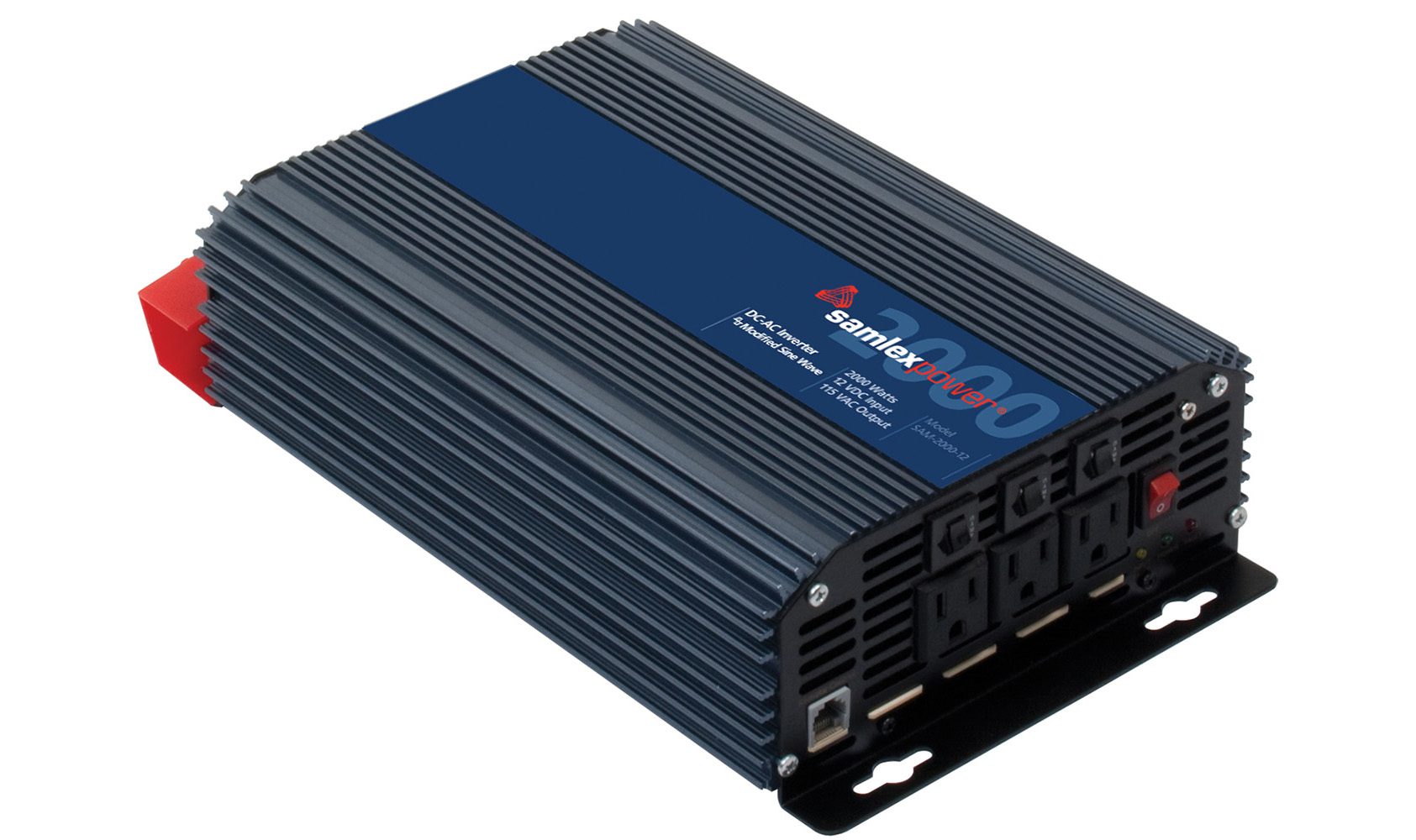

Samlex SAM-2000-12 2000 watt modified sine wave inverter with three outlets
SAM-2000-12 rear panel with M9 DC terminals and cooling fans
Samlex SAM-2000-12 2000 watt modified sine wave inverter with three outlets
SAM-2000-12 rear panel with M9 DC terminals and cooling fans

  • Free Shipping

    Orders $75 & Up

  • 30-day Money Back

    Guarantee*

  • 100% Secure Online Shopping

    SSL - Verified Merchant

Samlex SAM-2000-12 2000 Watt Modified Sine Wave Inverter, 12V, 3 Outlets, Remote Ready

$469.00
$376.00
(You save $93.00 )
SKU: SAM-2000-12
Availability: Usually ships in 24 hours
Shipping: Free shipping on orders $75 and up
Input Voltage: 12 VDC
Output: 120 VAC Modified Sine Wave
Continuous Power: 2000 W
Surge Power: 4000 W
AC Outlets: 3 x NEMA 5-15R
Remote Control: Port included; optional SAM-RC
Samlex SAM-2000-12 2000 Watt Modified Sine Wave Inverter, 12V, 3 Outlets, Remote Ready

Samlex SAM-2000-12 2000 Watt Modified Sine Wave Inverter, 12V, 3 Outlets, Remote Ready

$469.00
$376.00
(You save $93.00 )
Adding to cart… The item has been added
Description

Samlex SAM-2000-12 - 2000W Modified Sine Wave Power Inverter, 12V

Three outlets and 2000 continuous watts put the SAM-2000-12 at the top of Samlex's 12 volt modified sine line short of the 3000. That third receptacle is the practical difference: the fridge, the work light and the battery charger each get their own plug, no power strip required. Full output pulls 200 amps of DC, so this is a battery-bank inverter, planned into a system rather than tossed behind a seat. Order online, or request a written system quote in 24 to 48 hours.

Warranty

Coverage terms. Samlex America provides 2 years of warranty on the SAM-2000-12, and the full written document is included with every quote we send.

Top of the 12V SAM Range

Three separate outlets
Plug in three loads directly and share 2000 watts among them, instead of daisy-chaining strips off a two-outlet unit.
4000 watt surge ceiling
The one-second allowance is the largest in the SAM 12 volt family, covering compressor and pump starts that smaller units latch off on.
Ten-fuse DC protection
350 amps of internal fusing (10 x 35 A) backs the 200 amp full-load draw, paired with soft start to tame the first milliseconds.
  • Remote-capable - add the Samlex SAM-RC and switch it from wherever you mount the keypad.
  • -13 to 122 degrees F operating range, output derated above 104 degrees F.
  • Self-defending: alarms at 10.8 V, cuts off at 10.5 V, blocks over-voltage past 15.5 V, latches on overload and ground fault, auto-resets after cooling.
  • ETL listed low-interference design at 8.5 lbs.

Technical Specifications

Samlex SAM-2000-12 Specifications
Part NumberSAM-2000-12 (also searched as SAM 2000 12, SAM2000-12, SAM 2000)
Output WaveformModified sine wave
Continuous Power2000 W (resistive load)
Surge Power4000 W (under 1 second)
AC Output120 VAC ±10%, 60 Hz ±5%; 3 x NEMA 5-15R outlets
DC Input Voltage12 V battery systems; 10.5 - 15.0 VDC operating range
DC Input Current200 A at continuous power; 0.75 - 0.85 A at no load
DC ConnectionsM9 nut-and-bolt terminals; 10 x 35 A internal input fuses (350 A total)
Peak Efficiency90% (at 50% load)
Remote ControlPort included; optional Samlex SAM-RC remote
ProtectionsLow voltage alarm 10.8 V, shutdown 10.5 V; high voltage shutdown above 15.5 V; overload and ground fault (latching, manual reset); over-temperature (auto reset)
CoolingLoad-controlled fan (on above 90 - 110 W)
Operating Temperature-13°F to 122°F (-25°C to 50°C); output derated above 104°F (40°C)
Dimensions7.95 x 13.58 x 3.3 inches (202 x 345 x 84 mm)
Weight8.5 lbs (3.9 kg)
StandardsETL listed
Warranty2 years (Samlex America)
Technical Documentation
SAM-2000-12 Product Manual (PDF) · SAM-2000-12 Specification Sheet (PDF)

Where This Inverter Is Used

  • Contractor and fleet trucks - simultaneous tool charging, lighting and equipment power.
  • Emergency and standby power - multiple household essentials through an outage.
  • Larger RVs and toy haulers - kitchen appliances plus entertainment on separate outlets.
  • Off-grid and solar installations - the AC backbone of a 12 V battery-bank system.
Only two loads at a time? The SAM-1500-12 saves you money → Same remote-ready design with 1500 continuous watts and lighter DC cabling requirements.

Ordering

A 200 amp draw deserves a plan. Tell us the loads and the battery bank you intend to feed it with and we will flag undersized cabling or capacity before it becomes a warranty conversation. Multi-unit and system orders receive a written quote in 24 to 48 hours.

Frequently Asked Questions

What warranty ships with the SAM-2000-12?

2 years from Samlex America. The complete terms come to you in writing with any quote, before you commit.

Can I load all three outlets at once?

Yes. The three NEMA 5-15R receptacles share the 2000 watt continuous budget, so any mix works as long as the combined draw stays inside it, with the 4000 watt window absorbing momentary start-ups.

How big a battery bank should feed it?

Plan around the 200 amp full-load draw. A 200Ah deep-cycle bank yields about 30 minutes of flat-out runtime to 50 percent discharge; a 400Ah bank doubles it. Most real workloads average well under full power, so metered loads usually run far longer.

What happens during an overload past 4000 watts?

The inverter latches itself off rather than cooking; flip the power switch off and on to restore output once you shed the excess load. Heat-triggered shutdowns are separate and recover on their own after the unit cools by a few degrees.

2000 watts, three plugs, one battery bank.

Order online now, or send your load list, bank size and delivery ZIP and a battery specialist will confirm the whole system in writing, with no obligation to buy.

Call 1-877-775-4381  ·  battery specialists, not a call center
