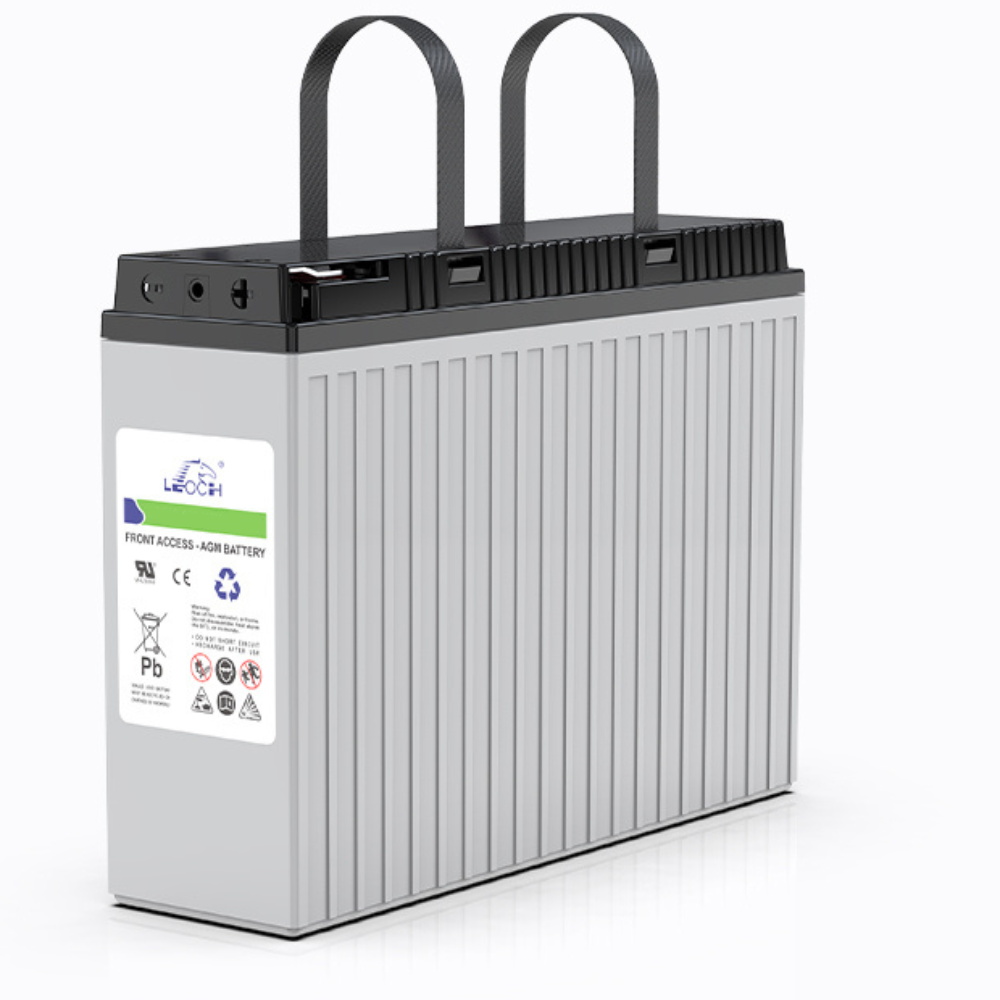

Leoch LPF12-90 Battery - 12V 90AH Front Terminal
Leoch LPF12-90 Battery - 12V 90AH Front Terminal
Leoch LPF12-90 Battery - 12V 90Ah Front Terminal AGM
Warranty
Front Access for Higher-Capacity Strings
- 12-plus-year design life - Leoch's float-service rating at 25°C, stated separately from the warranty.
- 394 x 110 mm footprint - a narrow 15.5 x 4.33 inch case with a total height of 11.2 inches.
- T6 threaded inserts - front-access copper alloy terminals sized for M6 hardware.
- Sealed AGM construction - a valve-regulated battery that requires no watering during service.
- Published discharge range - -15°C to 50°C (5°F to 122°F), with application conditions confirmed during quoting.
Technical Specifications
| Leoch LPF12-90 Specifications | |
|---|---|
| Part Number | LPF12-90 (also written LPF12 90, LPF 12-90 and LPF1290) |
| Series | Leoch LPF front terminal standby |
| Battery Type | Absorbent glass mat (AGM), valve regulated lead acid (VRLA) |
| Nominal Voltage | 12V |
| Nominal Capacity | 90Ah at the 10-hour rate to 1.80 VPC at 25°C |
| Terminal Type | T6 threaded insert for M6 bolt, front access |
| Length | 394 mm (15.5 inches) |
| Width | 110 mm (4.33 inches) |
| Container Height | 285 mm (11.2 inches) |
| Total Height | 285 mm (11.2 inches) |
| Weight | 31.0 kg (68.3 lbs) |
| Short-Circuit Current | 1710A |
| Internal Resistance | Approximately 7 milliohms, fully charged, at 25°C |
| Maximum Charge Current | 0.3C at 25°C |
| Float Charge Voltage | 2.25 to 2.30 V per cell at 25°C |
| Equalization Charge Voltage | 2.35 to 2.40 V per cell at 25°C |
| Operating Temperature | Discharge -15°C to 50°C; charge -20°C to 40°C; storage -15°C to 40°C |
| Container Material | ABS, UL 94 HB standard; UL 94 V-0 optional |
| Standards | IEC 60896, EU Battery Directive, UL and CE |
| Design Life | 12-plus years at 25°C on float service (Leoch) |
Applications
- Standard power cabinets - narrow enclosures that need every connection accessible from the front service aisle.
- Communications networks - base stations, local network power and DC backup systems held on continuous float.
- UPS installations - standby strings that deliver short-duration power when utility service drops.
- Power stations and controls - protected DC circuits where documented dimensions and terminal position matter during replacement.
Ordering and Freight
Frequently Asked Questions
Is the LPF12-90 a deep-cycle battery?
The LPF12-90 is a front terminal standby battery. Leoch lists standard power cabinets, communications equipment, power stations and UPS systems as its applications. A daily cycling project should be checked against a cycle-rated series rather than assigned from voltage and capacity alone.
What hardware fits the terminals?
The current sheet specifies T6 copper alloy threaded inserts for M6 bolts. Confirm cable-lug hole size, connector spacing and torque requirements before replacing a different case or terminal style.
How tall is the LPF12-90?
Leoch publishes a container and total height of 285 mm, or 11.2 inches. The earlier 9.39-inch figure does not match the current Leoch datasheet and should not be used for cabinet clearance.
Can the LPF12-90 replace another 12V 90Ah battery?
Voltage and capacity are only the starting point. The 394 x 110 x 285 mm case, front terminal position, M6 hardware and the equipment's discharge requirement all have to match. Send the existing part number and cabinet layout with the quote request, and the replacement will be checked against those points.
Send the existing part number, quantity, cabinet dimensions and requested-by date. A specialist verifies the case and terminal fit, then returns the product, lead time and freight details in one written quote.
