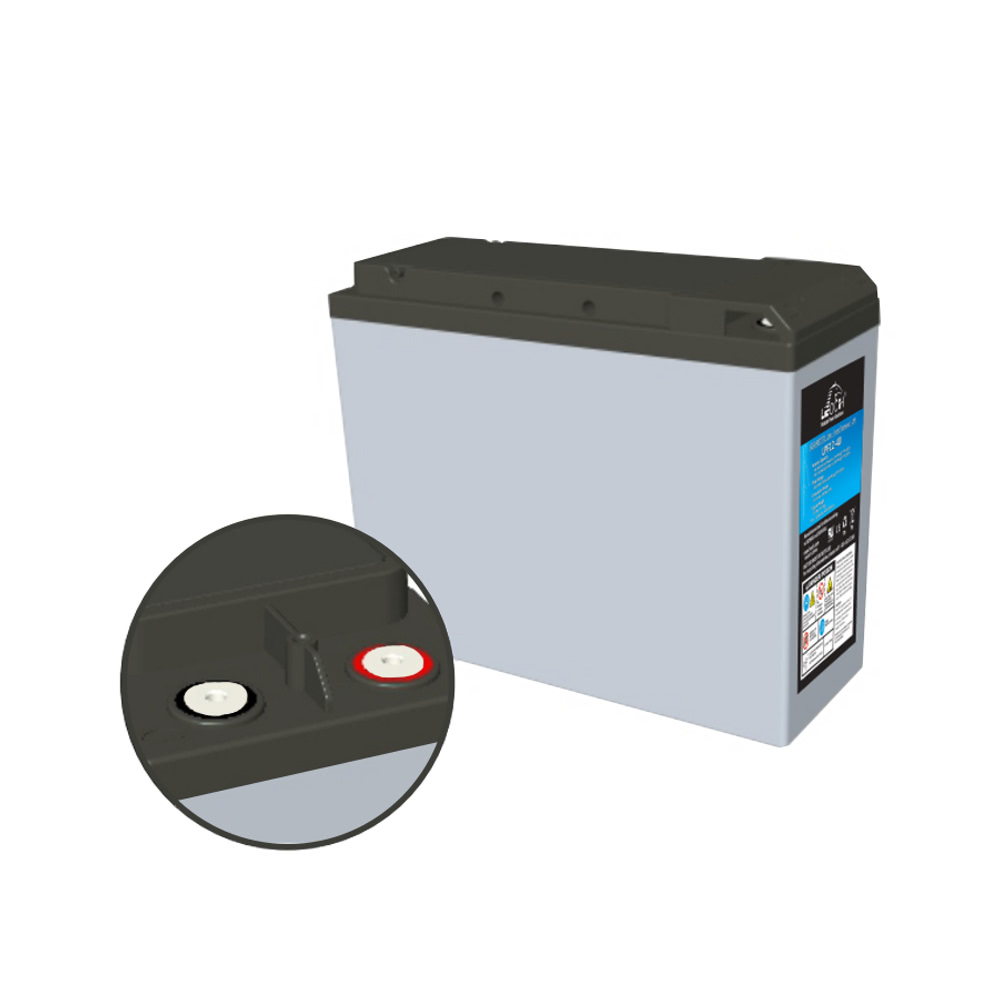

Leoch LPF12-40 Battery - 12V 40AH Front Terminal
Leoch LPF12-40 Battery - 12V 40AH Front Terminal
Leoch LPF12-40 Battery - 12V 40Ah Front Terminal AGM
Warranty
Built for Narrow Power Cabinets
- 12-plus-year design life - Leoch's float-service rating at 25°C, stated separately from the warranty.
- 277 x 106 mm footprint - a narrow 10.9 x 4.17 inch case with a total height of 8.74 inches.
- T6 threaded inserts - front-access copper alloy terminals sized for M6 hardware.
- Sealed AGM construction - a valve-regulated battery that requires no watering during service.
- Published discharge range - -15°C to 50°C (5°F to 122°F), with application conditions confirmed during quoting.
Technical Specifications
| Leoch LPF12-40 Specifications | |
|---|---|
| Part Number | LPF12-40 (also written LPF12 40, LPF 12-40 and LPF1240) |
| Series | Leoch LPF front terminal standby |
| Battery Type | Absorbent glass mat (AGM), valve regulated lead acid (VRLA) |
| Nominal Voltage | 12V |
| Nominal Capacity | 40Ah at the 10-hour rate to 1.80 VPC at 25°C |
| Terminal Type | T6 threaded insert for M6 bolt, front access |
| Length | 277 mm (10.9 inches) |
| Width | 106 mm (4.17 inches) |
| Container Height | 222 mm (8.74 inches) |
| Total Height | 222 mm (8.74 inches) |
| Weight | 14.6 kg (32.2 lbs) |
| Short-Circuit Current | 920A |
| Internal Resistance | Approximately 9 milliohms, fully charged, at 25°C |
| Maximum Charge Current | 0.3C at 25°C |
| Float Charge Voltage | 2.25 to 2.30 V per cell at 25°C |
| Equalization Charge Voltage | 2.35 to 2.40 V per cell at 25°C |
| Operating Temperature | Discharge -15°C to 50°C; charge -20°C to 40°C; storage -15°C to 40°C |
| Container Material | ABS, UL 94 HB standard; UL 94 V-0 optional |
| Standards | IEC 60896, EU Battery Directive, UL and CE |
| Design Life | 12-plus years at 25°C on float service (Leoch) |
Applications
- Standard power cabinets - narrow enclosures that need every connection accessible from the front service aisle.
- Communications networks - base stations, local network power and DC backup systems held on continuous float.
- UPS installations - standby strings that deliver short-duration power when utility service drops.
- Power stations and controls - protected DC circuits where documented dimensions and terminal position matter during replacement.
Ordering and Freight
Frequently Asked Questions
Is the LPF12-40 rated at 40Ah or 41.5Ah?
Leoch's current LPF12-40 datasheet publishes 40Ah at the 10-hour rate to 1.80 volts per cell at 25°C. That is the figure used on this page and on the quote. A capacity figure without its hour rate and end voltage is incomplete, so send the old sheet if your project specification names a different value.
Is this battery intended for deep-cycle solar use?
The LPF12-40 is a front terminal standby battery. Leoch lists standard power cabinets, communications equipment, power stations and UPS systems as its applications. A daily cycling project should be checked against a cycle-rated series rather than assigned from voltage and capacity alone.
What hardware fits the terminals?
The current sheet specifies T6 copper alloy threaded inserts for M6 bolts. Confirm cable-lug hole size, connector spacing and torque requirements before replacing a different case or terminal style.
Can the LPF12-40 replace another 12V 40Ah battery?
Voltage and capacity are only the starting point. The 277 x 106 x 222 mm case, front terminal position, M6 hardware and the equipment's discharge requirement all have to match. Send the existing part number and cabinet layout with the quote request, and the replacement will be checked against those points.
Send the existing part number, quantity, cabinet dimensions and requested-by date. A specialist verifies the case and terminal fit, then returns the product, lead time and freight details in one written quote.
