CSB XTV1255F2 12V 5.5AH AGM Deep Cycle Extreme Temperature Battery

$24.95
SKU: XTV1255F2
Availability: Request Quote For Availability
Minimum Purchase: 10 units
Shipping: Free shipping on orders $75 and up
Voltage: 12
Capacity: 5.5 AH
Chemistry: AGM
Terminal: F2
Features: Extreme Temperature Resistant
CSB XTV1255F2 12V 5.5AH AGM Deep Cycle Extreme Temperature Battery

CSB XTV1255F2 12V 5.5AH AGM Deep Cycle Extreme Temperature Battery

$24.95
Adding to cart… The item has been added
Description
CSB  ·  XTV Extreme Temperature Series

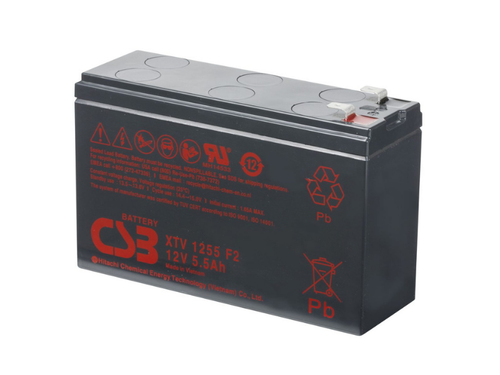

CSB XTV1255F2 Battery - 12V 5.5Ah AGM
12 volts, 5.5 Ah - a compact sealed AGM battery.

The CSB XTV1255F2 is a 12-volt, 5.5 Ah sealed AGM (VRLA) battery from CSB's XTV extreme-temperature series. It is maintenance-free, spill-proof, and mounts in nearly any position, with F2 (0.250 in) faston terminals and a rugged ABS case. It is a common fit for emergency lighting, UPS and backup power, security and alarm panels, electric scooters, and small solar setups.

Call 1-877-775-4381  ·  we will confirm this is the right battery for your equipment

12V | 5.5 Ah @20hr | F2 (0.250 in) terminals | sealed AGM

✓ Sealed AGM (VRLA)
✓ Maintenance-free & spill-proof
✓ F2 (0.250 in) terminals
✓ Up to 6-year design life
✓ 1-year warranty
Looking for the 55 Ah version? The similarly named CSB XTV12550 is the larger 12V 55Ah battery. This page is the compact 5.5 Ah XTV1255. If you need the big one, see the CSB XTV12550 12V 55Ah.

CSB XTV1255F2 specifications

Model CSB XTV1255F2 (XTV1255, F2 terminal)
Nominal voltage 12 V
Capacity 5.5 Ah at the 20-hour rate
Chemistry Sealed AGM (VRLA), lead-calcium
Terminal F2 (0.250 in faston tab)
Dimensions 3.66 x 2.76 x 4.02 in (93 x 70 x 102 mm)
Weight 3.7 lbs (1.66 kg)
Case ABS plastic
Design life Up to 6 years in standby service
Series CSB XTV (extreme-temperature line)

Why this battery

Sealed AGM, maintenance-free
Absorbed glass mat construction is spill-proof and needs no watering, so it mounts in almost any orientation and is safe to ship and store.
XTV extreme-temperature line
CSB's XTV series is built to hold up across a wide operating temperature range, which helps in enclosures and outdoor equipment that run hot or cold.
Easy drop-in replacement
Standard 12V 5.5Ah footprint with F2 (0.250 in) faston terminals makes it a straightforward swap in most equipment that uses this size.

Typical applications


Emergency & exit lighting

UPS & backup power

Security & alarm panels

Electric scooters & ride-ons

Small solar & renewable storage

General 12V SLA equipment

CSB XTV1255F2 FAQ

Is the CSB XTV1255F2 a 12V 5.5Ah battery?

Yes. It is 12 volts nominal with a 5.5 Ah capacity at the 20-hour rate, in sealed AGM (VRLA) construction.

What is the difference between the XTV1255 and the XTV12550?

They are different sizes in the same CSB XTV series. The XTV1255 (this battery) is the compact 5.5 Ah unit; the XTV12550 is the larger 12V 55 Ah battery. Check the model number carefully - they are one digit apart.

What terminal does it use?

F2 (0.250 in) faston tab terminals.

Is it sealed and maintenance-free?

Yes. It is a sealed AGM battery - spill-proof, no watering, and it mounts in nearly any position (avoid mounting it fully inverted).

Not sure this is your battery?
Send us your equipment model or the battery you are replacing, and we will confirm the exact fit before you order.
Contact a Technical Specialist Today
1-877-775-4381
Call toll-free for fitment help
Correct fit · Verified specs
Need help confirming this is your battery?

Tell us the equipment or the battery you are replacing and we will make sure the CSB XTV1255F2 is the right one - or point you to the size that is.

Call 1-877-775-4381  ·  need 55Ah? see the CSB XTV12550
