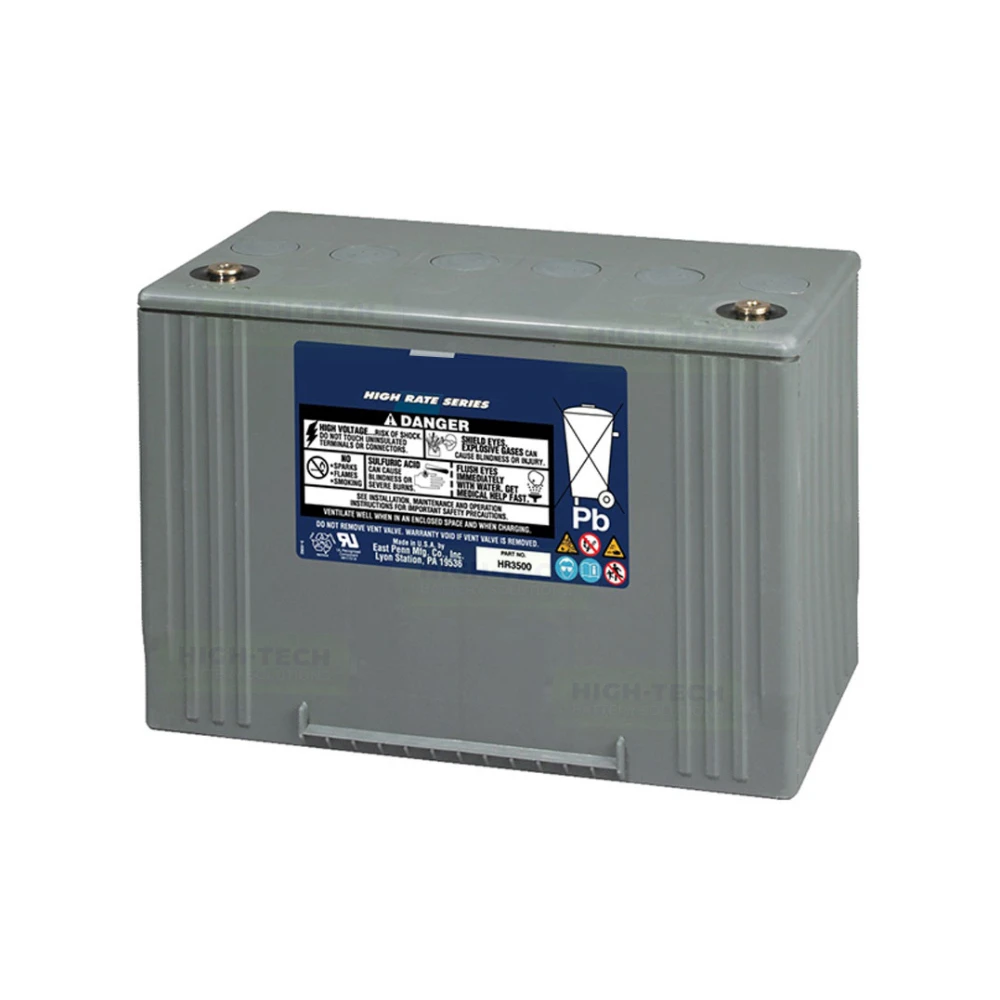

DEKA Unigy UPS HR3500 High Rate Series Battery
DEKA Unigy UPS HR3500 High Rate Series Battery
Deka Unigy HR3500 Battery - 12V 370 WPC High Rate UPS AGM
Warranty
370 Watts in a Top-Terminal Case
- Sealed AGM VRLA - micro-porous glass mat separators, heat-sealed case and cover, epoxy-sealed posts, and flame-arresting self-sealing valves, each 100 percent factory tested.
- UL 1973 certified - the energy storage certification, alongside construction that meets UL recognition requirements and IEEE recommended practices.
- Flame-retardant polypropylene case - UL 94 V-0, limiting oxygen index above 28 percent, reinforced against bulging.
- Float setting on the flyer - 13.50V per battery, plus or minus 0.5 percent at 77°F, with an acceptable band of 13.42V to 13.57V.
- Outline drawing on the flyer - East Penn's Form 2009 includes the dimensioned battery outline for tray layout.
Technical Specifications
| Deka Unigy HR3500 Specifications | |
|---|---|
| Part Number | HR3500 (also searched as HR 3500, deka hr3500, unigy hr3500, hr3500 battery) |
| Battery Type | AGM VRLA with IPF plate technology, high rate, top terminal, UPS standby |
| Nominal Voltage | 12V |
| Rating | 370 watts per cell at the 15-minute rate to 1.67 VPC at 77°F; watt-rated, no amp-hour rating is published |
| Constant Power to 1.67 VPC | 1,063 W/cell at 1 min, 686 at 5 min, 475 at 10 min, 370 at 15 min, 305 at 20 min, 227 at 30 min, 130 at 60 min |
| Constant Power to 1.75 VPC | 890 W/cell at 1 min, 608 at 5 min, 347 at 15 min, 127 at 60 min |
| Positive Plate | Greater than 98% pure lead, tin-calcium alloy |
| Negative Plate | Pure lead, calcium alloy |
| Terminal Type | Top access, 1/4-20 threaded insert, epoxy-sealed posts |
| Length | 12.01 inches (305.2 mm) |
| Width | 6.56 inches (166.7 mm) |
| Height | 8.24 inches (209.3 mm) |
| Weight | 71.5 lbs (32 kg) |
| Float Charging Voltage | 13.50V per battery ±0.5% at 77°F (range 13.42V to 13.57V) |
| Case Material | Flame-retardant polypropylene, UL 94 V-0, >28% limiting oxygen index |
| Valves | Low positive pressure, self-sealing, flame arrestor |
| Standards | UL 1973; UL recognition; IEEE recommended practices |
| Design Life | 10 years in float applications at 77°F (East Penn) |
| Warranty | 3 years (East Penn, High Rate top terminal tier, Form 0986) |
| Minimum Order | 4 units |
Where This Battery Is Used
- Three-phase UPS strings - 30 to 40 blocks in series behind a mid-sized UPS, sized on the 15-minute watts-per-cell figure.
- Data closets and small computer rooms - ride-through to generator transfer where the tray takes a 12-inch top-terminal block.
- Switchgear control power - trip and close duty on a maintained float, using the 1-minute rate.
Ordering and Freight
Frequently Asked Questions
HR3500 or HR3500ET: which one do I order?
Same rating, different case and different term. The HR3500 has top terminals in a 12.01 by 6.56 by 8.24 inch case at 71.5 lbs and carries East Penn's 3-year top-terminal term. The HR3500ET puts the same 370 watts per cell in a 19.44 by 4.24 by 9.09 inch front-access case at 75.5 lbs and carries the 4-year front-access term. If the UPS cabinet was built for top-post blocks on a 12-inch tray, order the HR3500; if it uses narrow front-access shelves, order the ET.
How many HR3500 blocks does a 480V UPS string take?
Forty, at 12 volts each, which is the common configuration for a three-phase UPS with a 480V nominal DC bus. Some UPS designs use 32, 36 or 38 blocks, so confirm the block count from the UPS manual rather than assuming. At 71.5 lbs each a 40-block string is 2,860 lbs of battery, which is a freight and floor-loading figure worth having before the quote.
What does the HR3500 deliver at a 60-minute runtime?
130 watts per cell to 1.67 VPC, or 127 to 1.75 VPC, per East Penn's table. That is 780 watts per block for an hour, so a 40-block string supports roughly 31 kW for 60 minutes at 77°F before the string reaches end voltage. If your requirement is closer to an hour than to fifteen minutes, size from the 60-minute column and consider whether an amp-hour rated block like the Unigy I series is the better fit.
What if only one HR3500 in the string has failed?
Our practice is to replace a string as a set once it is more than a year or two into service. A new block in an aged string floats at a different point and ages faster to meet the others. If one block has failed early under warranty, replace it like for like; if the string is at mid-life, price the full set and a specialist will tell you which makes sense for the age of the string you have.
Send the quantity, your delivery ZIP and your requested-by date. A specialist confirms availability, the warranty term, volume pricing and freight in writing, with no obligation to buy.
