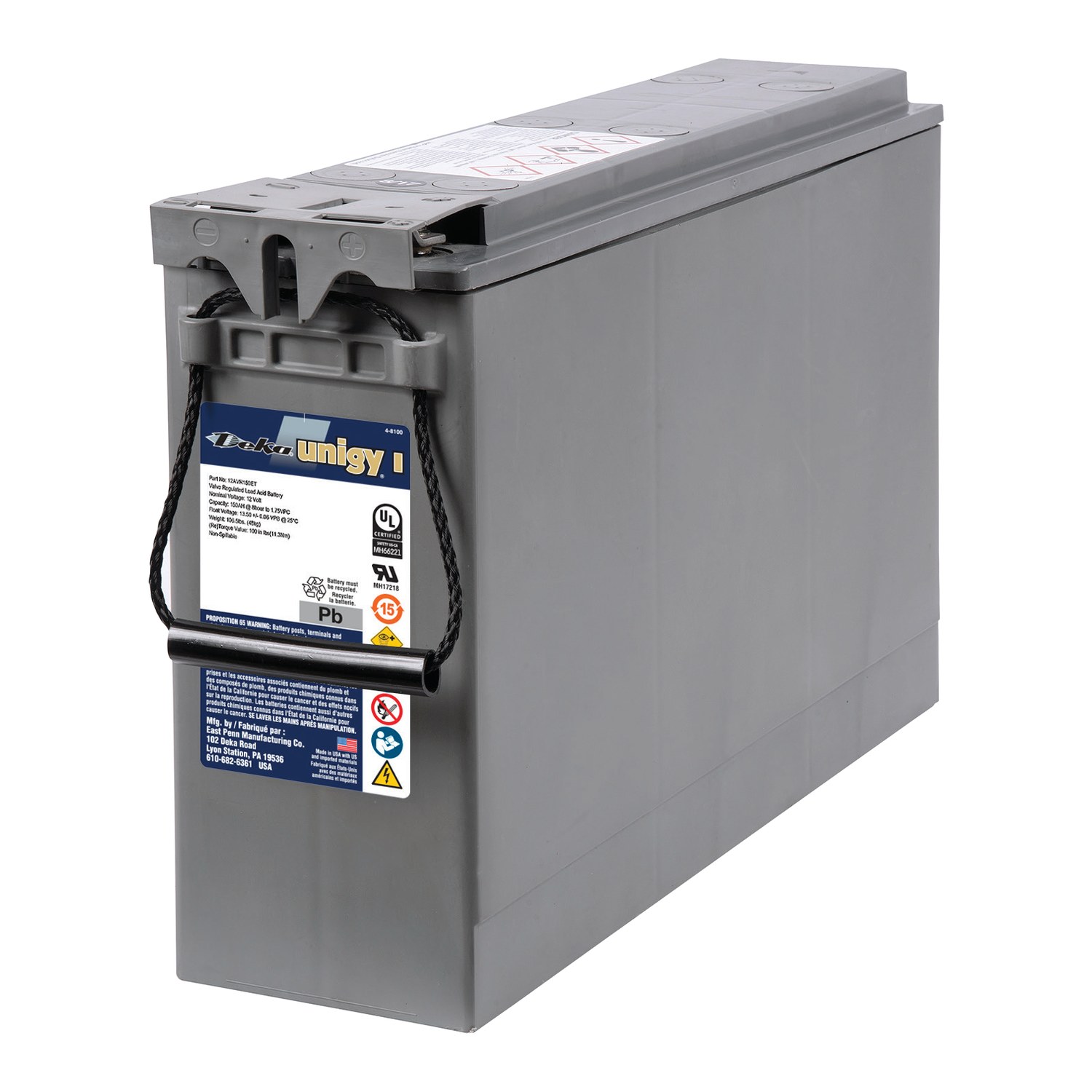

Deka Unigy 12AVR150ET Battery
Deka Unigy 12AVR150ET Battery
Deka Unigy 12AVR150ET Battery - 12V 150 Ah Front Access Telecom AGM
Warranty
Front Access at 150 Ah
- IPF plate technology - individually formed plates, the basis of East Penn's guarantee of 100 percent initial string capacity when tested to IEEE 1188.
- Sealed AGM VRLA - micro-porous glass mat separators, heat-sealed case and cover, epoxy-sealed posts, and self-sealing flame-arresting valves, all 100 percent factory tested.
- Standards East Penn lists for the block - GR-4228 (designed to meet), IEEE recommended practices, UL recognition requirements, and UL 1973 certification for energy storage.
- Rope handle - shown on the outline drawing, for placing a 106.5 lb block on a shelf without a lift.
- Charge current window - 27.1 amps maximum and 8.1 amps minimum per block, from the Unigy I installation manual.
Technical Specifications
| Deka Unigy 12AVR150ET Specifications | |
|---|---|
| Part Number | 12AVR150ET (also searched as 12AVR 150ET, deka 12avr150et, 12avr150 et; the ET denotes the front-access terminal case) |
| Battery Type | AGM VRLA with IPF plate technology, front access, telecom float service |
| Nominal Voltage | 12V |
| Nominal Capacity | 150 Ah at the 8-hour rate to 1.75 VPC at 77°F (18.8 A for 8 hours) |
| Discharge, 1-hour rate | 96.6 A to 1.75 VPC |
| Discharge, 4-hour rate | 32.2 A to 1.75 VPC |
| Discharge, 20-hour rate | 8.5 A to 1.75 VPC |
| Discharge Current Limits | 1.8 A minimum, 356 A maximum to 10.50V (Unigy I manual, Form 0902) |
| Positive Plate | Greater than 98% pure lead, tin-calcium alloy |
| Negative Plate | Pure lead, calcium alloy |
| Terminal Type | Front access, 1/4-20 threaded insert, epoxy-sealed posts; terminal kit JAK0017 |
| Length | 22.17 inches (563.0 mm) |
| Width | 4.97 inches (126.3 mm) |
| Height | 11.63 inches (295.5 mm) |
| Weight | 106.5 lbs (48 kg) |
| Float Charging Voltage | 13.50V per battery ±0.5% at 77°F (range 13.42V to 13.57V) |
| Charge Current | 27.1 A maximum, 8.1 A minimum (Unigy I manual, Form 0902) |
| Case Material | Flame-retardant polypropylene, UL 94 V-0, >28% limiting oxygen index |
| Valves | Low positive pressure, self-sealing, flame arrestor |
| Standards | GR-4228 (designed to meet); IEEE recommended practices; UL recognition; UL 1973 |
| Design Life | 10 years in float applications at 77°F (East Penn) |
| Warranty | 4 years (East Penn, Unigy I front access tier, Form 0985) |
| Minimum Order | 4 units |
Where This Battery Is Used
- 48V front-access telecom strings - four blocks on a front-terminal shelf behind a rectifier plant, sized off the 8-hour rate.
- Outdoor cabinets - installs where the door is the only access and every connection has to be reached from the front.
- Replacing a 150 Ah front-terminal block - the 4.97 by 22.17 inch footprint is the common front-access telecom cut.
Ordering and Freight
Frequently Asked Questions
What comes with the 12AVR150ET for the front terminals?
East Penn's outline drawing lists the front access terminal kit JAK0017, which contains two L terminals (JMP7003) and one hardware kit (JHK0004), plus the JFC170PNG protective safety cover that snaps over the terminal face. Confirm on the quote that the kit and cover are included for your order; a specialist checks the accessory line before the quote goes out.
Does the 12AVR150ET share a shelf with the HT150ET?
The footprint is the same: 22.17 inches deep, 4.97 inches wide, 11.63 inches tall on both. The difference is the chemistry and the term. The 12AVR150ET is a standard Unigy I block with a 4-year East Penn term and a 10-year design life at 77°F. The Fahrenheit HT150ET is East Penn's heat-tolerant build for hot sites with a 6-year term at 77°F and a 12-year design life. If the cabinet runs at room temperature, the 12AVR150ET is the ordinary choice; if it runs hot, price the HT150ET.
How much reserve does a 12AVR150ET string give at a 30 amp load?
Read it from the table. A 48V string of four delivers 32.2 amps for four hours to 1.75 volts per cell at 77°F, so a steady 30 amp plant load sits a little past the four-hour mark. At 18.8 amps the same string runs eight hours. If your load or your temperature sits between the published points, send both figures and a specialist interpolates from East Penn's data rather than from a rule of thumb.
Can I use fewer than four?
The minimum order is four, which is one 48V string. A 24V plant using two blocks per string can still order four and hold two as the second string or as spares, which is how most 24V sites buy this block.
Send the quantity, your delivery ZIP and your requested-by date. A specialist confirms availability, the warranty term, volume pricing and freight in writing, with no obligation to buy.
