eWheels EW-74 Battery Replacement Kit

$269.95
SKU: EEW74
Availability: Shipping Lead Time is 24 Hours
Shipping: Free shipping on orders $75 and up
Voltage: 12
Capacity: 20 ah
Chemistry: AGM
Terminal: Threaded Insert
Price Includes: 4 Batteries
eWheels EW-74 Battery Replacement Kit
eWheels EW-74 Battery Replacement Kit
$269.95
Adding to cart… The item has been added

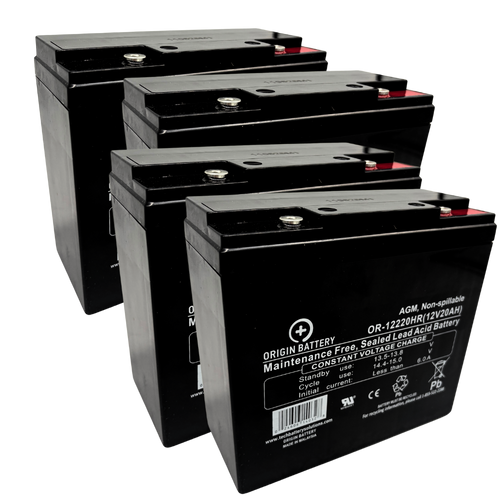

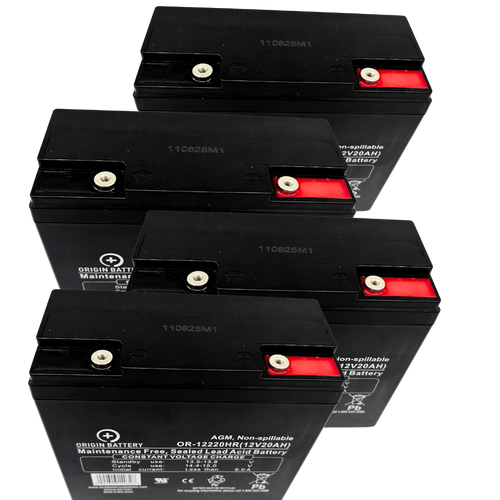

eWheels EW-74 Battery Replacement Kit: Four 12V 20Ah (20-hr rate) AGM Batteries

When your eWheels EW-74 stops going as far on a charge as it used to, or needs plugging in more often, the batteries are the first place to look. This kit for the EW-74 (also written EW 74) puts four Origin OR-12220HR batteries in one order: 12V, 20Ah at the 20-hour rate, sealed AGM, with threaded insert terminals.

eWheels EW-74 Fitment: Confirm Your Scooter Before You Order

Three checks take a few minutes with the battery compartment open.

  • Model - Read the model name on the scooter. This kit is listed for the eWheels EW-74.
  • Count - Count the batteries in the compartment. This kit holds four. If your set is a different number, call before you order.
  • Size and terminals - Each battery here measures 7.13 x 3.03 x 6.57 inches and uses threaded insert terminals. The compartment is a fixed size, so the new batteries need to match the originals.

Not sure which eWheels model you own? The mobility scooter battery finder narrows it down, and the eWheels scooter batteries page lists every kit. Shopping for an e-wheels scooter battery replacement for another model? The EW-14, EW-54 and EW-29 kits are separate listings.

What Is in the EW-74 Kit

Four batteries, one order
Every battery in the scooter is new on the same day.
Sealed AGM
Nothing to top up and no cell caps to open.
Threaded insert terminals
Cables bolt on through the terminal.
  • 20Ah at the 20-hour rate - Origin's sheet rates each battery at 20.0Ah over a 20-hour discharge at 77 F (25 C).
  • 14.3 lbs each - The set of four comes to about 57 lbs, so lift one battery at a time.
  • Wide temperature range - Rated to discharge from -4 to 140 F and to charge from 14 to 140 F.

Specifications

Origin OR-12220HR Specifications (EW-74 Kit)
Part NumberKit EEW74 (EW 74, EW74, EW-74); batteries OR-12220HR
Kit Contents4 batteries
Battery TypeSealed lead acid, AGM
Nominal Voltage12V per battery
Nominal Capacity20.0Ah at the 20-hour rate (1.00A to 10.5V, 77 F / 25 C)
Terminal TypeThreaded insert
Length7.13 inches (181 mm)
Width3.03 inches (77 mm)
Height6.57 inches (167 mm)
Weight14.3 lbs (6.50 kg) per battery
Operating TemperatureDischarge -4 to 140 F (-20 to 60 C); charge 14 to 140 F (-10 to 60 C)
Warranty1-year free replacement (High-Tech Battery Solutions)
Technical Documentation

Installing the New Set

Open battery compartment of a red scooter with four sealed batteries side by side, joined by red and white cables
  • Power down - Turn the scooter off and unplug the charger.
  • Reach the batteries - On many scooters they sit under the seat, so lift the seat assembly out if yours does.
  • Photograph the wiring - Take a picture of every cable connection before you touch anything.
  • Swap the set - Unlatch the cover, lift the old batteries out and set the new ones in the same arrangement.
  • Reconnect and test - Attach the cables exactly as photographed, close the compartment and take a short test ride.

Warranty

High-Tech Battery Solutions covers the Origin batteries in this kit with a 1-year free replacement warranty.

Frequently Asked Questions

How long will the new set last?

Mobility scooter batteries typically last 18-24 months. Charging habits, ride length and storage all move that number.

Does the kit include a charger?

No. The kit is the four batteries only. For a charger question, call 1-877-775-4381.

Why is my real-world range lower than the 20-hour rating suggests?

Origin rates the battery by draining it slowly, 1.00A for 20 hours. A scooter that draws more current than that gets less than the rated capacity out of a lead acid battery, and hills and heavier riders pull more.

Can I replace only one battery?

This kit is built for replacing the full set of four at once. If only one battery seems weak, call and a specialist can talk it through with your scooter's model.

Not sure the EW-74 kit matches your scooter?

Have your model name and the label from one old battery in front of you, then call. A battery specialist will check the match before you order.

Call 1-877-775-4381  ·  battery specialists, not a call center
