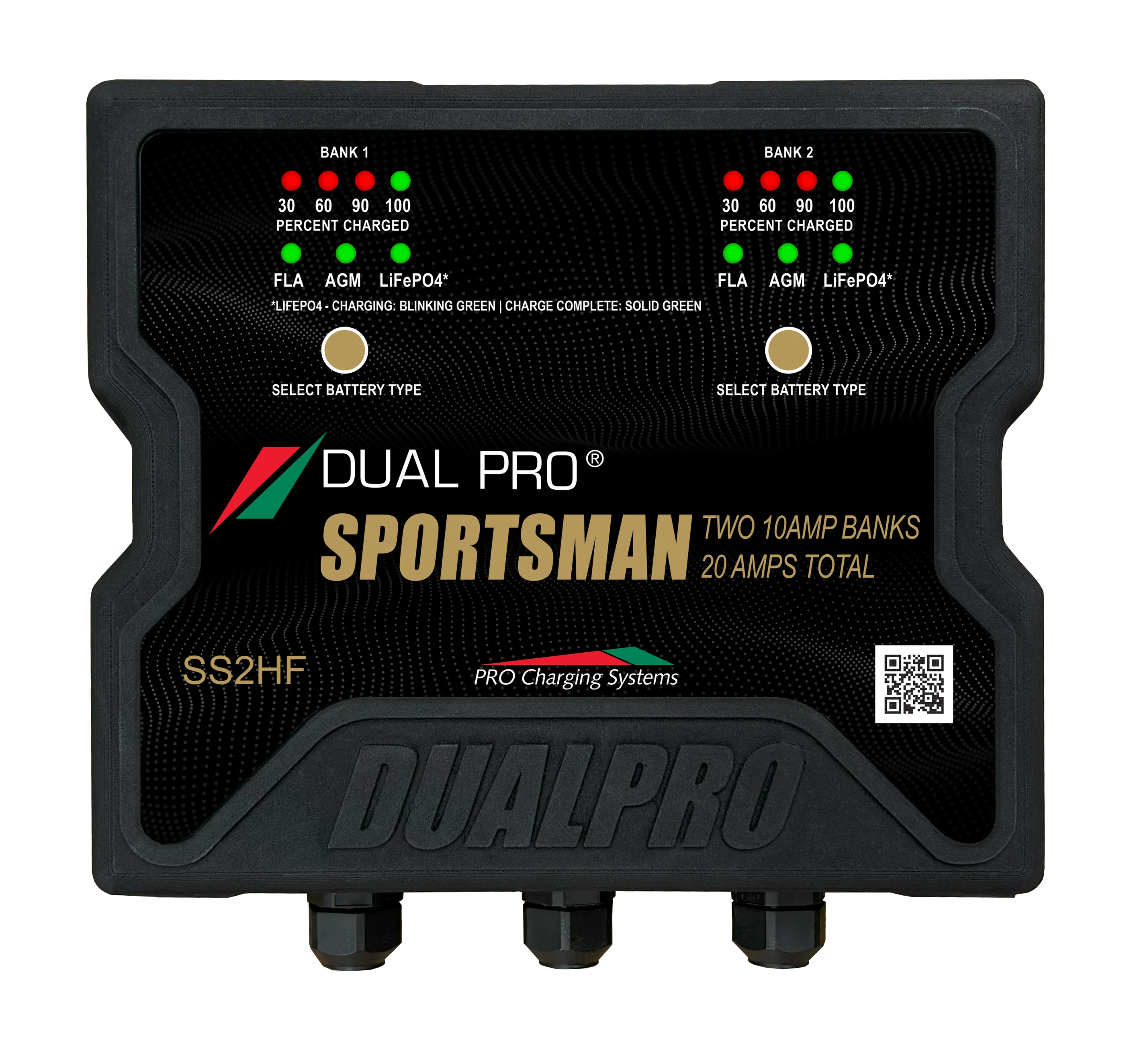

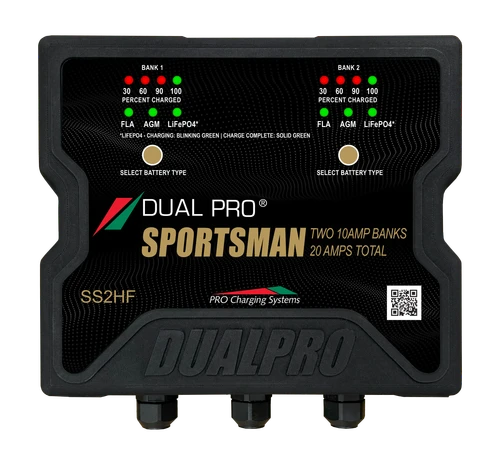

Dual Pro Sportsman SS2HF 2 Bank Marine Battery Charger
Dual Pro SS2HF - 12V/24V 20A 2 Bank Onboard Marine Battery Charger
Warranty
High Frequency Charging
- Ignition protected - meets US Coast Guard 33 CFR 183.410 for installation near gasoline fumes
- Zero spark technology - with true reverse polarity protection if the leads get crossed
- CE compliant - and meets ISO 8846 marine standards
- LED charge indicators - percent-charged display per bank, with on-board diagnostic codes
- Low voltage turn on - starts charging deeply discharged batteries that some chargers refuse to recognize
Technical Specifications
| Dual Pro SS2HF Specifications | |
|---|---|
| Part Number | SS2HF (also searched as SS 2 HF, Sportsman HF). Replaces the original Sportsman SS2, sold here under SKU DPSS2 |
| Charger Type | Onboard high frequency, multi-stage, fully automatic |
| Battery Systems | 12V and 24V |
| Banks | 2, independent outputs |
| Charge Current | 20 amps total, 10 amps per bank |
| Charge Profiles | Selectable per bank: FLA (wet cell), AGM, Lithium (LiFePO4) |
| Maintenance | Float maintenance mode |
| DC Leads | 6 ft DC charge cables, included |
| AC Cord | 6 ft AC power cord, included |
| Protections | Zero spark, reverse polarity, ignition protected |
| Waterproof Rating | IP67, fresh and saltwater use |
| Dimensions | 3.25 x 8.0 x 9.3 inches |
| Weight | 7.2 lbs |
| Standards | US Coast Guard 33 CFR 183.410, CE, ISO 8846 |
| Warranty | 3 years (Pro Charging Systems) |
Where This Charger Is Used
- Bass and walleye boats - cranking battery on one bank, 12V trolling battery on the other, each on its own profile
- 24V trolling motor rigs - two batteries in series charge as two independent 12V banks, so neither one drags the other down
- Saltwater bay and flats boats - the IP67 case and ignition protection handle console and bilge mounting where spray is a given
- Pontoons and runabouts - keep the house and starting batteries topped between weekends with float maintenance
Ordering and Shipping
Frequently Asked Questions
What warranty comes with the SS2HF?
Pro Charging Systems backs the SS2HF for three years. Register the charger at dualpro.com after purchase. If a unit ever acts up, contact us and we will get the ball rolling on the claim.
What is the difference between the SS2HF and the original SS2?
The SS2HF is the high-frequency redesign of the SS2. It is about four pounds lighter, adds 24V system support, and adds selectable charge profiles per bank, including lithium. The original charged 12V wet cell and AGM batteries only. Both deliver 10 amps per bank across two independent outputs.
Will it charge lithium batteries?
Yes. Set any bank to the LiFePO4 profile and it charges most 12V lithium marine batteries. Pro Charging Systems recommends confirming your battery brand is approved, so if you are unsure, send us the battery model and we will check before you order.
Can I leave it plugged in all season?
Yes. Float maintenance mode holds charged batteries at full without overcharging, which is exactly how most owners store a boat over winter or between trips.
How long does a full charge take?
Divide the amp-hours you need to put back by 10. A 100Ah battery drawn down to half needs about 50Ah, so plan on five to six hours. Both banks charge at the same time, so two batteries take no longer than one.
Send your battery models and how the banks are wired. A battery specialist confirms the right charger fit in writing in 24 to 48 hours, with no obligation to buy.
