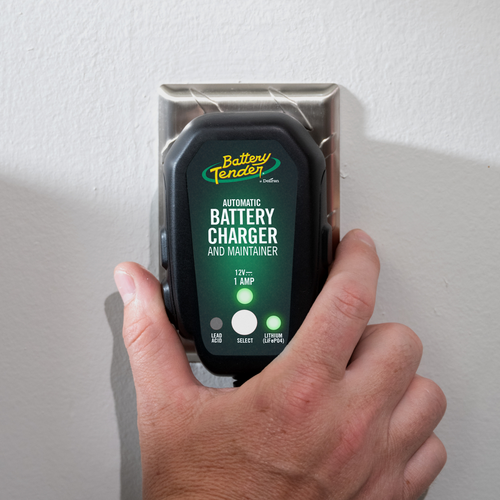

Hand plugging the Battery Tender Junior Multi-Chemistry 022-0199-DL-WH directly into a wall outlet
Battery Tender Junior 022-0199-DL-WH infographic (earlier 800 mA housing): stay charged, lead-acid, AGM, gel and LiFePO4; charges mower, dirt bike, motorcycle and ATV, maintains car
Battery Tender Junior 022-0199-DL-WH infographic (earlier housing): extend battery life with the four-step program, initialization, bulk, absorption and float
Battery Tender Junior 022-0199-DL-WH infographic (earlier housing): simple and safe, reverse polarity protection, quick disconnect harness, spark-proof design
Battery Tender Junior 022-0199-DL-WH infographic (earlier housing): LED guide, red charging, flashing green above 80 percent, solid green maintaining

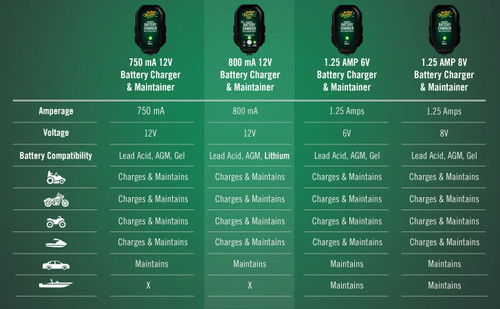

Chart comparing the 800 mA lithium-capable Junior 022-0199-DL-WH with the 750 mA Junior and the 1.25 amp 6V and 8V models by amperage, chemistry and vehicle
Old Junior 800 housing next to the new 1 amp Junior Multi-Chemistry 022-0199-DL-WH housing: new power level, same charger
Deltran Battery Tender Junior Multi-Chemistry 022-0199-DL-WH, current housing marked 12V 1 amp with lead-acid and lithium selector, alligator clips attached
Angled studio view of the Battery Tender Junior Multi-Chemistry 022-0199-DL-WH showing the 1 amp label and selector button
Hand plugging the Battery Tender Junior Multi-Chemistry 022-0199-DL-WH directly into a wall outlet
Battery Tender Junior 022-0199-DL-WH infographic (earlier 800 mA housing): stay charged, lead-acid, AGM, gel and LiFePO4; charges mower, dirt bike, motorcycle and ATV, maintains car
Battery Tender Junior 022-0199-DL-WH infographic (earlier housing): extend battery life with the four-step program, initialization, bulk, absorption and float
Battery Tender Junior 022-0199-DL-WH infographic (earlier housing): simple and safe, reverse polarity protection, quick disconnect harness, spark-proof design
Battery Tender Junior 022-0199-DL-WH infographic (earlier housing): LED guide, red charging, flashing green above 80 percent, solid green maintaining
Chart comparing the 800 mA lithium-capable Junior 022-0199-DL-WH with the 750 mA Junior and the 1.25 amp 6V and 8V models by amperage, chemistry and vehicle
Old Junior 800 housing next to the new 1 amp Junior Multi-Chemistry 022-0199-DL-WH housing: new power level, same charger

  • Free Shipping

    Orders $75 & Up

  • 30-day Money Back

    Guarantee*

  • 100% Secure Online Shopping

    SSL - Verified Merchant

Deltran Battery Tender Junior Multi-Chemistry 022-0199-DL-WH - 12V 1A Lead-Acid and Lithium Battery Charger

$42.95
SKU: CN42
UPC: 734357219906
Availability: Shipping Lead Time is 24 Hours
Shipping: Free Shipping
Type: Battery Charger
Charge Rate: 1A
Battery Capacity Range: Up to 30AH, 32AH, 40AH
Charging Modes: 12V Lead Acid, 12V AGM, 12V GEL, 12V Lithium
Features: Portable
# Of Charging Banks: 1
Deltran Battery Tender Junior Multi-Chemistry 022-0199-DL-WH - 12V 1A Lead-Acid and Lithium Battery Charger

Deltran Battery Tender Junior Multi-Chemistry 022-0199-DL-WH - 12V 1A Lead-Acid and Lithium Battery Charger

$42.95

Out of stock

Description

Deltran Battery Tender Junior Multi-Chemistry 022-0199-DL-WH - 12V 1A Lead-Acid and Lithium Battery Charger

This is the Battery Tender Junior 800, re-rated to 1 amp and renamed the Junior Multi-Chemistry: a compact charger with a selector for 12V lead-acid or 12V lithium iron phosphate, for batteries of 3 to 30 amp-hours. Same part number, 022-0199-DL-WH, same job, a new housing and a slightly higher output. Modern sport bikes and plenty of ATV and PWC upgrades now run LiFePO4 batteries, and a lead-acid float charger left on one of those slowly pushes it past the voltage its management system wants. Press the button for the chemistry printed on your battery, connect, and the four-stage program runs the profile written for it.

Warranty

Warranty. Deltran covers the Junior Multi-Chemistry 022-0199-DL-WH under a 5-year limited warranty. We confirm the terms in writing with every order.

Two Chemistries, One Selector

Lead-acid or lithium, your call
The lead-acid profile floats flooded, AGM, gel, and sealed batteries at a continuous micro-current. The lithium profile uses a higher absorption voltage and a maintenance routine that never parks a LiFePO4 pack at lead-acid float.
A full amp in bulk
The whole 1 amp goes in until the battery nears full, absorption tapers it, then float or lithium maintenance takes over. A run-down battery recovers a little sooner than it did on the 800 mA version.
Compensates on lead-acid
On the lead-acid setting the charger raises voltage in the cold and lowers it in the heat, so the profile fits the garage in January and July.
  • Spark-proof leads - no output until a battery is detected at the clips
  • Reverse polarity shutdown - protects the lithium battery's BMS and the bike's electronics if the leads get swapped
  • Short-circuit protection - the charger detects the fault and shuts itself off
  • ETL and CETL certified
  • Clips and ring terminals in the box - on a 12 ft output cord, with a hex wrench for the ring-terminal bolts

Technical Specifications

Deltran Battery Tender Junior Multi-Chemistry 022-0199-DL-WH Specifications
Part Number022-0199-DL-WH (also searched as 022 0199 DL WH, 0220199, 022-0199, Junior 800, Lithium Junior)
Charger TypeFully automatic 4-stage (initialization, bulk, absorption, float or lithium maintenance), selectable chemistry
DC Output Voltage12V
Charge Current1 A (replaces the 800 mA rating on earlier units)
AC Input115 VAC, 60 Hz
Battery Types SupportedLead-acid (flooded, AGM, gel, sealed maintenance-free) or lithium iron phosphate (LiFePO4), chosen by push button
Battery Size Range3 Ah to 30 Ah
Output Cord12 ft
Output ConnectorsAlligator clips and ring-terminal harness
ProtectionsSpark-proof, reverse polarity, short circuit; temperature compensation on the lead-acid setting
Weight1.3 lbs (590 g)
StandardsETL and CETL certified
Warranty5 years (Deltran)

Where This Charger Is Used

  • Sport bikes and cruisers with factory lithium batteries - the growing share of new motorcycles that ship with LiFePO4
  • ATVs, UTVs, and side-by-sides converted to lithium - lighter packs that still need the right float
  • Dirt bikes, scooters, and mopeds - either chemistry, 3 Ah and up
  • Personal watercraft and snowmobiles - off-season storage without a dead battery at launch
  • The one machine still on lead-acid - flip the selector; no second charger to buy
Lead-acid only, and want to spend less? → The standard Battery Tender Junior 021-0123 skips the selector and maintains 3 to 30 Ah lead-acid batteries at 750 mA.

Ordering and Shipping

Ships parcel, free on orders over $75. A lithium battery larger than 30 Ah, or a car-size lead-acid battery, is a job for a Power Tender with a lithium setting, not the Junior. Dealers stocking several: send the quantity and your delivery ZIP for a written quote in 24 to 48 hours.

Frequently Asked Questions

What does the Deltran warranty cover on the 022-0199-DL-WH?

Deltran's 5-year limited warranty covers the charger itself. It does not reach a battery that was charged on the wrong setting, so match the selector to the battery label before you connect. Keep the receipt and contact us if you ever need to file.

Is the Junior Multi-Chemistry the same charger as the Junior 800?

Yes. Deltran raised the rating from 800 milliamps to 1 amp, moved it into the current housing, and renamed it, but the part number and the lead-acid or lithium selector are unchanged. If you have been searching for the Junior 800 or the Lithium Junior, this is the current version.

What happens if I choose the wrong chemistry?

Lead-acid float on a LiFePO4 battery holds it, over weeks, above the voltage its BMS is built for and can damage the cells. The lithium profile on a lead-acid battery leaves it undercharged. Neither mistake shows up right away, which is why the selector deserves a second look every time you connect.

How do I know which setting my battery needs?

Read the battery label. AGM, gel, and flooded batteries are all lead-acid and use the lead-acid setting. Anything marked LiFePO4 or lithium iron phosphate takes the lithium setting. If the label says lithium but not iron phosphate, send us a photo before you charge it.

How long does a 1 amp charger take on a motorcycle battery?

A 12 Ah battery at half charge needs about 6 Ah back, which is roughly 6 hours of bulk charging at 1 amp plus an hour or two of absorption. Overnight covers nearly any battery in the 3 to 30 Ah range; a fully flat 30 Ah battery is closer to a day and a half.

Lithium bike, lead-acid ATV, one charger?

Order online, or send the battery labels from each machine and a battery specialist confirms the Junior Multi-Chemistry covers them, in writing, in 24 to 48 hours.
