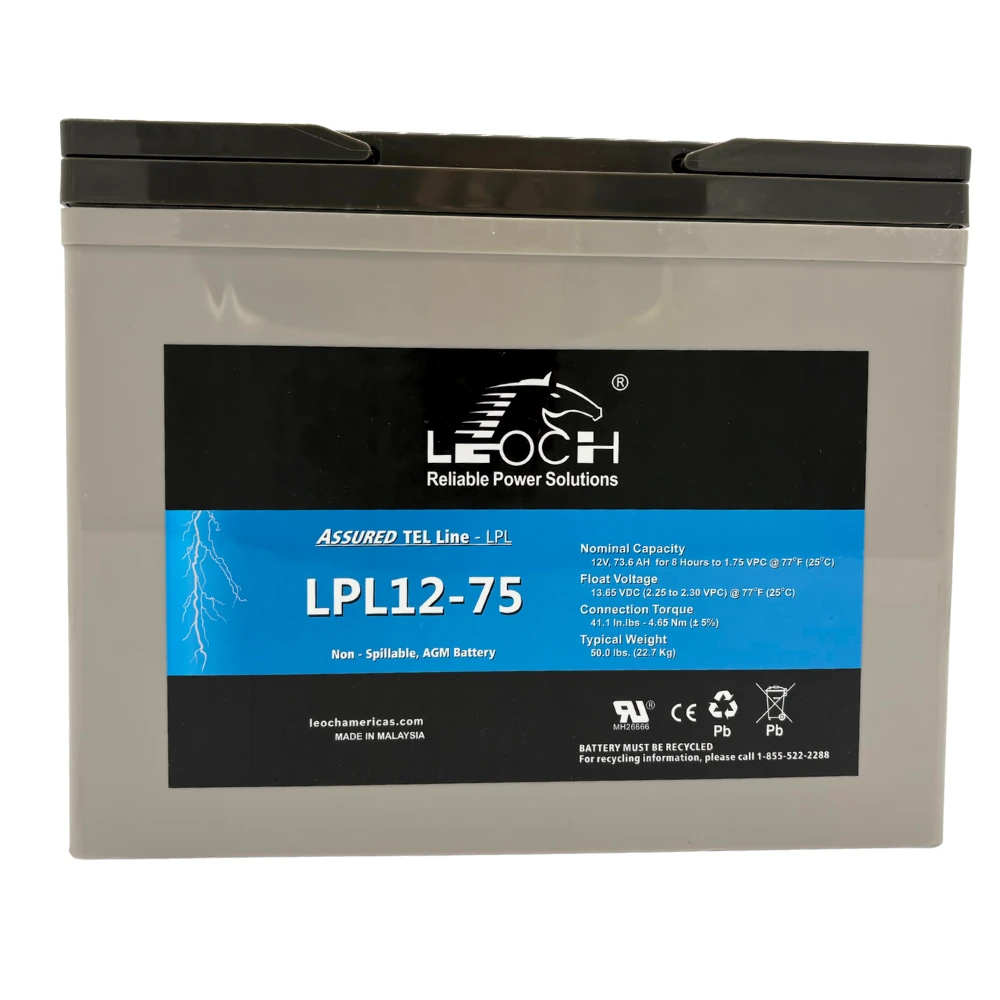

Leoch LPL12-75 12V 75Ah long life standby AGM battery with M6 terminals
Leoch LPL12-75 Battery - 12V 75AH AGM Deep Cycle VRLA
Leoch LPL12-75 Battery - 12V 75AH AGM Deep Cycle VRLA
Leoch LPL12-75 Battery - 12V 75AH AGM Deep Cycle VRLA
Leoch LPL12-75 Battery - 12V 75AH AGM Deep Cycle VRLA
Leoch LPL12-75 12V 75Ah long life standby AGM battery with M6 terminals
Leoch LPL12-75 Battery - 12V 75AH AGM Deep Cycle VRLA
Leoch LPL12-75 Battery - 12V 75AH AGM Deep Cycle VRLA
Leoch LPL12-75 Battery - 12V 75AH AGM Deep Cycle VRLA
Leoch LPL12-75 Battery - 12V 75AH AGM Deep Cycle VRLA

  • Free Shipping

    Orders $75 & Up

  • 30-day Money Back

    Guarantee*

  • 100% Secure Online Shopping

    SSL - Verified Merchant

Leoch LPL12-75 Battery - 12V 75AH AGM Deep Cycle VRLA

$219.95
SKU: LPL1275
Availability: Shipping Lead Time is 24 Hours
Shipping: Free shipping on orders $75 and up
Voltage: 12
Capacity: 75 Ah (10-hour rate to 1.80 VPC at 25C)
Chemistry: AGM VRLA (long life standby)
Terminal: T6 threaded insert, M6 bolt
Dimensions: 10.2 x 6.61 x 8.43 in (L x W x total H); 260 x 168 x 214 mm
Design Life: 12 years at 25C on float (Leoch)
Features: 1,725 A short circuit, 7.2 mOhm, -15C to 50C discharge, IEC 60896, UL and CE
Group Size: Not published by Leoch; 260 x 168 mm LPL standby case
Leoch LPL12-75 Battery - 12V 75AH AGM Deep Cycle VRLA

Leoch LPL12-75 Battery - 12V 75AH AGM Deep Cycle VRLA

$219.95

Out of stock

Description

Leoch LPL12-75 Battery - 12V 75Ah Long Life Standby AGM

The Leoch LPL12-75 is a 12V 75Ah AGM battery for long-life standby service in UPS, emergency lighting, signaling, station power, security and communications systems. Leoch publishes 75Ah at the 10-hour rate, a T6 threaded terminal for an M6 bolt, 50.0 lbs, and a 12-year design life at 25°C on float service. Its total case size is 260 x 168 x 214 mm. This page is for commercial orders of four or more units.

Warranty

Warranty. Leoch's term for this LPL battery is 36 months, full replacement. The 12-year figure is the manufacturer's design-life rating at 25°C and is not a warranty period. Terms are confirmed in writing with your quote.

Long-Life Standby Construction

75Ah at the 10-hour rate
The published capacity is measured to 1.80 volts per cell at 25°C, giving the project team a defined basis for string sizing.
12-year design life
Leoch rates the LPL12-75 for 12 years at 25°C in float service, separately from the written product warranty.
1725A short-circuit current
The current sheet also lists approximately 7.2 milliohms internal resistance for the fully charged block.
  • T6 threaded insert - a copper alloy terminal sized for M6 hardware, as specified on the current sheet.
  • 260 x 168 mm footprint - a 10.2 x 6.61 inch case with a total height of 8.43 inches.
  • 50.0 lb published weight - the current Leoch value is 22.7 kg, not the older 23 kg listing figure.
  • Sealed AGM construction - a valve-regulated battery that requires no watering during service.
  • Published discharge range - -15°C to 50°C (5°F to 122°F), with application conditions confirmed during quoting.

Technical Specifications

Leoch LPL12-75 Specifications
Part NumberLPL12-75 (also written LPL12 75, LPL 12-75 and LPL1275)
SeriesLeoch LPL long life standby
Battery TypeAbsorbent glass mat (AGM), valve regulated lead acid (VRLA)
Nominal Voltage12V
Nominal Capacity75Ah at the 10-hour rate to 1.80 VPC at 25°C
Terminal TypeT6 threaded insert for M6 bolt
Length260 mm (10.2 inches)
Width168 mm (6.61 inches)
Container Height208 mm (8.19 inches)
Total Height214 mm (8.43 inches)
Weight22.7 kg (50.0 lbs)
Short-Circuit Current1725A
Internal ResistanceApproximately 7.2 milliohms, fully charged, at 25°C
Maximum Charge Current0.3C at 25°C
Float Charge Voltage2.25 to 2.30 V per cell at 25°C
Equalization Charge Voltage2.35 to 2.40 V per cell at 25°C
Operating TemperatureDischarge -15°C to 50°C; charge -20°C to 40°C; storage -15°C to 40°C
Container MaterialABS, UL 94 HB standard; UL 94 V-0 optional
StandardsIEC 60896, EU Battery Directive, UL and CE
Design Life12 years at 25°C on float service (Leoch)
Technical Documentation
Leoch LPL12-75 datasheet, LB-LPL12-75-PD-EN-V3.1 (PDF)

Applications

  • UPS and emergency power - standby strings for uninterruptible power supplies, emergency lighting and EPS systems.
  • Signals and controls - railway and aircraft signaling, electronics and protected control circuits.
  • Station and marine power - documented DC backup where case dimensions and terminal hardware have to match the enclosure.
  • Security and communications - alarm systems, network equipment and communications power held on continuous float.

Ordering and Freight

Sold in a minimum of four units. Send the quantity, delivery ZIP, site-access requirements and requested-by date. A specialist confirms availability, lead time, volume pricing and freight in writing in 24 to 48 hours.

Frequently Asked Questions

Is the LPL12-75 a deep-cycle battery?

The LPL12-75 is a long-life standby battery. Leoch lists UPS, emergency lighting, signaling, station power, security and communications applications. A project that cycles the battery every day should be checked against a cycle-rated product instead of being selected from voltage and amp-hour capacity alone.

Does the LPL12-75 use a T6 or T13 terminal?

The current Leoch datasheet specifies a T6 copper alloy threaded insert for an M6 bolt. The earlier T13 description does not match the current sheet. Confirm the existing connector and lug dimensions before ordering a replacement.

What is the correct LPL12-75 weight?

Leoch publishes 22.7 kg, or 50.0 lbs. Battery weights can vary slightly in production, but 50.0 lbs is the current catalog value used for this page.

Can the LPL12-75 replace another 12V 75Ah battery?

Voltage and capacity are only the starting point. The 260 x 168 x 214 mm total case size, T6 terminal, M6 hardware and the equipment's discharge requirement all have to match. Send the existing part number and installation details with the quote request for a fit check.

Replacing an LPL12-75 string?

Send the existing part number, quantity, enclosure dimensions and requested-by date. A specialist verifies the case and terminal fit, then returns the product, lead time and freight details in one written quote.
